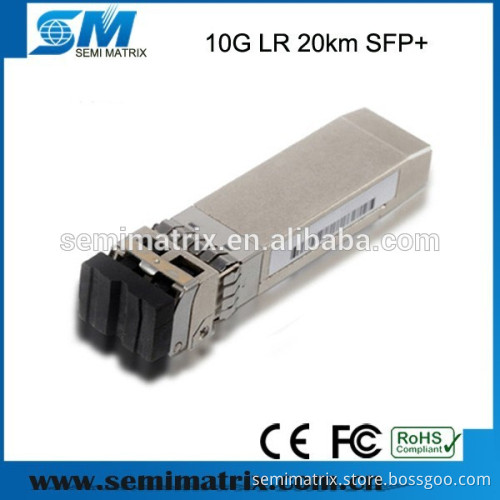

10GB LR 1310nm 20km SFP+ Optical Transceiver

Specifications -10G LR SFP+

- Dual LC/PC Connector

-1310nm DFB Tx, PIN Rx

-up to 20km on SMF

-Hot-Pluggable

10GB LR 1310nm 20km SFP+ Optical Transceiver   Product Description   Semi Matrix SFP+ transceiver are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-SW/SR/LR/ER, 1000 Base-SX Ethernet.     Specifications

10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR	Specifications for 10 Gigabit “SFP+”
1310nm DFB transmitter, PIN photo-detector	2-wire interface for management
Duplex LC connector	Specifications compliant with SFF 8472
Metal enclosure, for lower EMI	Single 3.3V power supply
Electrical interface compliant to SFF-8431	Case operating temperature range:-5°C to 70°C
Applicable for 20km SMF connection

   Applications

10GBASE-LR at 10.3125Gbps
Other optical links

      Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Installation Demo       Packaging & Shipping   Payment & Warranty We offer 3 years warranty to our products.     Ordering Information

Part number	Package Style	Data Rate	Distance	LD	PD
10G-SFP-SR	SFP+	10Gb/s	300m	850nm VSCEL	PIN
10G-SFP-2C	SFP+	10Gb/s	2km	1310nm FP	PIN
10G-SFP-LRM	SFP+	10Gb/s	220m OM1	1310nm FP	PIN
10G-SFP-LR-10	SFP+	10Gb/s	10km	1310nm DFB	PIN
10G-SFP-LR-20	SFP+	10Gb/s	20km	Uncooled DFB	PIN
10G-SFP-ER-40-31	SFP+	10Gb/s	40km	1310nm DFB	APD
10G-SFP-ER-40-55	SFP+	10Gb/s	40km	1550nm Cooled EML	PIN
10G-SFP-ZR-80	SFP+	10Gb/s	80km	1550nm Cooled EML	APD
