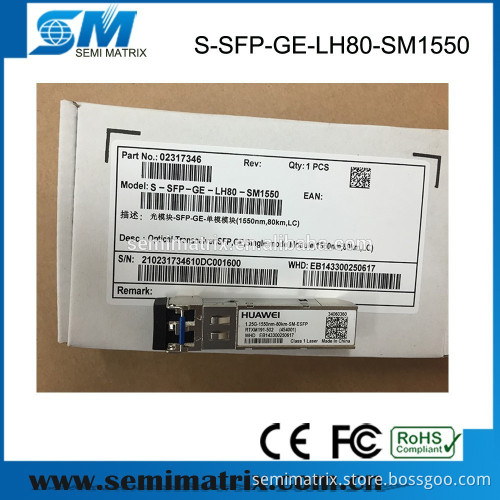

Huawei SFP optical module GE 1550nm 80km SMF S-SFP-GE-LH80-SM1550

Huawei SFP optical module  GE 1550nm 80km SMF   S-SFP-GE-LH80-SM1550    Product Description     Specifications 1.   Attributes of    GE  optical modules

Model	Standard	Fiber Type	Transmission Distance (km)	Operating Temperature
eSFP-GE-SX-MM850	1000base-SX	Fiber mode: multimode	≤ 0.22	0°C to 70°C
		Modal Bandwidth: 160 MHz*km
		Core diameter: 62.5/125 μm
		Connector type: LC
		Fiber mode: multimode (OM1)	≤ 0.275
		Connector type: LC
		Fiber mode: multimode	≤ 0.5
		Modal Bandwidth: 400 MHz*km
		Core diameter: 50/125 μm
		Connector type: LC
		Fiber mode: multimode (OM2)	≤ 0.55
		Connector type: LC
		Fiber mode: multimode (OM3)	≤ 1
		Connector type: LC
SFP-GE-LX-SM1310	1000base-LX/LH	Fiber mode: single-mode	≤ 10
S-SFP-GE-LH40-SM1310		Connector type: LC	≤ 40
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550	1000base-ZX		≤ 80
eSFP-GE-ZX100-SM1550			≤ 100
SFP-GE-LX-SM1310-BIDI	1000base-BX		≤ 10
(Single-fiber bidirectional optical module)
SFP-GE-LX-SM1490-BIDI
(Single-fiber bidirectional optical module)
LE2MGSC40DE0			≤ 40
(Single-fiber bidirectional optical module)
LE2MGSC40ED0
(Single-fiber bidirectional optical module)
SFP-GE-BXU1-SC	1000base-BX	Fiber mode: single-mode	≤ 10
(Single-fiber bidirectional optical module)		Connector type: SC

    2.   Optical parameters of GE  optical modules

Model	Center Wavelength (nm)	Transmit Power (dBm)	Receiver Sensitivity (dBm)	Overload Optical Power (dBm)	Extinction Ratio (dB)
eSFP-GE-SX-MM850	850	-9.5 to -2.5	≤ -17.0	0	> 9
SFP-GE-LX-SM1310	1310	-9.0 to -3.0	≤ -20.0	-3	> 9
S-SFP-GE-LH40-SM1310	1310	-5.0 to 0	≤ -23	-3	> 9
S-SFP-GE-LH40-SM1550	1550	-5.0 to 0	≤ -22	-3	> 8.5
S-SFP-GE-LH80-SM1550	1550	-2.0 to 5.0	≤ -23.0	-3	> 9
eSFP-GE-ZX100-SM1550	1550	0 to 5	≤ -30.0	-9	> 9
SFP-GE-LX-SM1310-BIDI	RX1490/TX1310	-9.0 to -3.0	≤ -19.5	-3	> 6
(Single-fiber bidirectional optical module)
SFP-GE-LX-SM1490-BIDI	RX1310/TX1490	-9.0 to -3.0	≤ -19.5	-3	> 6
(Single-fiber bidirectional optical module)
LE2MGSC40DE0	RX1490/TX1310	-2.0 to 3.0	≤ -23	-3	> 9
(Single-fiber bidirectional optical module)
LE2MGSC40ED0	RX1310/TX1490	-2.0 to 3.0	≤ -23	-3	> 9
(Single-fiber bidirectional optical module)
SFP-GE-BXU1-SC	RX1310/TX1490	-9.0 to -3.0	≤ -21	-3	> 9
(Single-fiber bidirectional optical module)

       Detailed Images                 Payment & Warranty We offer 3 years warranty to our products.       Ordering Information

Description	Part Number
XFP-10G-  SR 850nm 0.3km LC	XFP-SX-MM850
XFP-10G- SMF 1310nm,10km,LC)	XFP-STM64-LX-SM1310
XFP-10G-SMF (1550nm,40km,LC)	XFP-STM64-LH40-SM1550
XFP-10G-SMF (1550nm,80km,LC)	XFP-STM64-SM1550-80km
SFP-GE copper (100m,RJ45)	SFP-1000BaseT
ESFP-GE-MMF(850nm,0.5km,LC)	eSFP-GE-SX-MM850
SFP-GE- SMF (1310nm,10km,LC)	SFP-GE-LX-SM1310
eSFP-GE- SMF (1310nm,40km,LC)	S-SFP-GE-LH40-SM1310
eSFP-GE- SMF (1550nm,40km,LC)	S-SFP-GE-LH40-SM1550
eSFP-GE- SMF (1550nm,80km,LC)	S-SFP-GE-LH80-SM1550
ESFP-GE- SMF (1550nm,100km,LC)	eSFP-GE-ZX100-SM1550
SFP-100M/155M- MMF (1310nm,2km,LC)	SFP-FE-SX-MM1310
ESFP-100M/155M- SMF (1310nm,15km,LC)	eSFP-FE-LX-SM1310
eSFP-FE- SMF (1310nm,40km,LC)	S-SFP-FE-LH40-SM1310
eSFP-FE- SMF (1550nm,80km,LC)	S-SFP-FE-LH80-SM1550
SFP-GE-BIDI SMF (TX1490/RX1310,10km,LC)	SFP-GE-LX-SM1490-BIDI
SFP-GE-BIDI SMF (TX1310/RX1490,10km,LC)	SFP-GE-LX-SM1310-BIDI
SFP-FE-BIDI SMF (TX1310/RX1550,15km,LC)	SFP-FE-LX-SM1310-BIDI
SFP-FE-BIDI SMF (TX1550/RX1310,15km,LC)	SFP-FE-LX-SM1550-BIDI
SFP+-10G- MMF (850nm,0.3km,LC)	OMXD30000
SFP+-10G- SMF (1310nm,10km,LC)	OSX010000
SFP+-10G- SMF (1550nm,40km,LC)	OSX040N01
