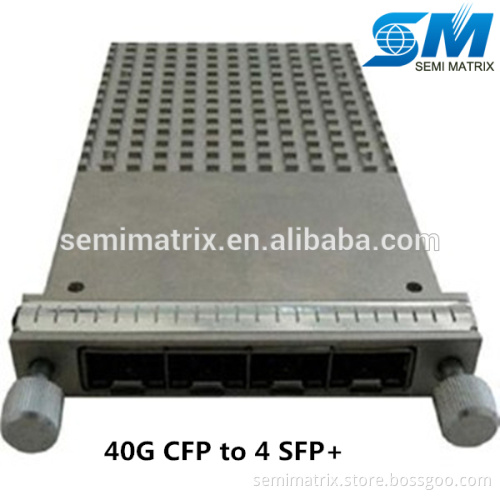

40G CFP to SFP+ Converter module

Specifications -CFP to SFP+ Converter

-40G Rate base

-Hot-Pluggable CFP Footprint

- CFP MSA compliant

-XLAUI electrical interface

100G 40KM ER4 CFP Optical Transceiver module   Product Description Overview   The 40GBASE CFP modules offer customers 40 Gigabit Ethernet connectivity options for data center networking, enterprise core aggregation, and service provider transport applications.
Specifications   1. Converts CFP to 4 channels SFP+ Modules
2. each SFP+ Port Supports maximum power dissipation up to 2W
3. CFP Converter Power Dissipation typical <3W ( Excluding SFP+ modules)
4. Hot-Pluggable CFP Footprint
5. Class 1 FDA and IEC60825-1 Laser Safety Compliant
6. Operating Case Temperature Standard: 0 ~ +70C
7. Compliant with CFP MSA Specification
8. CFP MSA MDIO interface with integrated Digital Diagnostic Monitoring
9. XLAUI electrical interface
10. Supports 4 x 8.5G, 10G (optional confirm with us)   Applications   *40G base ethernet      Customized Service Semi Matrix provides OEM, ODM and other Customized services to the customers who required.   We supply the suitable Optical Solution according to your requirements, and design  the label and packaging as you need.   Welcome any inquiry of customized products and service.     Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Detailed Images          Ordering Information

Part Number	Data Rate	Reach	Temperature
			(Com)
40GCFP-SR4	40G	100m-OM3 150M-OM4	0~70
40GCFP-LR4	40G	10km	0~70
40GCFP-ER4	40G	40KM	0-70
100GCFP-SR10	100G	100M-OM3 150M-OM4	0-70
100GCFP-LR4	100G	10Km	0~70
100GCFP-ER4	100G	40KM	0-70
40GCFP-4SFP+	40G	10KM- 40KM	0-70

     Packaging & Shipping       Payment & Warranty We offer 3 year warranty to our products.
