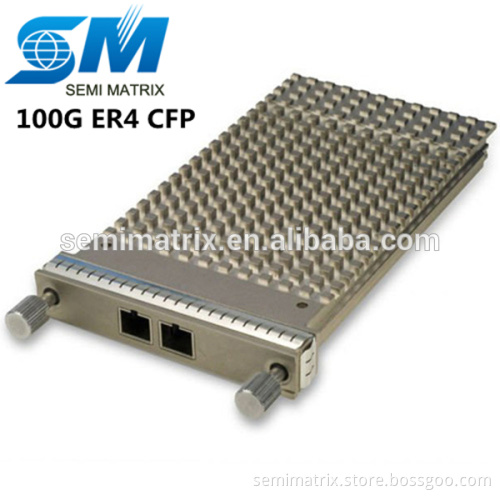

100G 40km ER4 CFP Optical Transceiver module

Specifications -100G ER4 CFP

- CFP MSA compliant

-1310 band (LAN-WDM)

-up to 40km transmission

- duplex SC/PC onnector

100G 40KM ER4 CFP Optical Transceiver module   Product Description Overview   The 100GBASE CFP modules offer customers 100 Gigabit Ethernet connectivity options for data center networking, enterprise core aggregation, and service provider transport applications.
Specifications
1. CFP MSA package with duplex SC/PC connector(straight/angled)
2. Integrated heat sink optional   3. Up to 10km transmission on SMF
4. EML laser and PIN receiver   7. High speed I/O electrical interface (CAUI)   8. MDIO interface with integrated digital diagnostic monitoring   9. Single +3.3V power supply   10 .Maximum power consumption 24 W   11. Operating case temperature: 0°C to +70°C       Applications   ****** High-speed core router interlinks and data center aggregation******     Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Detailed Images          Ordering Information

Part Number	Data Rate	Reach	Temperature
			(Com)
40GCFP-SR4	40G	100m-OM3 150M-OM4	0~70
40GCFP-LR4	40G	10km	0~70
40GCFP-ER4	40G	40KM	0-70
100GCFP-SR10	100G	100M-OM3 150M-OM4	0-70
100GCFP-LR4	100G	10Km	0~70
100GCFP-ER4	100G	40KM	0-70

     Packaging & Shipping       Payment & Warranty We offer 3 year warranty to our products.
