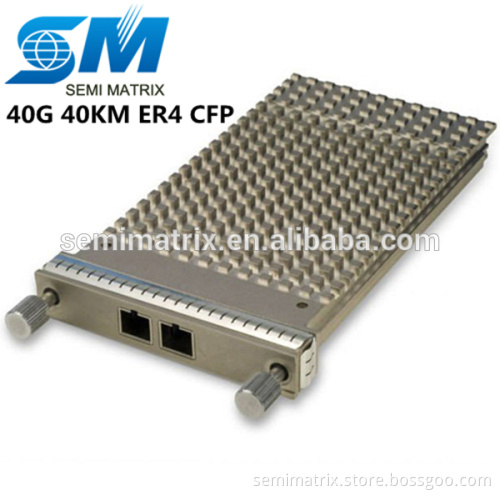

40G 40KM ER4 CFP Optical Transceiver module

Specifications -40G ER4 CFP

- CFP MSA compliant

-40GBASE-ER4 links

-40Km transmission

- duplex SC onnectors

40G 40KM ER4 CFP Optical Transceiver module   Product Description Overview   The 40GBASE CFP transceiver modules are hot-swappable input/output devices that plug into a 40 Gigabit Ethernet CFP port of a  switch or router.   They offer customers versatile 40 Gigabit Ethernet connectivity options in core and distribution layers of data center, enterprise, and service provider networks.
Specifications     1. CFP MSA compliant
2. Compliant to IEEE 802.3ba specification for 40GBASE-ER4 links
3. Low profile hot Z-pluggable parallel transceiver (pluggable into CFP cage through front panel of system equipment)
4. MDIO digital diagnostic and control capabilities; compliant to CFP MSA Management Interface

5. Aggregate Bandwidth of >40 Gbps

6. TX input and RX output CDR retiming

7. Up to 11.2 Gbps per channel bandwidth, OTU3 compliant

8. Independent channel timing

9. QSFP inter-operable   10. Next Generation DFB/APD array optical sub-assembly technology    11. Single +3.3V power supply through 148 pin electrical connector    12. Power class 1 (<8W max)    13. CML compatible electrical I/O    14. Capable of over 40Km transmission on  G.652 single-mode Fiber     Applications     Data center aggregation and router interfaces     Customized Service Semi Matrix provides OEM, ODM and other Customized services to the customers who required.   We supply the suitable Optical Solution according to your requirements, and design  the label and packaging as you need.   Welcome any inquiry of customized products and service.     Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.       Detailed Images           Ordering Information

Part Number	Data Rate	Reach	Temperature
			(Com)
40GCFP-SR4	40G	100m-OM3 150M-OM4	0~70
40GCFP-LR4	40G	10km	0~70
40GCFP-ER4	40G	40KM	0-70
100GCFP-SR10	100G	100M-OM3 150M-OM4	0-70
100GCFP-LR4	100G	10Km	0~70
100GCFP-ER4	100G	40KM	0-70

     Packaging & Shipping       Payment & Warranty We offer 3 year warranty to our products.
