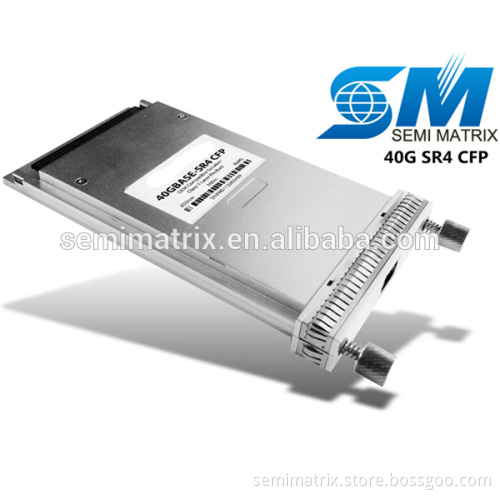

40G SR4 CFP Optical Transceiver module
- Delivery Time:
- 1 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Specifications -40G Single port SR4 CFP
- CFP MSA compliant
-40GBASE-SR4 links
-150m transmission
- CML compatible electrical I/O
40G SR4 CFP Optical Transceiver module Product Description Overview The 40GBASE CFP transceiver modules are hot-swappable input/output devices that plug into a 40 Gigabit Ethernet CFP port of a switch or router. They offer customers versatile 40 Gigabit Ethernet connectivity options in core and distribution layers of data center, enterprise, and service provider networks.
Specifications 1. CFP MSA compliant
2. Compliant to IEEE 802.3ba specification for 40GBASE-SR4 links
3. Low profile hot Z-pluggable parallel transceiver (pluggable into CFP cage through front panel of system equipment)
4. MDIO digital diagnostic and control capabilities; compliant to CFP MSA Management Interface
5. Aggregate Bandwidth of >40 Gbps
6. TX input and RX output CDR retiming
7. Up to 11.2 Gbps per channel bandwidth, OTU3 compliant
8. Independent channel timing
9. QSFP inter-operable 10. Next Generation VCSEL/PD array optical sub-assembly technology 11. Single +3.3V power supply through 148 pin electrical connector 12. Power class 1 (<8W max) 13. CML compatible electrical I/O 14. Capable of over 100m transmission on high bandwidth 50µm multi-mode fiber cables Applications 1. Data center aggregation and router interfaces 2. Test equipment Customized Service Semi Matrix provides OEM, ODM and other Customized services to the customers who required. We supply the suitable Optical Solution according to your requirements, and design the label and packaging as you need. Welcome any inquiry of customized products and service. Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Detailed Images
Ordering Information
Packaging & Shipping
Payment & Warranty We offer 3 year warranty to our products.
- CFP MSA compliant
-40GBASE-SR4 links
-150m transmission
- CML compatible electrical I/O
40G SR4 CFP Optical Transceiver module Product Description Overview The 40GBASE CFP transceiver modules are hot-swappable input/output devices that plug into a 40 Gigabit Ethernet CFP port of a switch or router. They offer customers versatile 40 Gigabit Ethernet connectivity options in core and distribution layers of data center, enterprise, and service provider networks.
Specifications 1. CFP MSA compliant
2. Compliant to IEEE 802.3ba specification for 40GBASE-SR4 links
3. Low profile hot Z-pluggable parallel transceiver (pluggable into CFP cage through front panel of system equipment)
4. MDIO digital diagnostic and control capabilities; compliant to CFP MSA Management Interface
5. Aggregate Bandwidth of >40 Gbps
6. TX input and RX output CDR retiming
7. Up to 11.2 Gbps per channel bandwidth, OTU3 compliant
8. Independent channel timing
9. QSFP inter-operable 10. Next Generation VCSEL/PD array optical sub-assembly technology 11. Single +3.3V power supply through 148 pin electrical connector 12. Power class 1 (<8W max) 13. CML compatible electrical I/O 14. Capable of over 100m transmission on high bandwidth 50µm multi-mode fiber cables Applications 1. Data center aggregation and router interfaces 2. Test equipment Customized Service Semi Matrix provides OEM, ODM and other Customized services to the customers who required. We supply the suitable Optical Solution according to your requirements, and design the label and packaging as you need. Welcome any inquiry of customized products and service. Compatibility Our Optical Transceiver module can work compatible with all brands, Please inform the brand name of your system when you make the order. Thanks.
Detailed Images
Ordering Information | Part Number | Data Rate | Reach | Temperature |
| (Com) | |||
| 40GCFP-SR4 | 40G | 100m-OM3 150M-OM4 | 0~70 |
| 40GCFP-LR4 | 40G | 10km | 0~70 |
| 100GCFP-SR10 | 100G | 100M-OM3 150M-OM4 | |
| 100GCFP-LR4 | 100G | 10Km | 0~70 |
| 100GCFP-ER4 | 100G | 40KM |
Payment & Warranty We offer 3 year warranty to our products.
