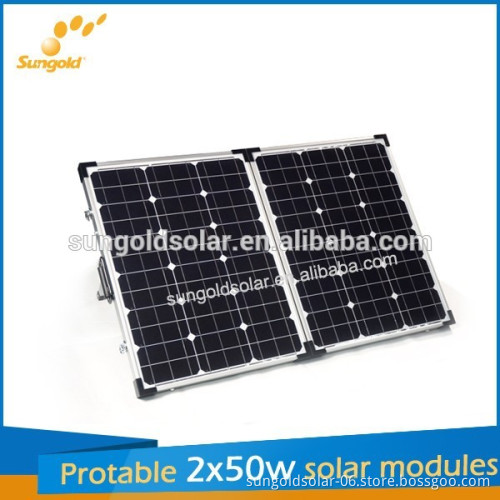

100w folding solar panels for RV , home use

 Customized designed 100w folding solar panels for RV , home use     Features  1.High reliability with guaranteed -3% to +5% power output tolerance, ensuring return on investment
2.High conversion efficiency based on leading innovative photovoltaic technologies
3.Withstands high wind-pressure and snow load, and extreme temperature variations
4.Attractive appearanceUnique frame design, high mechanical strength, and easy Installation   Material
1.Solar cell-conversion efficiency of solar cell: 24%-17%
2.Front glass-3.2mm, high transmission, low iron, tempered glass
3.EVA-excellent anti-aging resistance
4.TPT-hot seal made of flame resistance
5.Flame-reinfored anodixed aluminum flame
6.Junction box-Ip54 rated and Ip65 rated, high quality, with diode protection
  Applications
Charge RV/car/boat batteries – connect the clips directly to the battery and use the power from the vehicle for as long as you like. Your vehicle will become solar powered.

Electrical Characteristics
Model	SGM-2F-100W-18V
Cells size (mm):	156*41.6
Cells per module:	36pcs
material	monocrystalline Silicon
Module size (mm):	505*650*30mm
Power tolerance:	+/-3%
Nominal peak power(WP):	100w
Nominal voltage(V):	17.8
Nominal current (A):	4.49
NOCT:	45+/-2degree
Voltage temperature coefficient:	-0.33%/degree
Current temperature coefficient:	+0.05%/degree
Open circuit voltage (Voc):	22.3
Short cirsuit current(Isc):	4.85
Conversion efficiency:	18.30%
Operating temperature:	-40 to+85degree
Max system voltage:	1000V DC
Surface Maximum Load Capacity	60m/s(200kg/sq. m)

  Product disply
