ONN-J09 dust proof led workshop lighting fixtures/cleanroom led

ONN-J09 dust proof led workshop lighting fixtures/cleanroom led

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

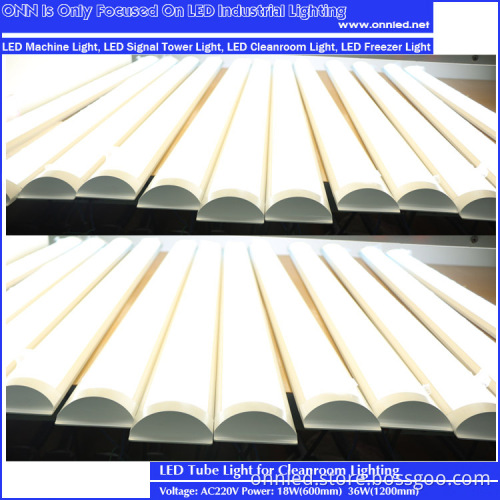

ONN-J09 dust proof led workshop lighting fixtures/cleanroom led

Application : Purified Space: dust-free plant , electronic factory , hospital, office lighting , pharmaceutical workshop and other places' energy-efficient lighting.

Product features: 1,Unique patent design. 2,High brightness, low power cost. 3,Good heat dissipation, long life span. 4. Dust-proof, easy for maintence.

model

Nominal Voltage

Voltage Rang

CCT

ONN-J09-C1

AC220V (50/60Hz)

AC100-240V (50/60Hz)

5500-6000K

ONN-J09-C2

AC220V (50/60Hz)

AC100-240V (50/60Hz)

4000-4500K

Wire Length:

around 0.55M(standard)

Installation:

surface mounted

Lamp Length:

600mm

1200mm

Power Cost:

18W

36W

Input Current(Max):

(220V)150mA

(220V)300mA

Luminous Flux:

1530Lm

3060Lm

Protection:	IP50	CCT:	5500-6000K	4000-4500K
Efficiency:	85-95Lm/W	CRI:	82Ra
LED Driver:	non-isolated	PF:	0.5
Surface temperature:	60	Beam Angle:	120
Life:	50 000H

Brand	ONN	Power	18/36W
Light source	SMD 2835	Installation	Fixed by 2 screws
Lifespan of light source	Above 50000 hours	Length(mm)	600mm/1200mm
Viewangle	120°	Voltage	AC100-240V
Luminous	85-95 Lm/W	IP grade	IP50

Working Conditions:

Ambient Temperature:	-20~45℃
Storage Temperatue:	-40~70℃
Ambient Humidity:	10~90%
Storage Humidity:	10~90%

Packing:

Package Material	cartons
Lamp Length(MM)	600	1200
Lamp weight (Kg)	0.33	0.64
Weight/CTN (Kg)	5	9
PCS/CTN	12	12
Carton Size(LWH)mm	635×230×205	1235×230×205

Installation 1,Holing:Drill 4 holes of diameter 3.0, and fix metal clips with screws to the holes. 2,Fix the lamp into the clips.

warranty 1. 24months free warranty for quality failure. 2. If following facts, warranty will be limited: (1)Date Changed. (2)User’s improper use or damage. (3)Outlook damage or shortage for lamp or package is not within warranty. (4)Failure caused by improper use or setting. (5)Open or maintenance not by us or our agents, or without our permit. (6)Failure caused by act of god. (7)Other causes not due to quality problems. 3,If exceeds warranty time, it will be not free any more for warranty. Related products:

Company information Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We are now focused on led machine light, led warning light, led clean room light and led freezer light With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely exported to the world with fast increase year by year. We have cooperated with big customers from Germany, France, America,Japan, South Korea, Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world. We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market
