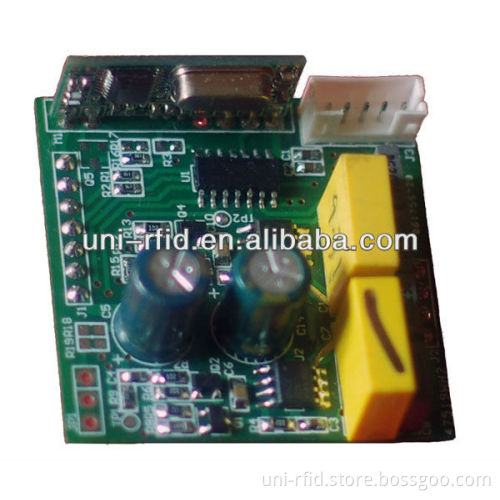

PR15 RF Module wireless module used for PKE

The PR15 is a wireless module which can send data to about 2 meters. It can drive 2 antennas.   We design it for passive keyless entry system. But it can also be used for door lock, toys and other applications.   The module should be used with transponder together. When transponder come to about 2 meters, the module will identify it automatically and send a signal to let base know it.    It is a RFID module which used to catch the smart key, identify the code of smart key. The module has small size and very low power consuming.   The module integrated the mainly function of PKE system. Auto-sensing the smart key stable and reliable. It also used hoping code to keep it safety.       Specifications:   * Small size * Card type design and easy to carry. * Very low power consuming. * Works stable and reliable, past the test at USA *  Has been OEM for foreign company and entered USA market already. *  Anti-collision technology for two smart cards.

Basic parameters
Radio Parameters
Frequency	134Khz/433Mhz
RFID Chip Supplier	USA Texas Instrument
Receiver Module
Model	PR
Input voltage	+12V and +5V
Operate current	20mA
Module Size	40mm*40mm*16mm
Smart Card
Model	TRP50
Reach distance	1.5meters
Security	Hoping code
Size	66*48*6.5mm
Battery type	2032
Battery last	1year
Environmental parameters
Storage Temp	-40'C ~ +75'C
Storage humidity	<70%
Operate Temp	-20'C ~ +65'C
Operate humidity	<80%
