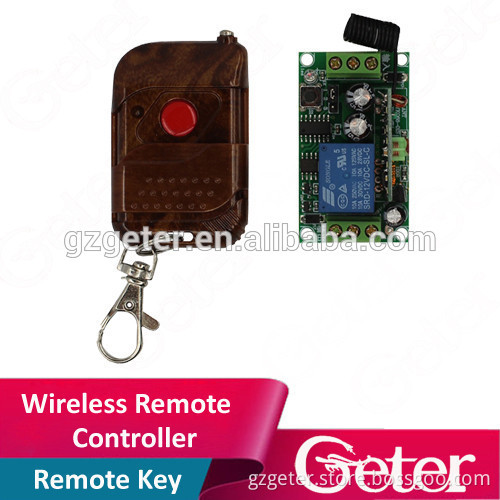

wireless Remote Control - Access control system

Specification:   Dimensions: 66Lx45Wx30H(mm)
Input: 12VDC (24VDC by Optional)
Current: 8mA
Contact Output: NO\NC\COM
Transmitting Freq: 433.92MHZ
Transmitting Power: 10mW
Suitable for: access control
Transmitting Distance: ≥70m(in open area)
Finished for Shell: Plastic, Abrasion Resistant
Capable of to 30 Transmitter
Weight: 0.2kg
Standard Packing: 140pcs per carton   Latch type: Press the button, the relay on till you press another one. Just like the wind-speed buttons of electronic-fan, press a wind-speed button, the electronic-fan running a certain speed till you press another buttons;
Non-Latch type: Press the button, the relay on till you release it. Just like the button of Klaxon, if you press it, Klaxon on, and will turn off once you release it;
Auto-Latch type: Press the button, the relay on till you press it again. Just like the power key of TV remote controller, when you press it, TV on, press again, TV off

	Press------>	Release----->	Press same button again--------------->	Press another button
Latch	Relay on	Relay on	Relay on	Relay off
Non-Latch	Relay on	Relay off	Relay on	Relay off, suppose the button released
Auto-Latch	Relay on	Relay on	Relay off	Relay keep previous status
