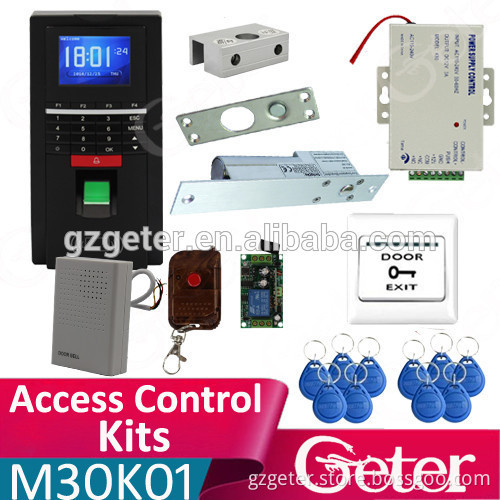

Fingerprint Door Access Control System Kits DIY Package for without frame Glass Door




Model	M30
LCD Screen	2.4 inch TFT (320*240) Color Screen
Fingerprint Sensor Resolution	500DPI (Optical sensor)
Hardware Platform	R ZDC2911
Algorithm Version	R RSFv5.1
CPU	ARM926EJ CPU, Running Frequency: 200MHZ
Communication	TCP/IP,   RS485, USB Memory Disk
User Capacity	2,000
Records Capacity	100,000
Software OS	XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)
Identification Time	< 1 S
Authentication Method	Fingerprint/ RFID Card (125Khz)(could customize  MF card)/Password
Language	English (Spanish/Arabic could be customized )
Bell	Built-in timing bell(can connect to external timing   bell)
Access Control Interface	Wiegand26/34, Door Lock, Siren, Release Button(can   connect 2 groups), Doorbell, Door Sensor
Professional Access Function	Open door by multilevel verification, anti-pass back
Power	DC 12V/2A
FRR	<1%
FAR	<0.00001%
Operating Mode	Off-line/On-line
Authentication Mode	1:1, 1:N
Operating environment	Operating Temp: 0°C-50°C, Humidity:80%
Certificates	CE, Type Inspection Report of Chinese Police Product

  Product Overviews   The power to adopt import electronic components, the use of international advanced level of technology, its anti-interference ability, stable and reliable. The scope of application of the power applied to a variety of building intercom, access a variety of import and export controls, particularly applicable to a variety of electric locking drive. *   Can reduce the load of access controller, save wiring to reduce the hidden trouble *   Set NC / NO outputs, can control various types of electric locks *   Based delay control circuit, lock time can be in 0-15 seconds *   Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line of *   The circuit board has remote control port. *   Operative device: E/M Lock, Access Controller, Exit Push Button *    Input Voltage: AC 110~220V  50~60Hz *    Output Voltage: DC 12V 3A *    Outer Dimensions: 117 x 68 x 32mm

Lock body size	170x49x43(mm)
lock holder size	170x49x30(mm)
voltage	12Vdc
Current current	900MA
Operating current	250MA
Applicable temperature	-10~+55°C(14-131F)
Suitable Humidity	0~90%(non-condensing)
Material	aluminium alloy
Quality guarantee	1 year
Authority certification	CE approved


Color: White Material: fireproof resin Size (cm): 8.6(L) x 8.6(W) Current: 3A, 36V DC Contact output: NC\COM Applied temperature: -10 degree~55 degree Applied humidity: 0%~95% (relative humidity) White fireproof resin shell, safe and durable Looks simple, comfortable and beautiful Undergoing 50,000 times continuous clicking test, very durable Good to touch, easy to operate and us
Activates electric strike, magnetic lock or other electric lock via access control keypad Works with most electronics access control keypads, door phones with access control keypads Flush mounting The door control switch button is widely used in the entrance guard system, which has gone through 50,000 times continuous clicking tests, very durable   Communication             Packaging & Shipping     Company Information
