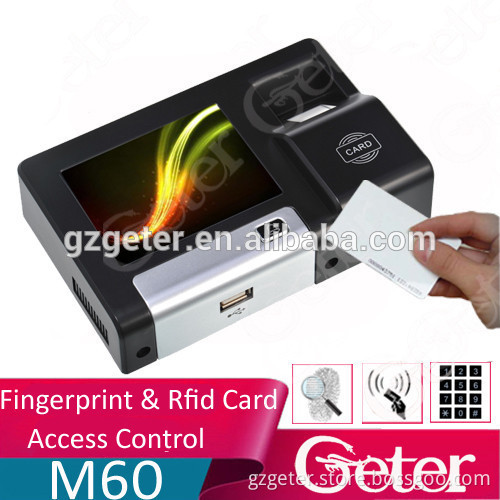

Energy saving 3.5 inch TFT color touch screen Fingerprint Access Control JTL M60

Product Description   Introduction  M60 is with 3.5 inch TFT color screen and 2 in 1 device for access control and time attendance, touch screen to make the device more fashion and easy to be operated. Built-in Linux system, super capacity to store 5,000 fingerprint enrollments (can upgrade to 10,000) and 100,000 records.
  Features It’s with the most advanced fingerprint arithmetic in the world, Automatically analyze the tiny difference of the latest fingerprints vs. the precious fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition.. High recognition ability for injured and peeled fingers, the identification time is less than 1 second. Built-in ID card reader (optional for IC card), validation by card, fingerprint, password or their combination randomly, more flexible and secure for access control. Standalone , U flash drive or TCP/IP connection for all kind of setting to the device directly Energy saving 3.5 inch TFT color touch screen TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & sharing freely With multi-level validation, anti-pass back ect high-end functions of access control Authentication modes are 1:1 and 1:N, user can register 3 fingers, max fingerprint capacity is 5,000 enrollment and 100,000 record Support English, Spanish, Arabic ect different languages.     Specifications:

Model	M60
LCD Screen	3.5 inch TFT (320*240) Color Screen & Touch Screen
Fingerprint Sensor Resolution	500DPI (Optical sensor)
Hardware Platform	ZDC2911
Algorithm Version	RSFv5.1
CPU	ARM926EJ CPU, Running Frequency: 200MHZ
Communication	TCP/IP,   RS485, USB Memory Disk
User Capacity	5,000
Records Capacity	100,000
Software OS	XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)
Identification Time	< 1 S
Authentication Method	Fingerprint/ RFID Card (125Khz)(could customize Mifare card)/Password
Language	Chinese / English / Spanish/Portuguese/ German (could customize others)
Bell	Built-in timing bell(can connect to external timing bell)
Access Control Interface	Wiegand26/34, Door Lock, Siren, Release Button(can connect 2 groups), Doorbell, Door Sensor
Professional Access Function	Open door by multilevel verification
Power	DC 12V/1A
FRR	<1%
FAR	<0.00001%
Operating Mode	Off-line/On-line
Authentication Mode	1:1, 1:N
Operating environment	Operating Temp: 0°C-50°C, Humidity:80%
Certificates	CE, ,FCC,UL ,Type Inspection Report of Chinese Police Product
Dimension(L*W*H)mm	Terminal – 144*96*41mm  Package – 278*193*100
Weight	Terminal - 0.3 Kg    Package – 0.67Kg

    Product Overviews       Communication       Free software     Packaging & Shipping

Qty/Box	Size/ Box	Weigth/Box
1 PC	15*14*6CM	0.45 KG
Qty/Carton	Size/Carton	Weight/Carton
10PCS	31*30*30CM	9.5 KG
