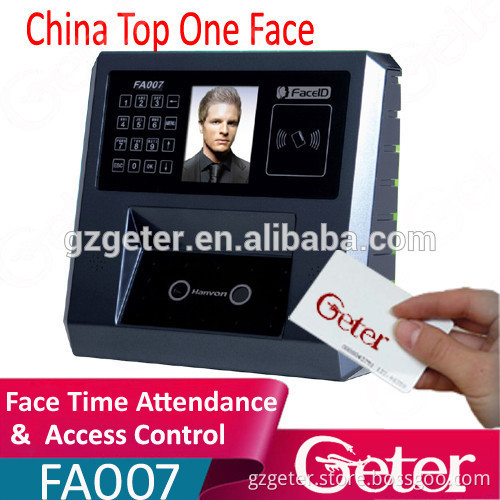

Hanvon FA007 Professional Face Access Control

Product Description   Face ID is industry first embedded facial recognition system with leading “Dual Sensor™” Facial Recognition Algorithm, which designed for application like physical access control and time attendance, identity management and so on.
Access Control FA007
FA007 is an embedded facial recognition system with the latest version of leading “Dual Sensor™” Algorithm Ver 3.0, which applied for high level access control application. Its classic slope and industrial design is good for market like Government, Civil ID. It is also good for commercial market like Enterprise, Bank, building automation and so on.   Features:   Embedded facial recognition system:
• Adopt US advanced DSP technology keeps processing and matching right on the device

Accurate and Fast Identification:
• Industrial Leading “Dual Sensor™” Facial Recognition Algorithm, FAR<0.001%, FRR<1%
• 1:Many up to 500 users less than 1 second

Multi Authentication
• System can work with Face, ID+Face,Card+Face,Card,Card+Photo

Large user and log capacity:
• User capacity from 500 to 1400
• Over 150,000 logs and security image 70,000

User friendly design
• 3.5 inch color screen for face positioning
• Contactless authentication for the ultimate in hygienic
• Voice prompt

Flexible interfaces and Data Management
• Standard TCP/IP and USB Host
• Built in relay
• Wiegand output makes system compatible with different access control panel
• User self-inquiry,Date Auto-uploading to defined server

Reliable performance under different environments:
• Different source-light Technology
• The system can work in different light condition even in the dark

High Usability and Security
• Failure to enroll and acquire rate is less than 0.0001%,everyone can use this technology
• Incident trackable for security with photo
• More data points matched than fingerprint enable more accurate

  Technical Specifications
Working Temperature

	FA007
Processor	TI DM CPU 600MHz
User Capacity	500 Users 1:N Matching, 30,000 Users 1:1 Matching
Record Capacity	150,000 Records
Recognition Algorithm	Dual Sensor TM V3.0
Sensor	Specialized dual sensor
Card Recognition	Standard EM,Optional Mifare
Authentication Method	Face,ID+Face,Card+Face,Card,Card+Photo
Authentication Speed	Less than 1 Second (500 Users) on 1:N Matching
Communication Method	Standard TCP/IP USB Host
Attendance	Daylight saving
Date	User-inquiry,Auto-uploading
Security	2GB SD Card 70,000 Images
Security	Tamper Alarm,Rejection Alarm
Access Control	Built-in relay, Time zone
Wiegand	User-defined format output
Keyboard	4*4 Touch Keypad
LCD	3.5 inch TFT Color Screen, 65,000 Bright Color, 320*240 Resolution
Power	12V DC
Working Distance	30cm-80cm
Working Temperature	0℃-40℃
Working Humidity	20% - 80%
Size	233*74*227mm
Weight	905g
Certification	CE FCC Class A ROHS Processor

    Product Overviews         Communication         Free software     Packaging & Shipping

Qty/Box	Size/ Box	Weigth/Box
1 PC	25*17*7CM	0.76 KG
Qty/Carton	Size/Carton	Weight/Carton
10PCS	38*35*28CM	8 KG
