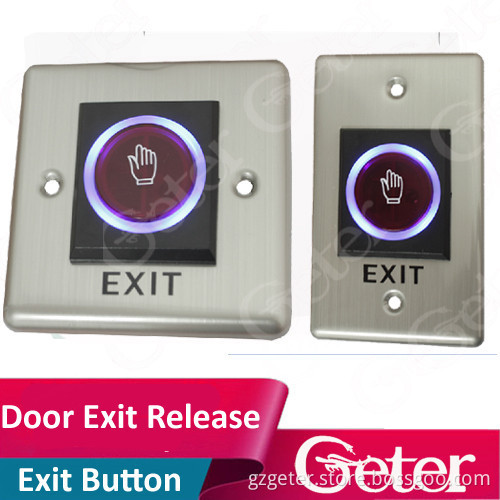

no touch exit button infrared push button swithes for access control

Get Latest Price

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Features : · Optical / Infrared Technology
· IP-55 Ingress Protection / SUS 304 Stainless steel Plate
· User friendly (Healthy protection)
·· Free from contagious diseases spread
·· Detection range: 0.1 ~ 10 cm
· Application: Gate/Door/Exit/Automation control
··High capacity of relay dry contact (3A/AC120V,DC30V)
· Normally open/Normally close/Common relay output
· Twin led indicators for sensor standby or approached :
(1) Sensor Standby: BLUE LED ON
(2) Visitors whom approached to the sensor in 10 cm : RED LED ON Specifications:
· Contact Rating: 3A/AC120V,DC30V
· Input Volt.: DC 12V
· Simple and clear for operation.
· Operation temperature range -20C -55C
· Life: 100,000 Times
· Durable stainless steel plate
· Dimension: 115x70x29(mm)
· Weight: 85g Image:
