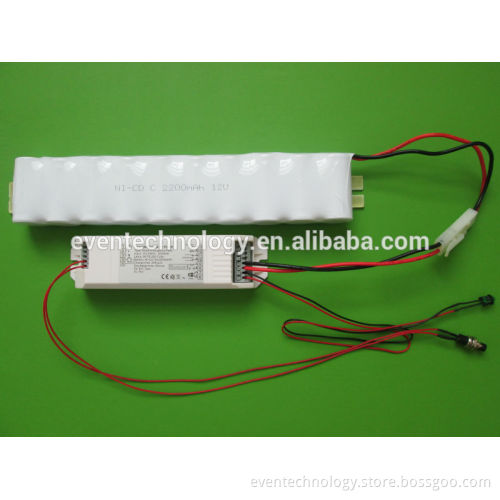

Emergency Inverter 12v with Nicd Battery Pack/12V Ni-CD battery pack for led tube,led downlight,led panel

Emergency Inverter 12v with Nicd Battery Pack/12V Ni-CD battery pack for led tube,led downlight,led panel         Product Description
It's better let us know more parameter about your LED Products as following ;   Wattage : 36W (How much power of your LED products ? )   Drive Current : 1200mA ( How much about your driver current ? )   Voltage DC : 27V ( How much of your LEDs' output voltage ? )   LED Type : LED Panel (What type of your led products ? )   LED Product's parameter :       Emergency Testing :

Product name	Emergency Conversion Kit
Input voltage	85-265/90~240V/100-277V AC, 50/60HZ (More voltage will be option)
Indicator	Yes
Test button	Yes
Emergency Duration	1-3hrs
Battery protection	Yes
Operation temperature	-10°C~50°C
Highest Surface Temperature	70°C
Battery	10 * 4Ah Ni-CD Batteries (More battery,pls contact with supplier)
Brightness	100%
Charging	24h after commissioning
Maximum power LED	Below 60w
Voltage DC	12-48V
Emergency / main-power emergency	Yes
Inverter Dimensions	166*41*29mm(Ixternal Driver) 155*40*30mm(Enternal Driver) 217*41*29mm(External Driver)Combinded Driver and Inverter
Battery Dimensions	Customized (33*60mm)
Suitable light source	LED tube, LED panel, LED down light,led flood light,LED Recessed Lamp,Fluorescent
Housed Box	Metal Box/Aluminum Box

    Emergency Conversion Kit With External Driver:

Model	Output Power	Max.Connected Load	Input Voltage	Emergency Time	Output Voltage
EVL-EME08	≤8W	0.5 A	85-265VAC 100-240V 110-277V	1-3 Hours	12-48V DC
EVL-EM12	≤12W	0.75A	85-265VAC 100-240V 110-277V	1-3 Hours	12-48V DC
EVL-EM25	≤25W	1.38 A	85-265VAC 100-240V 110-277V	1-3 Hours	12-48V DC
EVL-EM**	≥25w	….	….	….	….


Emergency Conversion Kit  With Inernal Driver:

Model	Output Power	Input Power	Input Voltage	Emergency Time	Output Voltage
EVL-EMI18	≤18W	18W	85-265VAC 100-240V 110-277V	1-3 Hours	220V DC
EVL-EMI25	≤25W	25W	85-265VAC 100-240V 110-277V	1-3 Hours	220V DC
EVL-EMI**	≥25W	….	….	….	….

    Label on the inverter
Inverter Size  ( Other size,pls contact suppliers)      LED Indicator and Test Buttom Size :       Wiring Diagram   Emergency Conversion Kit  instructions to guide    1. Install the unit according to the wiring diagram, any improper wiring may lead to permanent damage to the unit.   2. Normal AC mains supply, the inverter allows the battery pack to charge, trickle charge to maintain the battery performance.   Sudden interruption of the main AC, the inverter then converts DC battery power to ensure that the attached lighting remains lit.   3. Inverter with multiple protection functions;
-. Charge protection
-. Discharge protection
-. Short circuit protection.
4. To ensure maximum performance of the built-in battery, please fully charge the unit for at least 24 hours after first installation
ensure that a battery test is performed at least one time every three months.
5. Do not install near high temperature objects. Please ensure that the operating ambient temperature is below 50C (122F), and
the maximum case temperature (tc) does not exceed 80C (176F).
6. Do not operate this unit beyond the operating supply range.
7. In normal use, the battery can withstand 1,000 charge/discharge cycles or 7-10 year life expectancy.
8. Any questions, please contact your sales representative, or the location where the products were purchased.
Wiring Diagram (About Emergency Conversion Kit ,More wiring diagram,pls contact with supplier)    220V LED Tube Emergency Conversion Kit
     LED Downlight Emergency Conversion Kit
      Emergency Conversion Kit combined driver and inverter        Our Services  Office and workshop tour :     Emergency Conversion Kit  Application Range :   Hotel School Warehouse Tunnel Underground Garage Hospital Market Stairway Wharf Other building install with LED Products     Emergency Inverter 12v with Nicd Battery Pack/12V Ni-CD battery pack for led tube,led downlight,led panel      FAQ Q1: Can it use for all kinds of led products ? A1: it can be used for almost all LED products.   Q2:How long can the emergency module back up work ? A2:They can back up power 1-3 hours for your option.   Q3 :How can they connect to the LED lightings ? A3 :About it,pls following the installation guides.   Q4:What kind of luminaries can work with the emergency pack ? A4:The emergency Pack can work with both internal driver and external driver led lightings.   Q5 :What do you mean by “high voltage emergency pack” and “low voltage emergency pack“ ? A5 :High voltage emergency pack means it is for LED lighting with internal driver;low voltage emergency pack means it is for LED lighting with external driver.   Q6 :Can your emergency pack work with led tubes ? A6 :Yes,our emergency pack can work with most led lightings,For led tubes you should choose our high voltage one.   Q7: Our 36W led panel is external driver,can we make 50% brightness in emergency ? A7:Yes,you can,as long as your led light is external driver,you can choose low voltage from EVEN Tec,which means it can choose 10%-100% brightness in emergency.   Q8 :Is it possible to print our company LOGO on your emergency pack ? A8:When the order reach above 300pcs,send your LOGO file for us.   Q9: Is it dangerous of your emergency pack during the transportation ? A9:Our QC check it carefully before ship for you,our emergency pack is rather safe during shipping.   Q10 : How can you ship the emergency pack for us ? A10 :Sample or small order will ship by DHL,UPS,TNT,Fedex,EMS for your option.Order or huge weight will shipped by air or by sea for your option.   Q11: I need your emergency pack for our led light,what details would you like ? A11 :Firstly,pls tell us what type of your led light and its power.Secondly,led us know what is your demand on the emergency duriation.If your led light is external driver,it’s better to let us know the brightness in emergency.   Packaging & Shipping     New Products for your choose :Portable Emergency LED Tube Build-in Batteries.Welcome to your inquiry.
