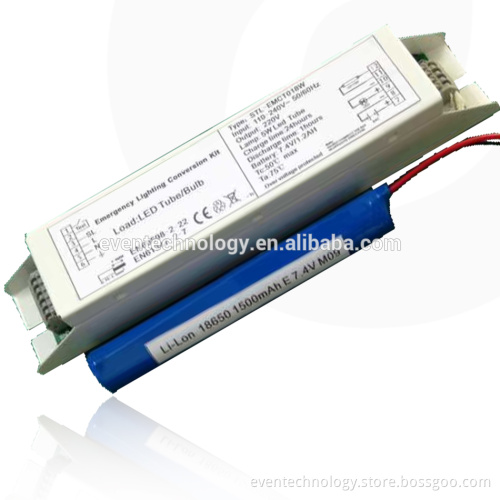

18650 small size battery pack install in the led tube inside emergency light battery backup 1-3hours

Get Latest Price

Delivery Time:: 6 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

18650 small size battery pack install in the led tube inside emergency light battery backup 1-3hours

Product name	led emergency lights
Input voltage	85~265V/AC, 50/60HZ
Indicator	Yes
Test button	Yes
Emergency Duration	3 hrs
Battery protection	Yes
Operation temperature	-10°C~50°C
Highest Surface Temperature	70°C
Battery	6* 2Ah Li-ion Batteries
Brightness	100%
Charging	24h after commissioning
Maximum power LED	5-32W
Output in emergency	220~240V/AC, 50/60HZ
Emergency / main-power emergency	Yes
Inverter Dimensions	1554030mm
Battery Dimensions	18650
Suitable light source	LED tube, LED panel, LED down light,led flood light,LED Recessed Lamp,Fluorescent
Housed Box	Metal Box/Aluminum Box

Label on the inverter

Inverter Size ( Other size,pls contact suppliers)

Battery Size :

LED Tube(Internal Driver)
10W	Battery : 12V/1000mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/2000mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/3000mAh Ni-CD/Ni-MH/Li-ion
	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz
	Inverter Output Power : 100%	Inverter Output Power : 100%	Inverter Output Power : 100%
	Inverter Size :1664129mm	Inverter Size :1664129mm	Inverter Size :1664129mm
	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs
	Battery Pack Size : 24829.214.1mm	Battery Pack Size : 2134322mm	Battery Pack Size : 2535025mm
	Battery Pack Weight :0.25kg/unit	Battery Pack Weight :0.5kg/unit	Battery Pack Weight :0.5kg/unit
	Emergency Duration : 1hrs	Emergency Duration : 2hrs	Emergency Duration : 3hrs
	Housed Box : Metal Box/Aluminum Box

18W	Battery : 12V/1800mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/4000mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/7000mAh Ni-CD/Ni-MH/Li-ion
	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz
	Inverter Output Power : 100%	Inverter Output Power : 100%	Inverter Output Power : 100%
	Inverter Size :1664129mm	Inverter Size :1664129mm	Inverter Size :1664129mm
	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs
	Battery Pack Size : 2134422mm	Battery Pack Size : 3036633mm	Battery Pack Size : 4536633mm
	Battery Pack Weight :0.48kg/unit	Battery Pack Weight :1.20kg/unit	Battery Pack Weight :1.85kg/unit
	Emergency Duration : 1hrs	Emergency Duration : 2hrs	Emergency Duration : 3hrs
	Housed Box : Metal Box/Aluminum Box

20W	Battery : 12V/2000mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/4500mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/7000mAh Ni-CD/Ni-MH/Li-ion
	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz
	Inverter Output Power : 100%	Inverter Output Power : 100%	Inverter Output Power : 100%
	Inverter Size :1664129mm	Inverter Size :1664129mm	Inverter Size :1664129mm
	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs
	Battery Pack Size : 2134322mm	Battery Pack Size : 3036633mm	Battery Pack Size : 4536633mm
	Battery Pack Weight :0.50kg/unit	Battery Pack Weight :1.25kg/unit	Battery Pack Weight :1.85kg/unit
	Emergency Duration : 1hrs	Emergency Duration : 2hrs	Emergency Duration : 3hrs
	Housed Box : Metal Box/Aluminum Box

22W	Battery : 12V/2500mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/4500mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/7000mAh Ni-CD/Ni-MH/Li-ion
	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz
	Inverter Output Power : 100%	Inverter Output Power : 100%	Inverter Output Power : 100%
	Inverter Size :1664129mm	Inverter Size :1664129mm	Inverter Size :1664129mm
	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs
	Battery Pack Size : 2535325mm	Battery Pack Size : 3036633mm	Battery Pack Size : 4536633mm
	Battery Pack Weight :0.72kg/unit	Battery Pack Weight :1.25kg/unit	Battery Pack Weight :1.85kg/unit
	Emergency Duration : 1hrs	Emergency Duration : 2hrs	Emergency Duration : 3hrs
	Housed Box : Metal Box/Aluminum Box

25W	Battery : 12V/3000mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/5500mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/8000mAh Ni-CD/Ni-MH/Li-ion
	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz
	Inverter Output Power : 100%	Inverter Output Power : 100%	Inverter Output Power : 100%
	Inverter Size :1664129mm	Inverter Size :1664129mm	Inverter Size :1664129mm
	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs
	Battery Pack Size : 2535325mm	Battery Pack Size : 3036633mm	Battery Pack Size : 4536633mm
	Battery Pack Weight :0.78kg/unit	Battery Pack Weight :1.35kg/unit	Battery Pack Weight :1.90kg/unit
	Emergency Duration : 1hrs	Emergency Duration : 2hrs	Emergency Duration : 3hrs
	Housed Box : Metal Box/Aluminum Box
6W-32W	………………………………………………………………………………………………………………………………………………………………………………………………………..

LED Panel/LED Downlight/Flood Light…(External Driver)
9-72W	Battery : 12V/1000mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/2000mAh Ni-CD/Ni-MH/Li-ion	Battery : 12V/3000mAh Ni-CD/Ni-MH/Li-ion
	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz	Inverter Voltage : AC90-260V/50Hz-60Hz
	Inverter Output Power : 10%-100%	Inverter Output Power : 10%-100%	Inverter Output Power :10%- 100%
	Inverter Size :1554030mm	Inverter Size :1554030mm	Inverter Size :1554030mm
	Combined Driver and Inverter Size : 2174129mm	Combined Driver and Inverter Size: 2174129mm	Combined Driver and Inverter Size : 2174129mm
	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs	Inverter Weight : 0.16kg/pcs
	Combined Driver and Inverter Weight : 0.22kg/pcs	Combined Driver and Inverter Weight : 0.22kg/pcs	Combined Driver and Inverter Weight : 0.22kg/pcs
	Battery Pack Size : 24829.214.1mm	Battery Pack Size : 2134322mm	Battery Pack Size : 2535025mm
	Battery Pack Weight :0.25kg/unit	Battery Pack Weight :0.5kg/unit	Battery Pack Weight :0.5kg/unit
	Emergency Duration : 1hrs	Emergency Duration : 2hrs	Emergency Duration : 3hrs
	Housed Box : Metal Box/Aluminum Box

Instructions to guide 1. Install the unit according to the wiring diagram, any improper wiring may lead to permanent damage to the unit. 2. Normal AC mains supply, the inverter allows the battery pack to charge, trickle charge to maintain the battery performance. Sudden interruption of the main AC, the inverter then converts DC battery power to ensure that the attached lighting remains lit. 3. Inverter with multiple protection functions;
-. Charge protection
-. Discharge protection
-. Short circuit protection.
4. To ensure maximum performance of the built-in battery, please fully charge the unit for at least 24 hours after first installation
ensure that a battery test is performed at least one time every three months.
5. Do not install near high temperature objects. Please ensure that the operating ambient temperature is below 50C (122F), and
the maximum case temperature (tc) does not exceed 80C (176F).
6. Do not operate this unit beyond the operating supply range.
7. In normal use, the battery can withstand 1,000 charge/discharge cycles or 7-10 year life expectancy.
8. Any questions, please contact your sales representative, or the location where the products were purchased. Wiring Diagram ( More wiring diagram,pls contact with Even Technology) 220V LED Tube

LED Downlight :

Combined Driver and Inverter :

1hrs Emergency Duration ( 10%-100% brightness for our optional)

2hrs Emergency Duration ( 10%-100% brightness for our optional)

3hrs Emergency Duration ( 10%-100% brightness for our optional)
