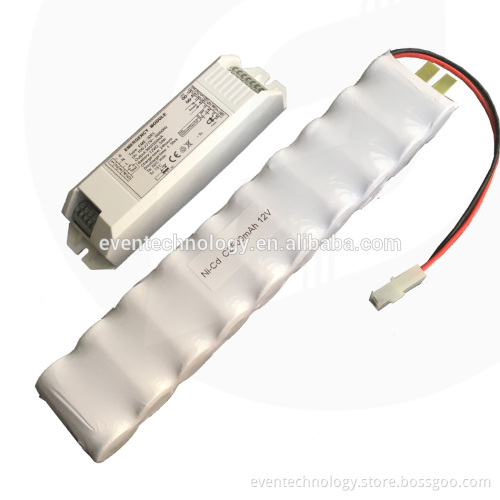

18W led emergency lighting power pack
- Delivery Time:
- 6 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
18W led emergency lighting power pack
Label on the inverter
Inverter Size ( Other size,pls contact suppliers)
Battery Size :
Instructions to guide 1. Install the unit according to the wiring diagram, any improper wiring may lead to permanent damage to the unit. 2. Normal AC mains supply, the inverter allows the battery pack to charge, trickle charge to maintain the battery performance. Sudden interruption of the main AC, the inverter then converts DC battery power to ensure that the attached lighting remains lit. 3. Inverter with multiple protection functions;
-. Charge protection
-. Discharge protection
-. Short circuit protection.
4. To ensure maximum performance of the built-in battery, please fully charge the unit for at least 24 hours after first installation
ensure that a battery test is performed at least one time every three months.
5. Do not install near high temperature objects. Please ensure that the operating ambient temperature is below 50C (122F), and
the maximum case temperature (tc) does not exceed 80C (176F).
6. Do not operate this unit beyond the operating supply range.
7. In normal use, the battery can withstand 1,000 charge/discharge cycles or 7-10 year life expectancy.
8. Any questions, please contact your sales representative, or the location where the products were purchased. Wiring Diagram ( More wiring diagram,pls contact with Even Technology) 220V LED Tube
LED Downlight :
Combined Driver and Inverter :
1hrs Emergency Duration ( 10%-100% brightness for our optional)
2hrs Emergency Duration ( 10%-100% brightness for our optional)
3hrs Emergency Duration ( 10%-100% brightness for our optional)
What we can just do for you is as following High Quality,Best Choice ! Best Choice,Good Market ! Good Market,High Quality ! Office and workshop tour :
FCC/CE/RoHs Certificates :
18W led emergency lighting power pack
Label on the inverter
Inverter Size ( Other size,pls contact suppliers)
Battery Size : | LED Tube(Internal Driver) | |||
| 10W | Battery : 12V/1000mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/2000mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/3000mAh Ni-CD/Ni-MH/Li-ion |
| Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | |
| Inverter Output Power : 100% | Inverter Output Power : 100% | Inverter Output Power : 100% | |
| Inverter Size :166*41*29mm | Inverter Size :166*41*29mm | Inverter Size :166*41*29mm | |
| Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | |
| Battery Pack Size : 248*29.2*14.1mm | Battery Pack Size : 213*43*22mm | Battery Pack Size : 253*50*25mm | |
| Battery Pack Weight :0.25kg/unit | Battery Pack Weight :0.5kg/unit | Battery Pack Weight :0.5kg/unit | |
| Emergency Duration : 1hrs | Emergency Duration : 2hrs | Emergency Duration : 3hrs | |
| Housed Box : Metal Box/Aluminum Box | |||
| 18W | Battery : 12V/1800mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/4000mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/7000mAh Ni-CD/Ni-MH/Li-ion |
| Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | |
| Inverter Output Power : 100% | Inverter Output Power : 100% | Inverter Output Power : 100% | |
| Inverter Size :166*41*29mm | Inverter Size :166*41*29mm | Inverter Size :166*41*29mm | |
| Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | |
| Battery Pack Size : 213*44*22mm | Battery Pack Size : 303*66*33mm | Battery Pack Size : 453*66*33mm | |
| Battery Pack Weight :0.48kg/unit | Battery Pack Weight :1.20kg/unit | Battery Pack Weight :1.85kg/unit | |
| Emergency Duration : 1hrs | Emergency Duration : 2hrs | Emergency Duration : 3hrs | |
| Housed Box : Metal Box/Aluminum Box | |||
| 20W | Battery : 12V/2000mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/4500mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/7000mAh Ni-CD/Ni-MH/Li-ion |
| Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | |
| Inverter Output Power : 100% | Inverter Output Power : 100% | Inverter Output Power : 100% | |
| Inverter Size :166*41*29mm | Inverter Size :166*41*29mm | Inverter Size :166*41*29mm | |
| Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | |
| Battery Pack Size : 213*43*22mm | Battery Pack Size : 303*66*33mm | Battery Pack Size : 453*66*33mm | |
| Battery Pack Weight :0.50kg/unit | Battery Pack Weight :1.25kg/unit | Battery Pack Weight :1.85kg/unit | |
| Emergency Duration : 1hrs | Emergency Duration : 2hrs | Emergency Duration : 3hrs | |
| Housed Box : Metal Box/Aluminum Box | |||
| 22W | Battery : 12V/2500mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/4500mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/7000mAh Ni-CD/Ni-MH/Li-ion |
| Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | |
| Inverter Output Power : 100% | Inverter Output Power : 100% | Inverter Output Power : 100% | |
| Inverter Size :166*41*29mm | Inverter Size :166*41*29mm | Inverter Size :166*41*29mm | |
| Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | |
| Battery Pack Size : 253*53*25mm | Battery Pack Size : 303*66*33mm | Battery Pack Size : 453*66*33mm | |
| Battery Pack Weight :0.72kg/unit | Battery Pack Weight :1.25kg/unit | Battery Pack Weight :1.85kg/unit | |
| Emergency Duration : 1hrs | Emergency Duration : 2hrs | Emergency Duration : 3hrs | |
| Housed Box : Metal Box/Aluminum Box | |||
| 25W | Battery : 12V/3000mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/5500mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/8000mAh Ni-CD/Ni-MH/Li-ion |
| Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | |
| Inverter Output Power : 100% | Inverter Output Power : 100% | Inverter Output Power : 100% | |
| Inverter Size :166*41*29mm | Inverter Size :166*41*29mm | Inverter Size :166*41*29mm | |
| Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | |
| Battery Pack Size : 253*53*25mm | Battery Pack Size : 303*66*33mm | Battery Pack Size : 453*66*33mm | |
| Battery Pack Weight :0.78kg/unit | Battery Pack Weight :1.35kg/unit | Battery Pack Weight :1.90kg/unit | |
| Emergency Duration : 1hrs | Emergency Duration : 2hrs | Emergency Duration : 3hrs | |
| Housed Box : Metal Box/Aluminum Box | |||
| 6W-32W | ……………………………………………………………………………………………………………………………………………………………………………………………………….. | ||
| LED Panel/LED Downlight/Flood Light…(External Driver) | |||
| 9-72W | Battery : 12V/1000mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/2000mAh Ni-CD/Ni-MH/Li-ion | Battery : 12V/3000mAh Ni-CD/Ni-MH/Li-ion |
| Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | Inverter Voltage : AC90-260V/50Hz-60Hz | |
| Inverter Output Power : 10%-100% | Inverter Output Power : 10%-100% | Inverter Output Power :10%- 100% | |
| Inverter Size :155*40*30mm | Inverter Size :155*40*30mm | Inverter Size :155*40*30mm | |
| Combined Driver and Inverter Size : 217*41*29mm | Combined Driver and Inverter Size: 217*41*29mm | Combined Driver and Inverter Size : 217*41*29mm | |
| Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | Inverter Weight : 0.16kg/pcs | |
| Combined Driver and Inverter Weight : 0.22kg/pcs | Combined Driver and Inverter Weight : 0.22kg/pcs | Combined Driver and Inverter Weight : 0.22kg/pcs | |
| Battery Pack Size : 248*29.2*14.1mm | Battery Pack Size : 213*43*22mm | Battery Pack Size : 253*50*25mm | |
| Battery Pack Weight :0.25kg/unit | Battery Pack Weight :0.5kg/unit | Battery Pack Weight :0.5kg/unit | |
| Emergency Duration : 1hrs | Emergency Duration : 2hrs | Emergency Duration : 3hrs | |
| Housed Box : Metal Box/Aluminum Box | |||
-. Charge protection
-. Discharge protection
-. Short circuit protection.
4. To ensure maximum performance of the built-in battery, please fully charge the unit for at least 24 hours after first installation
ensure that a battery test is performed at least one time every three months.
5. Do not install near high temperature objects. Please ensure that the operating ambient temperature is below 50C (122F), and
the maximum case temperature (tc) does not exceed 80C (176F).
6. Do not operate this unit beyond the operating supply range.
7. In normal use, the battery can withstand 1,000 charge/discharge cycles or 7-10 year life expectancy.
8. Any questions, please contact your sales representative, or the location where the products were purchased. Wiring Diagram ( More wiring diagram,pls contact with Even Technology) 220V LED Tube
LED Downlight :
Combined Driver and Inverter :
1hrs Emergency Duration ( 10%-100% brightness for our optional)
2hrs Emergency Duration ( 10%-100% brightness for our optional)
3hrs Emergency Duration ( 10%-100% brightness for our optional)
What we can just do for you is as following High Quality,Best Choice ! Best Choice,Good Market ! Good Market,High Quality ! Office and workshop tour :
FCC/CE/RoHs Certificates :
