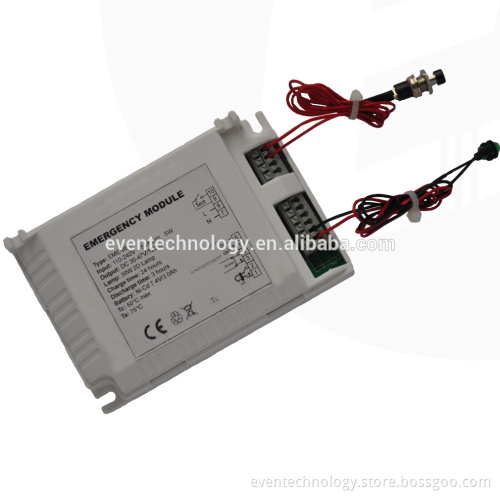

Emergency Inverter with inside battery for 2D led lamp,LED downlight or other lightings

Product Description Emergency Inverter with inside battery for 2D led lamp,LED downlight or other lightings        For example as following ;   Specifications  10W LED Non-Maintained Emergency Downlight Kit

Product Code	EME-**
Description	10W LED EMERGENCY DOWNLIGHT KIT
Watts	10W
Battery duration	3 hours
Charging Time	24 Hours
Battery Sealed	12V/3.0Ah
Ambient Temp	+10C to +50C
Rated Supply	230V +/- 10% 50-60Hz

  Soon will send more details for your reference after confirm the following information.   1,What LED Products and Power ? 2,How much Battery Duration ? 3,What is outpurt voltage and current ?     LED Products Range :     Battery Duration :   1,1 hours emergency pack 2,2 hours emergency pack 3,3 hours emergency pack 4,.........................................   Battery Sealed   Rated Supply : 1,230V +/- 10% 50-60Hz 2,   110/220V 50-60Hz 3,   90-240V 50-60Hz 4,   100-277V 50-60Hz 5,   110-240V 50-60Hz 6,    ...............................   Label with custom LOGO :     Emergency Testing:     Datasheet Emergency Kit for External Driver LED Products   1.Model: EME-**   2.Instruction manual Product name: Emergency lighting module for LED downlight,LED Panel,LED Ceiling light ect...   3.Product highlights 1. According to EN60598; EN 55015; CE; 2. Deep discharge protection 3. Operation time (discharge):1-3hours(Customized within 3hrs)     4.Specification Voltage: AC 85-265 V 50-60Hz Self consume power: <5W Batterycharging: 24hours Discharge current: 1.0A Suitable light source: LED downlight Batteryspecification: Ni-Cd12V 3000MAh HT (High temperature) Environment temperature: -10…+55℃ Highest surface temperature: 70℃ LED charge monitoring Batteryprotection device equipped Test switch: switch between emergency and normal lighting function, should have normally open switch Applied LED downlight range:5-30W   5.Installing size (mm)     6.Connection drawing     7. APPLICATION GUIDE   7.1.Install the unit according to wiring diagram, any improper wiring may lead to permanent damage to the unit;   7.2.Normal AC mains supply, the inverter allows the battery pack charging,trickle charge to maintain battery performance.Sudden interruption of the mains AC,then the inverter converts DC battery powered to ensure that lighting and security;   7.3.Inverter with multiple protection functions:charge protection,discharge protection, short circuit protection;   7.4.To ensure maximum performance of the built-in battery, please fully charge the unit for 24hours after first installation;To extend battery life,please make sure charge the battery at least one time every three months;   7.5.Don’t install top of the high temperature objects.Please ensure that the operating ambient temperature is below 50ºC, and maximum case temperature (tc) not exceeding 70ºC;   7.6.Do not operate this unit beyond the operating supply range;   7.7. In normal use, the battery can be done 500 charge/discharge cycles   7.8. Inverter life is more than 4 years   7.9.If experience any problem during use,please contact with supplier for help.     Company Information           Packaging & Shipping     New Products are on line :  1,Emergency LED Tube  2,Emergency LED Bulb           Emergency Inverter with inside battery for 2D led lamp,LED downlight or other lightings
