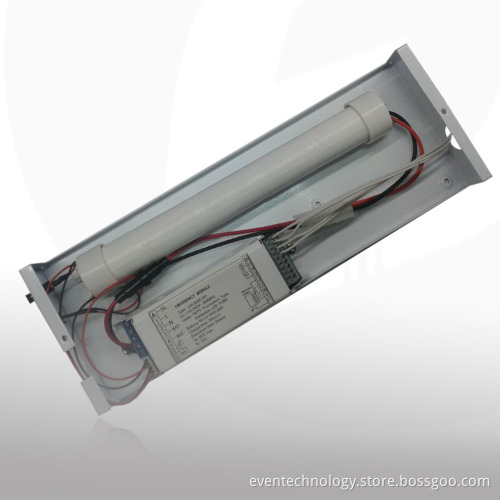

12V/24V emergency led strip tape conversion kit/led strip emergency model

Product Description EME-EL led strip tape conversion kit Matched program :Ni-CD /Ni-mh/Li-ion Battery + Inverter+ Metal Box Input: AC85-265V,50/60Hz Output : Custant Current Output Lamp : LED Light With External Driver Charge Time:24 hours Discharge Time : 1~3hrs
Note: do not connect the battery opposite direction. Related Products EME Range for led lights with external driver Designed specifically to suit most constant current type LED,low voltage utilizing DC/DC switcher circuitry.Mainly applied to LED panel,LED downlight,LED strip and so on.
Specification

Input Voltage: 85-265V AC 50/60Hz
Em.Power Watts:Max 25W
EM.Duration: 3 Hours
Em.Ouput current: Constant current output
Em.Output Voltage:10-60V DC
Battery type: High Temperature ni-cd cells
Recharge time: 24 hours
Amblent Temp:0℃-55℃

Technical Details

Em.Power Watts : 5W-25W
Em.Duration : 3 Hours
Battery Voltage:6V-12V series
Battery Capacity Ah : 3Ah-8Ah
Charge Current :150mA-400mA
Cut-off Voltage: 5V-10V
EME Range Wiring Diagram
EMI Range For LED Light With Internal Driver 110-220V AC high voltage emergency lighting conversion kits.Designed specifically to suit internal driver’s light, such as LED tube,led bulb
Specification

Input Voltage: 85-265V AC 50/60Hz
Em.Power Watts:Max 50W
EM.Duration: 3 Hours
Em.Ouput current: 110-220V AC
Battery type: High Temperature ni-cd cells
Recharge time: 24 hours
Amblent Temp:0℃-55℃

Technical Details
Em.Power Watts : 10W-50W
Em.Duration : 1-3 Hours
Battery Voltage:12V series
Battery Capacity Ah : 3Ah-10Ah
Charge Current :150mA-500mA
Cut-off Voltage: 10V
EMI Range Wiring Diagram
EMF Range For Fluorescent Lamp  EMF Range Emergency Pack is widely used for all of fluorescent lamps including T5/T8/PL/CFL/2D and so on.
The emergency inverter provide high power and high voltage to the lamp directly without assorting with ballast or starter in case of mains off, Emergency power can be set up 4W to 8W while emergency duration can be customized freely

• IC controlled Dual rate Charger for energy savings.
• Short circuit protection at battery terminals.
• Battery reverse protection functionality
• Suit 8 - 80W fluorescent lamps
• Premium 70°C high temperature Nickel Cadmium batteries
• LED charging state indicator
• Test button to stimulate mains power failure
• Suitable for use with electronic or magnetic ballast
• Comply with European standards EN 61 347-2-7 and offer a high level of quality and safety meeting the various prevailing regulations.

Specification

Inner package material : Retardant White Plastic
Charging power: AC110V-AC265V， 50HZ/60HZ
Emergency time: 1-3 hrs
Emergency conversion time : Less than 0.1Sec
Charging time : 24h
Emergency output current : Around 1200mA(battery)
Battery Capacity:1Ah-10Ah
Emergency output voltage : 1000V
Detailed Images EMF Range Wiring Diagram
Our Service Our Company EVEN TECHNOLOGY CO.,LTD (Emergency Lighting Kits) ABOUT US

Even Technology is the only professional manufacture who produces emergency accessaries for lighting.As you know,high quality makes from specialty.

Our products major in:

- Emergency Kit for Lighting
- Rechargeable Battery (NiCd, NiMH,Li-ion and its packs)
- Emergency Luminaries Products

Our factories are set inside mainland China, in order to provide low manufacturing cost for you to win more market.

Why Choosing Us
LED lighting plays a key important role in daily life，accordingly,the emergency kit is also important within this products.

Emergency Lighting Inverters need professional understanding of battery specification to get good performance. We develop our inverters inch by inch to best fit lights and battery.

Therefore, rather than its price, the reliability is the top factor to consider.

More experiences we have,more professional will service for you.

You are most welcome to contact us by Skype, e-mail, telephone call or even walk in to talk to us. We will try best to get best solution for you.
Certifications CE&RoHs DGM Test Report Safe Transport Report FAQ Non-maintained fitting Non-maintained fitting – is normally switched off, with its batteries being continuously charged and a green LED showing fully charged. When the power fails then the fitting switches on using its battery supply. Non-maintained fittings are not part of the general lighting but are fittings such as emergency exit signs. Maintained fitting Maintained fitting – will operate as a normal light fitting and be controlled with all the other lights in the area, however when the power fails the maintained emergency fitting will continue to operate but, at a lower light level. Packing & Delivery
