2D emergency light pack rechargeable emergency led system

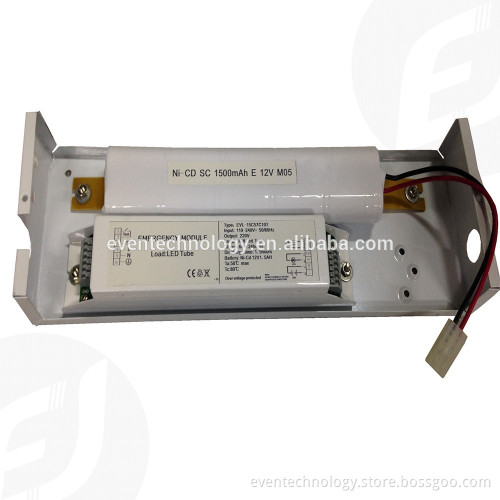

2D emergency light pack rechargeable emergency led system       Emergency Conversion Kit = Emergency Inverter + Ni-CD/Ni-MH/Li-ion Battery Pack + Aluminum Box/Metal Box + Other Accessaries      Product Description How to choose the emergency conversion kit for your project  ?    1, Pls confirm what kind of l luminaires it is, such as your lighting is LED tube, LED panel,LED downlight, CFL,  or Fluorescent etc.What’s more,pls let us know the power of luminaires (W).    2, Pls let us know your local mains power.   3, Once confirm your luminaires is led downlight and led panel, pls let us know the driver's parameters of your luminaires   4, It’s better to tell us what is your requirement about the emergency brightness you need and how long emergency duration when mains power failure.

10W LED Power (1hrs)	Battery Pack :12V AA 1000mAh Ni-CD +Combined driver and inverter
	12V AA 1000mAh Ni-MH +Combined driver and inverter
	11.1V 18650 Li-ion Battery + Inverter
10W LED Power (2hrs)	Battery Pack :12V SC 2000mAh Ni-CD +Combined driver and inverter
	12V SC 2000mAh Ni-MH +Combined driver and inverter
	11.1V 18650 Li-ion Battery + Inverter
10W LED Power(3hrs)	Battery Pack :12V  C 3000mAh Ni-CD +Combined driver and inverter
	12V  C 3000mAh Ni-MH +Combined driver and inverter
	11.1V 18650 Li-ion Battery + Inverter
Inverter Voltage	AC85-265/50-60Hz
Emergency Brightness	10%-100%
Inverter Output Power	Total Power
Battery Dimensions	(Single Battery Cell) AA Size:14.1*49mm  SC Size:42*22mm  C Size:50*25mm              D Size:60*33mm  F Size : 90*33mm
Application Range	LED Tube/Panel/Downlight/2D Lamp/Ceiling Lamp/Fluorescent ect.

            The Schematic Diagram for Universal LED Emergency Conversion Kit

Specification Of Universal LED Emergency Conversion Kit  :

Voltage	AC 85-265V/220-240V AC 50-60Hz (According to LED Luminaire's Parameter)
Emergency power	10%-100%W
Battery charging	24 hours
Discharge current	80mA-450mA
Suitable light	LED tube,LED panel,LED downlight ect..
Battery specification	High temp rechargeable battery pack
Environment temperature	-10℃ ~55℃
Highest surface temperature	70℃
LED charge monitoring	YES
Battery protection device equipped	YES
Test switch	Switch between emergency and normal lighting function,
	Should have normally open switch.

     Application Guide :

1.1.Install the unit according to wiring diagram, any improper wiring may lead to permanent damage to the unit;
1.2.Normal AC mains supply, the inverter allows the battery pack charging, trickle charge to maintain battery performance. Sudden interruption of the mains AC, then the inverter converts DC battery powered to ensure that lighting and security;  1.3.Inverter with multiple protection functions: charge protection, discharge protection, short circuit protection;
1.4.To ensure maximum performance of the builtin battery, please fully charge the unit for 24hours after first installation; To extend battery life, please contact with EVEN TECHNOLOGY and make sure charge the battery at least one time every three months.  1.5.Don’t install top of the high temperature objects. Please ensure that the operating ambient temperature is below 50ºC, and maximum case temperature (tc) not exceeding 80ºC;  1.6.Do not operate this unit beyond the operating supply range;
1.7. In normal use, the battery can be done 1000 charge/discharge cycles
1.8. Inverter life is more than 2 years
1.9.Please make sure not wrong connect the mains AC, or else will broken the inverter.
1.10. If experience any problem during use, please contact with EVEN TECHNOLOGY for help.     About Parameter of 10W Flood Light

Input Voltage	85-265V AC, 50/60Hz
Operating Temperture	-30c to +50c
LED Type	Epistar 1 x 10w
Output	850Lm
Power	10w
Colour Temperature	Warm White | Natural White | Cool White
Product Life	50,000Hrs
Component Warranty	3 Years
Material	Recycled Aluminium
Modifcations Availible	Emergency Battery/Other emergency accessaries
Fixture Dimensions	115 x 86 x 85mm
Diffuser	Toughened Glass
IP Rating	IP65
Fixture Weight	0.6Kg
Casing Colour	Grey | Black

  Company Information 2D emergency light pack rechargeable emergency led system       Packaging & Shipping   Welcome to Even Technology and thank you so much for your visiting.Any feedback from you is our big moving.Thank you for your supporting !
