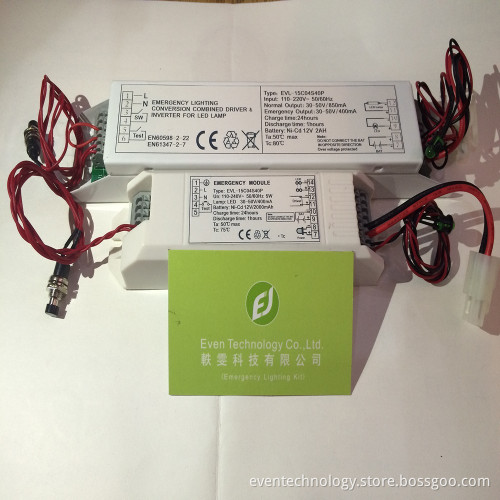

3 hours rechargeable emergency retrofit kit adapt for all the Led ceiling lights

3 hours rechargeable emergency retrofit kit adapt for all the Led ceiling lights         Emergency Lighting Module = Battery Pack ( Ni-CD/Ni-MH/Li-ion ) + Inverter + Aluminum Box/Metal Box (Other accessaries)      Product Description How to choose the emergency conversion kit for your project  ?    1, Pls confirm what kind of l luminaires it is, such as your lighting is LED tube, LED panel,LED downlight, CFL,  or Fluorescent etc.What’s more,pls let us know the power of luminaires (W).    2, Pls let us know your local mains power.   3, Once confirm your luminaires is led downlight and led panel, pls let us know the driver's parameters of your luminaires   4, It’s better to tell us what is your requirement about the emergency brightness you need and how long emergency duration when mains power failure.

10W LED Power (1hrs)	Battery Pack :12V AA 1000mAh Ni-CD +Combined driver and inverter
	12V AA 1000mAh Ni-MH +Combined driver and inverter
	11.1V 18650 Li-ion Battery + Inverter
10W LED Power (2hrs)	Battery Pack :12V SC 2000mAh Ni-CD +Combined driver and inverter
	12V SC 2000mAh Ni-MH +Combined driver and inverter
	11.1V 18650 Li-ion Battery + Inverter
10W LED Power(3hrs)	Battery Pack :12V  C 3000mAh Ni-CD +Combined driver and inverter
	12V  C 3000mAh Ni-MH +Combined driver and inverter
	11.1V 18650 Li-ion Battery + Inverter
Inverter Voltage	AC85-265/50-60Hz
Emergency Brightness	10%-100%
Inverter Output Power	Total Power
Battery Dimensions	(Single Battery Cell) AA Size:14.1*49mm  SC Size:42*22mm  C Size:50*25mm              D Size:60*33mm  F Size : 90*33mm
Application Range	LED Tube/Panel/Downlight/2D Lamp/Ceiling Lamp/Fluorescent ect.

        Specification Of Emergency Module  :

Voltage	AC 85-265V/220-240V AC 50-60Hz
Emergency power	10%-100%W
Battery charging	24 hours
Discharge current	80mA-450mA
Suitable light	LED tube,LED panel,LED downlight ect..
Battery specification	High temp rechargeable battery pack
Environment temperature	-10℃ ~55℃
Highest surface temperature	70℃
LED charge monitoring	YES
Battery protection device equipped	YES
Test switch	Switch between emergency and normal lighting function,
	Should have normally open switch.

      Wiring Diagram More Wiring Diagram about other lights,pls contact with Even Technology.   When AC put on :        When AC power off :      FAQ of 3 hours rechargeable emergency retrofit kit adapt for all the Led ceiling lights
  What is inverter?    Inverter is an electronic equipment that turn 12v/24v/48v DC into 110v/220v/240v AC.   How many kind of output wave form for inverter ?   Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high quality AC and carry various loads, while it requires high tech and high  cost. Modified sine wave inverter load poorly not carrying inductive load, but the price is moderate.
How do we equip an appropriate inverter battery ?   Take a battery with 12V/50AH as an example. Power equal current plus voltage then we know the power of battery is 600W. 12V*50A=600W.  So we can choose a 600W power inverter according this theoretical value.       Application Guide ( Lead to you how to connect it) :

1.1.Install the unit according to wiring diagram, any improper wiring may lead to permanent damage to the unit;
1.2.Normal AC mains supply, the inverter allows the battery pack charging, trickle charge to maintain battery performance. Sudden interruption of the mains AC,        then the inverter converts DC battery powered to ensure that lighting and security;
1.3.Inverter with multiple protection functions: charge protection, discharge protection, short circuit protection;
1.4.To ensure maximum performance of the built-        in battery, please fully charge the unit for 24hours after first installation; To extend battery life, please contact with EVEN TECHNOLOGY and make sure charge the   battery at least one time every three months.
1.5.Don’t install top of the high temperature objects. Please ensure that the operating ambient temperature is below 50ºC, and maximum case temperature (tc) not       exceeding 80ºC;
1.6.Do not operate this unit beyond the operating supply range;
1.7. In normal use, the battery can be done 1000 charge/discharge cycles
1.8. Inverter life is more than 2 years
1.9.Please make sure not wrong connect the mains AC, or else will broken the inverter.
1.10. If experience any problem during use, please contact with EVEN TECHNOLOGY for help. Company Information 3 hours rechargeable emergency retrofit kit adapt for all the Led ceiling lights             Packaging & Shipping Welcome to Even Technology and thank you so much for your visiting.Any feedback from you is our big moving.Thank you for your supporting !
