Split Wall Mounted Air Conditioner/Solar Air Conditioner/Hot Product Split Air Conditioner

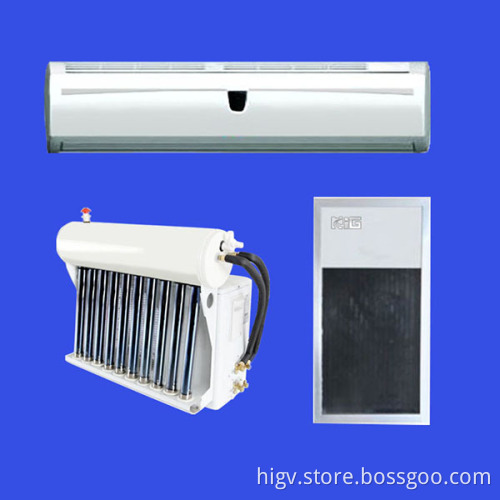

Wall Mounted Type Hybrid Solar AC
Model No.			TKF(R)-26GW	TKF(R)-32GW	TKF(R)-35GW	TKF(R)-60GW	TKF(R)-72GW
Power Supply:220-240VAC, 1PH, 50Hz
Performance
Capacity	Cooling	Btu/h	9000	11500	12000	20000	24000
		W	2600	3200	3500	6000	7200
	Heating	Btu/h	10000	12000	13000	22000	27000
		W	2900	3500	3800	6600	7900
Noise	Indoor	dB(A)	≤40	≤42	≤42	≤46	≤50
	Outdoor	dB(A)	≤50	≤50	≤52	≤56	≤58
Air Circulation		m³/h	450	520	550	850	1050
Suitable Area		m²	11~17	13~21	15~23	25~42	30~48
EER		W/W	3.64	3.72	3.89	3.88	3.82
		Btu/h/w	12.42	12.69	13.27	13.24	13.03
Power Consumption
Power Input	Cooling	W	650~770	780~940	800~1025	1350~1560	1700~1900
	Heating	W	650~780+350	780~950+350	800~1050+350	1350~1590+350	1700~1950+350
Rated Current	Cooling	A	2.95~3.50	3.55~4.27	3.64~4.66	6.14~7.09	7.73~8.64
	Heating	A	2.95~3.55+1.6	3.55~4.31+1.6	3.64~4.77+1.6	6.14~7.23+1.6	7.73~8.66+1.6
Vacuum Tube	Diameter*Length*Pcs		47mm*500mm*9	47mm*500mm*10	47mm*500mm*10	47mm*620mm*11	47mm*620mm*11
Dimensions
Indoor Unit	Net	mm	785*285*210	785*285*210	785*285*210	985*320*215	985*325*230
	Shipping	mm	910*370*300	910*370*300	910*370*300	1080*380*300	1160*400*330
Outdoor Unit	Net	mm	790*260*540	790*260*540	790*260*540	850*300*755	940*300*755
	Shipping	mm	910*370*610	910*370*610	910*370*610	950*410*760	990*400*770
Water Tank	Shipping	mm	910*400*330	910*400*330	910*400*330	980*400*370	980*400*370
Vacuum Tube	Shipping	mm
Weight
Indoor Unit	Net/Gross	kg	10/11	10.5/13	10.5/13	17/18.5	21/23
Outdoor Unit	Net/Gross	kg	31/34	33/36	38/40	50/52	55/58
Solar Collector	Net/Gross	kg	13/15	13/15	13/15	16/17	16/17
Loading Qty	in 20feet	sets	66	66	66	49	46
	40HQ	sets	162	162	162	120	112

    Products                                             Parameters in the form are messured in the rated working state :when cooling, outdoor unit dry/wet-bulb temp 35/24°C, indoor unit dry/wet-bulb 27/19°C; when heating, outdoor unit dry/wet-bulb temp 7/6°C, indoor unit dry/wet-bulb 20/15°C,  changes may appear according to real working state.     1.All aboved quotation is for containers load quantity, FOB Shanghai.1% spare parts incl.
2.Delivery: Deliver all goods in 30 days after receipt of downpayment. If designated brand is required ,  by the buyer,initial order will be delivered in 30 days after confirmation of all documents. 3.Payment: by T/T,30% in advance and belance before shipment. 4.Samples are available, please check with us for price,delivery and term of payment.            Our advantage
1.We have factory in China mainland.
2.We will have many new styles , and we can customized follow your design.
3.we have the factory ,can visit the factory at any time .
4.We can control the quality of products.
5.All of our products pass the certificate(CE or Rohs)
6.Our products “high efficiency” “energy saving” “environmental”.
7.We have our own factory, we are advantage at high quality with good price.   Our service 1.We would reply you soon as we can within 24hours. 2.We would follow your orders and inform you status at least every 2 days! 3.After your orders ,our sales would follow the shippping till to you received it. 4.We would send you information about our new products or promotional activity. 5.we would offer professional advice to install after your purchased.
  Payment and return policy
1.For the payment, we accept West Union, bank transfer, money gram, ESCROW.
2.If the total amount is more than USD1500 , 30% deposite first, rest 70% before shipment pay. If less than USD1500,please kindly make the 100% payment in advance.
3.After received the goods, please check the goods packing, if the packing is unseal or damaged on the shipping way. If yes please take the picture or make a video to us, after we see it we would resolve it.      More information welcome to contact us ! sales 1 Skype: ken.jia72 Sales 2 Skpe :fan.carmen 1 https://higv.en.alibaba.com  https://www.haiwei-group.com
