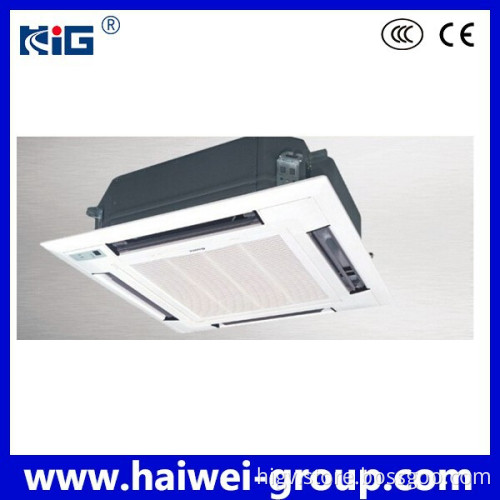

Cassette Air Conditioner/New Product Air Conditioner Cassette Type

T1 and T3 48000BTU Ceiling cassette type air conditioner   1:TOSHIBA(GMCC) & Hitachi  compressor    2: temperture digital display      3: Self-diagnose capability, error code showing   4: Auto-defrosting, Auto-restart, Energy Saving,Quiet operation   5:Sleeping Model,Remote Control

Model			MCC-36C	MCC2-48C
Power   supply		V-ph-Hz	380~415-3-50	380~420-3-50
Cooling	Capacity	Btu/h	36000	48000
	Input	W	3900	4988
	EER	W/W	2.71	2.7
Heating	Capacity	Btu/h	/	/
	Input	W	/	/
	COP	W/W	/	/
Indoor fan motor	Model		YDK90-6E	YDK90-6E
	Qty		1	1
	Input	w	143/116/100	143/116/100
	Capacitor	uF	3.5UF/450V	4UF/450V
	Speed(hi/mi/lo)	r/min	770/640/550	770/640/550
Indoor coil	a.Number   of rows		2	2
	b.Tube pitch(a)x row pitch(b)	mm	21x13.37	21x13.37
	c.Fin spacing	mm	1.4	1.5
	d.Fin type (code)		Hydrophilic   aluminium	Hydrophilic   aluminium
	e.Tube outside dia.and type	mm	Φ7,inner grooved tube	Φ7,inner grooved tube
	f.Coil length x height x width	mm	1990x252x26.74	1990x252x26.74
	g.Number of circuits		8	12
Indoor   air flow (Hi/Med/Lo)		m3/h	1648/1501/1326	1650/1412/1264
Sound   level (sound pressure)		dB(A)	50/45/43	51/46/42
Throttle type			Throttle   valve	Throttle   valve
Indoor unit	Dimension   (W x Dx H)(body)	mm	840x840x300	840x840x300
	Packing     (W x Dx H)(body)	mm	900x900x320	900x900x320
	Dimension (W   x Dx H)(panel)	mm	950x950x55	950x950x55
	Packing   (W x Dx H)(panel)	mm	1035x1035x90	1035x1035x90
	Net/Gross weight(body)	kg	28/36	29/33
	Net/Gross weight	kg	5/8	5/8
Design   pressure		MPa	2.6/1.0(3.3/1.8)	2.6/1.0
Drainage   water pipe dia.		mm	ODΦ32	ODΦ32
Refrigerant piping	Liquid   side/ Gas side	mm	Φ9.52/Φ19(3/8"/3/4")	Φ9.52/Φ19(3/8"/3/4")
Controller			RG51Q1/BGE	RG51Q1/BGE
Operation temperature	Cooling	°C	17~32	17~32
	Heating	°C	/	/

                                      Parameters in the form are messured in the rated working state :when cooling, outdoor unit dry/wet-bulb temp 35/24°C, indoor unit dry/wet-bulb 27/19°C; when heating, outdoor unit dry/wet-bulb temp 7/6°C, indoor unit dry/wet-bulb 20/15°C,  changes may appear according to real working state.     1.All aboved quotation is for containers load quantity, FOB Shanghai.1% spare parts incl.
2.Delivery: Deliver all goods in 30 days after receipt of downpayment. If designated brand is required ,  by the buyer,initial order will be delivered in 30 days after confirmation of all documents. 3.Payment: by T/T,30% in advance and belance before shipment. 4.Samples are available, please check with us for price,delivery and term of payment.            Our advantage
1.We have factory in China mainland.
2.We will have many new styles , and we can customized follow your design.
3.we have the factory ,can visit the factory at any time .
4.We can control the quality of products.
5.All of our products pass the certificate(CE or Rohs)
6.Our products “high efficiency” “energy saving” “environmental”.
7.We have our own factory, we are advantage at high quality with good price.   Our service 1.We would reply you soon as we can within 24hours. 2.We would follow your orders and inform you status at least every 2 days! 3.After your orders ,our sales would follow the shippping till to you received it. 4.We would send you information about our new products or promotional activity. 5.we would offer professional advice to install after your purchased.
