pp filter cartridge

Specifications pp filter cartridge

1.polyester, PP,Cellulose

2.standard dimension for water treatmen

3.low pressure operate

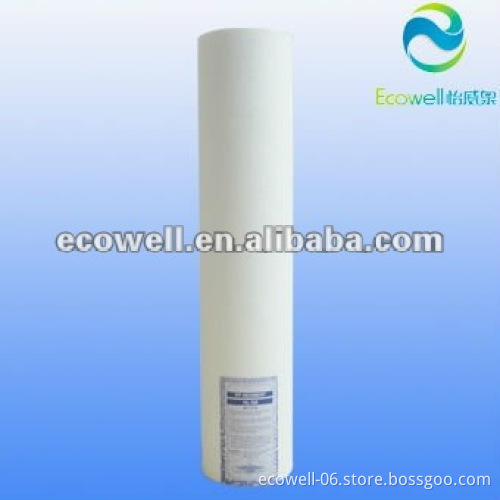

20" pleated filter cartridge picture   feature   1.Excellent chemical compatibility for filtering acids, alkalis and organic solvents 2.Membrane filtration for the depth filtration, 3.large filtering area 4.low dropout, 5.dirt holding capacity 6.long working life 7.wide rang of filtration precision for your choose   specification   Flow Rate per 10 cartridges:3-10GPM,depend on micron rating Filtration precision: 0.1μm-20μm Filter length: 20”508mm
Filter area: 0.5m2(10”),1.0m2(20”),1.5m2(30”),2.0m2(40”)
Filter socket: A platen, insert (222), Snap (226) three forms Maximum pressure difference0.4MPa(25°C,forward direction) Maximum operating temperature:60°C application  Electronics industry: pre-filtration reverse osmosis water system, de-ionized water filtration system.  Pharmaceutical Industry: Pharmaceutical, biotechnology and plasma products, filtration, compressed air and gas filtration.  Food and beverage industry: mineral water, beverages, fruit juice, wine filtration.  Chemical industry: organic solvents, ink filter.  Oil industry: oil field water filter
