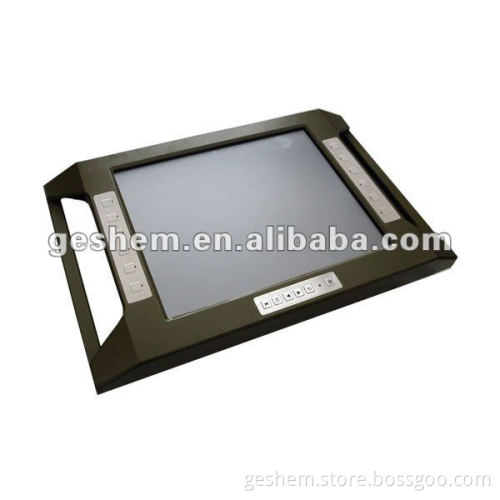

Industrial Displayer

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications IP65 compatible displayer; An idea outdoor rugged display solution

Screen size: 10'' 15'' 17'' optional;

OEM optional

Model	RD-GS1700H
Display Features
Display Screen	17'' LED
Resolution	1280x1024
Brightness	400cd/m²
Contrast Ratio	700:1
Touch Screen	Optional
I/O	Power:1xPower Input; Control Connect: Keyboard/Touch Screen(optional); VGA: 1xVGA port
Mechanical and Enviromental
Dimensions	482.6x350x52(LxWxH mm)
Weight	8Kg
IP Level	IP65(Optional)
Reliability	MTBF≥5000h; MTTR≤0.5h
Operating Temperature	-30°c~70°c; -40°c~80°c(Optional)
Storage Temperature	-40°c~80°c
Operating Humidity	10%~95%, non-condensing
Power
Power Supply	12V DC Power Input; 6-36V DC(Optional)
Power Comsumption	35W(operating temp. -30°c~70°c ); 90W(operating temp. -40°c~80°c )
Test	Vibration: 5-2000Hz/4.2g acceleration, 3 Axial; Shock: 50g acceleration, 3 Axail; EMC: EMC461E
