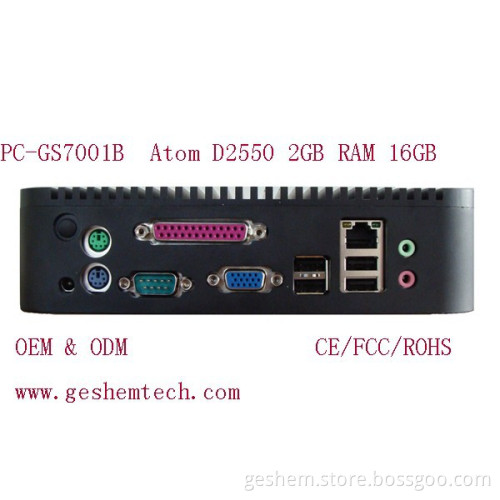

popular industrial embedded mini pc with competitive price

Performance

Chipset

Intel ®ATOM D2550 1.86GHz + NM10

Memory

2G Memory (DDRIII), Up to 4GB

Hardware Monitor

Monitors Voltage, TEMP and CPU Fan Speed

Watchdog Timer

1 to 255 sec, setup by software

Storage

HDD:16GB  SSD

Power Supply

100~240VAC/50~60Hz (Power adapter);

12VDC/5A; (No power adapter)

O/S

Operating System

Windows XP/ Windows 7/ Linux

I/O Interface

USB

6 *USB 2.0 Ports

Serial Port

1*RS232

Ethernet

1* RTL8111DL 10/100/1000Mbps  RJ45

Audio

1*Line out/Mic-in

Display

1*VGA

Environmental

Anti-vibration

5-19Hz/1.0mm amplitude;19-200Hz/1.0g acceleration;

Anti-shock

10g acceleration, 11ms duration.

Reliability

MTBF≥50000h; MTTR≤0.5h

Operating Temperature

-10℃~50℃ (with air flow)

Storage Temperature

-20℃ ~60℃

Operating Humidity

95% @40℃, non-condensing

Mechanical

Dimensions

200mm (L) *200 mm (W) *52 mm (H)

Material

High-strength and elegant Al-alloy panel

Weight

1.7kg/2.1kg(NET./GROSS.)

Color

Slivery/Black
