Anti shock embedded industrial mini box computer with 1 VGA

Anti shock embedded industrial mini box computer with 1 VGA

Get Latest Price

Delivery Time:: 2 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

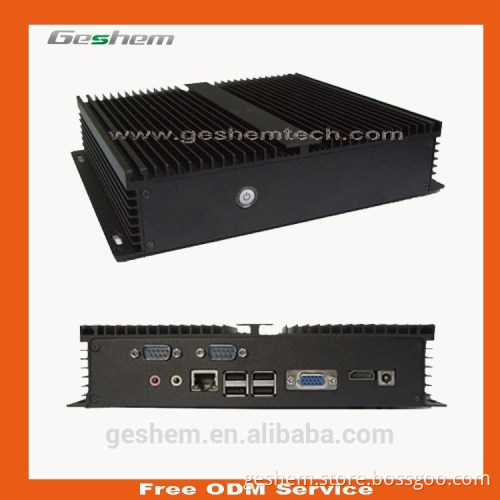

Features: l Intel ATOM D525 1.8GHz Processor l Fully-sealed fanless design, suitable for harsh industrial environment applications l 2G memory (DDRIII), up to 4GB memory l 4*USB/2*COM l 1*VGA/1*HDMI l 1*RJ45 Megabit LAN/1*Audio l Color: Slivery/Black Specifications:

Performance	Chipset	Intel D525 + Intel® ICH8M
	Memory	2G memory (DDRIII), up to 4GB
	Hardware Monitor	Monitors voltage, TEMP and CPU fan speed
	Watchdog Timer	1 to 255 sec, setup by software
	Storage	HDD:320GB 2.5'HDD SSD:(Optional)
	Power Feature	100-220VACz (with power adapter); 12VDC (no power adapter)
	Power Dissipation	15W (standby); 25W (operating MaxPower 100%).
O/S	Operating System	Windows XP/ Windows 7/ Linux
I/O Interface	USB	4 *USB2.0 Ports
	Serial Port	2RS232 (1RS485 Optional)
	Ethernet	1* RTL10/100Mbps RJ45
	Audio	2*Line out/Mic-in
	Display	1VGA /1HDMI
Environmental	Anti-vibration	5-19Hz/1.0mm amplitude;19-200Hz/1.0g acceleration;
	Anti-shock	10g acceleration, 11ms duration.
	Reliability	MTBF≥50000h; MTTR≤0.5h
	Operating Temperature	-10℃~50℃ @ 5 ~ 85% RH. (with air flow)
	Storage Temperature	-20℃ ~60℃
	Operating Humidity	95% @40℃, non-condensing
Mechanical	Dimensions	235mm (L) 200mm (W) 52mm (H)
	Material	High-strength and elegant Al-alloy panel
	Weight	2.0kg/3.0kg
	Color	Slivery/Black
