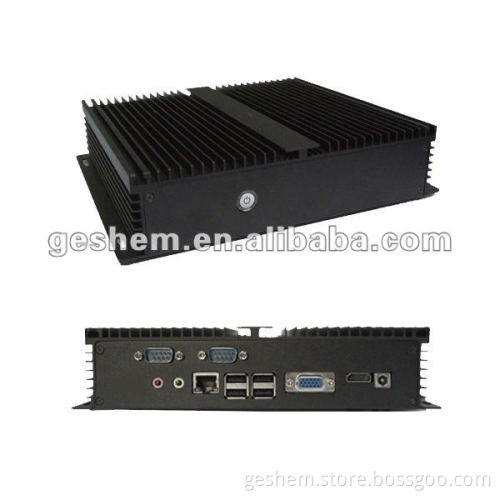

X86 Mini Box PC with Atom D525 1.8G GM3500 Chipset

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications Intel D525 1.8G;2G RAM(Max.4G); 16G SSD(2.5'' HDD optional); HDMI; WIFI(optional); 4xUSB; 2xCOM(Max.4xCOM)

Model	PC-GS525M
CPU	Intel D525 1.8GHz
Chipset	InTel D525+NM10
Memory	2G(4G optional)
Graphics	Intel GM3500
Audio	Integrated AL C662 Audio
LAN	1xRTL8111D, 10/100/1000M
Storage	Standard SSD/2.5''HDD/Mini SATA SSD
BIOS	AMI BIOS 4/8 Mbit flash
Back Panel Connector	1xHDMI,1xVGA,1xRJ-45,4xUSB,2xCOM(max.4xCOM),2xAudio,WIFI(optional)
I/O Controller	2xUSB PIN,Support 4 USB
	1x4PIN 12V Power Connector
	2xSerial PIN
	30PIN LVDS 24Bit
	1x12PIN VGA
	1xAudio PIN
Supported O/S	Windows XP/7 Linux, Win CE
Operating Temp.	0°c˜50°c
Size	215x200x55mm

...
