EPIC Motherboard

Type

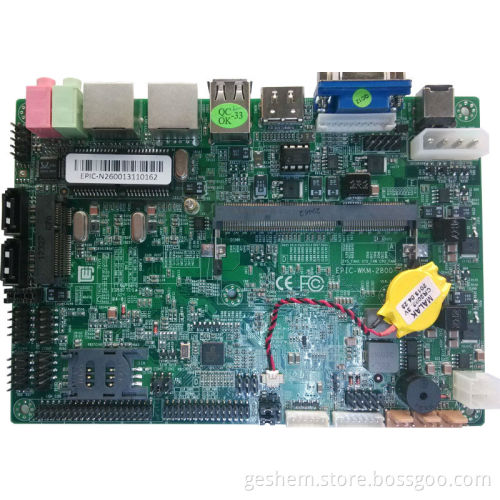

EPIC-GS2600B

CPU

Intel Atom N2600 1.6G Dual Core

Chipset

Intel NM10

Memory

DDRIII 1066MHz SODIMM ,MAX 4GB

Graphics

PowerVR SGX545,supports DirectX 10.1

Audio

Integrated AL C662 Audio 2 /4 /5.1 output

LAN

2* Realtek  8111E 1000M

Storage Interface

1. 1*SATA

Expansion Slot

1. 1*SIM
2. 1*MINI PCI-E

BIOS

AMI BIOS  4/8M bit

Back Panel Connectors

1. 1*VGA
2. 1*HDMI
3. 2*RJ-45
4. 2*USB 2.0
5. Line in/out
6. 1*DC input

I/O Controller

1.  2*USB PIN, supports 4* USB 2.0
2. 1*LVDS PIN
3. 1*Audio PIN
4.  6*Serial PIN
5. 1*12PIN VGA
6.  1*CPU Fan & System Fan

Hardware Monitoring

1. Wakeup On LAN
2. CPU/system power fan speed detection
3. CPU/system temperature detection
4. System voltage detection

OS

Supports Windows XP,2000,Linux,Win CE

Operating Temperature

0~50C

Form Factor

MINI ITX 165x115mm
