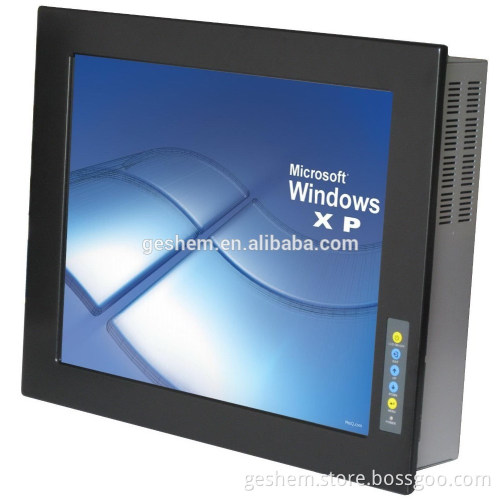

Intel ATOM D525 + ICH8M 19'' TFT LCD touch screen fanless ruggedised industrial Panel PC

Products View                                                                             Specification

Display Feature	Display Screen	19″ TFT LCD
	Resolution	1280*1024
	Brightness	300 cd/m2
	Contrast ratio	800:1
	Touch Screen	Resistive touch screen
Performance	Chipset	Intel® ATOM D525 + ICH8M
	Memory	2G memory (DDRIII), up to 4GB
	Hardware Monitor	Monitors voltage, TEMP and CPU fan speed
	Watchdog Timer	Programmable 256 levels timer interval, from 1 to 255 sec, setup by software
	Storage	HDD:320GB  2.5'HDD SSD :(Optional)
	Operating System	Windows XP/ Windows 7/ Linux
	Power Supply	Input voltage/frequency: 100~240VAC/50~60Hz (Power adapter);  Input voltage/current:12VDC/5A (No power adapter)
		Power consumption of the PC: 35W (standby); Power consumption of the PC: 55W (Running MaxPower 100%).
I/O Interface	USB	4*USB2.0 Ports
	Serial Port	2~6*RS232
	Ethernet	1* RTL8111E 10/100/1000Mbps  RJ45
	Audio	2*Line out/Mic
	Display	1*VGA
	Expansion	2*PCI
Environmental	Anti-vibration	5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration
	Anti-shock	10g acceleration, 11ms duration
	IP Level	Front panel IP65(Optional)
	Reliability	MTBF≥50000h; MTTR≤0.5h
	Operating Temperature	-10℃~50℃
	Storage Temperature	-20℃ ~60℃
	Operating Humidity	95% @40℃, non-condensing
Mechanical	Dimensions	478mm(L)×390mm(W)×86 mm (H)
	Material	High-strength and elegant Al-alloy panel
	Weight	7.75kg/9.55kg(Net./Gross)
	Color	Slivery/Black/White

      Installation   1.) Standard Vesa Bracket for Wallmount:      Vesa 100x100mm or 75x75mm 2.) Side Pothook Aide for Cutout Frame Mount     Packaging One Set/One Carton Carton Size : 520x450x200mm Net Weight :  7.75kg Gross Weight: 9.55kg Inner carton , outer carton and foam packaging are all customized according to products dimension which provide protection of cargo to great extend during shipment.   Accessories Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval   Warranty One year limited warranty   Testing Equipment Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/ network performance analyis system/oscilloscope)       Certificate CE / FCC/ Rohs       Advantage Comparing with ordinary panel pc, industrial panel pc has greater stable performance and adapts to different enviroment with defferent feature, e.g.: dust-rich enviroment(ppc with fanless feature); anti-water enviroment(fanless ppc with full IP65 feature); anti-vandal feature(ppc with shielding screen); sunlight readable(ppc with sunlight readable screen); anti-shock and anti-vibration(ppc with rugged shell); wide temperature(ppc with treated motherboard), anti-salty fog( ppc with treated motherboard)...   Application Industrial Panel PC are widely used in various field(testing/food processing/logistics/manufacturing/ tunneling/vehicle terminal...)and mainly used as central control system.       Product Appliance Product Application  1.Embedded into all kinds of equipment as display device 2.Telecom, network engine room host monitor 3.Military standard monitor,Reinforcement level display 4.Industrial machinery, numerical control equipment, engineering machinery,  5.Train, subway, hospitals, government agencies, port monitoring and display 6.4S auto shop, product display, automatic vending machine, courier easy box 7.Self registration, bank line access number, terminal self - help machine, 8. Medical equipment,Terminal inquiry machine, automation equipment       Geshem Brief Company Information      Founded in 2008, Shenzhen Geshem Technology is one of the major design and manufacturing companies in the industrial computer and embedded field. Our company has earned ISO 9001:2008 certification, and our products have passed CE, FCC, RoHs compliance testing by independent labs. We have offices in Germany, India, one agent in Iran, and three offices in China. The head office is in Shenzhen.       More products Android industrial panel pc: PPC-GS1091T            Available size: 7"/8"/10"/12"   Industrial panel pc: PPC-GS1201T:            Available size: 8"/10"/12"/15"/17"/19"         Available CPU: Intel Atom N2600, N2800, D525, Bay Trail J1900, i3/i5/i7/ Celeron 1037U  Rugged Full IP 65 industrial panel PC: PPC-GS1504TI: fanless embedded mini pc:          PC-GS3051A:     Available CPU: Haswell/i3/i5/i7/Bay Trail J1900/ N2930/ D525/N2600/ N2800     ...
