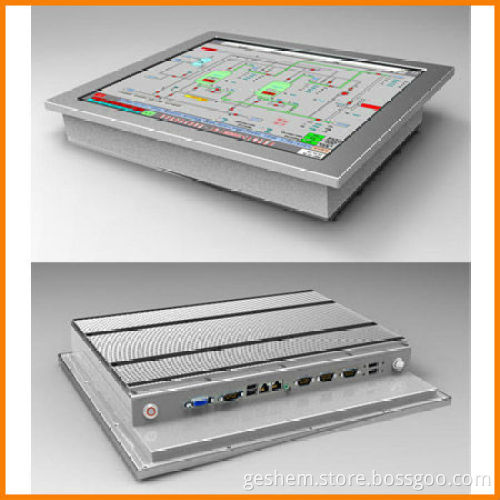

All in One PC for Industrial Application

Specifications 19' TFT;touch screen;fanless;

onboard Intel Atom D525 1.8G; 2G memory(Max. to 4G); 4xUSB2.0

Products View           Specification

Model	PPC-GS1901T
Display Features	19' TFT/support VGA+LVDS; 1024x768; 300cd/m²; 400:1; resistive touch screen
System
Chipset	Intel Atom D525 + Intel®ICH8M
Memory	2G memory (DDRIII), up to 4GB
Hardware Monitoring	Monitoring voltage, temperature, CPU fan speed and etc.
Watchdog Timer	1~255 sec./min. timer system reset/interrupt, setup by software
Storage	1x320GB 2.5' HDD
Ethernet	Chipset 2xRTL8111DL 10/100/1000Mbps/2xRJ45
I/O Interface	4xUSB2.0; 4xCOM; 1xVGA; onboard HD Audio
Mechanical and Enviromental
Dimensions	400x320x60(LxWxH mm)
Weight	6,8kg/7.8kg
IP Level(front panel)	IP65(optional)
Reliability	MTBF ≥ 5000h; MTTR≤0.5h
Temp. and Humidity	Operating Temp.-10°c~50°c; Storage Temp. -20°c~60°c; Operating Humidity 10%~95%, non-condensing
Power	Power Supply DC Power Input; Power Comsumption Max.72W
Operating System	Linux/Windows 7/Windows XP
Test	Vibration: 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration, 11ms duration; Noise:≤60dB

        Installation   1.) Standard Vesa Bracket for Wallmount:      Vesa 100x100mm or 75x75mm  2.) Side Pothook Aide for Cutout Frame Mount                                                        Packaging One Set/One Carton Carton Size : 480x380x340mm Net Weight :  7kg Gross Weight: 8kg Inner carton , outer carton and foam packaging are all customized according to products dimension which provide protection of cargo to great extend during shipment.   Accessories  Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval   Warranty  One year limited warranty   Testing Equipment  Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/ network performance analyis system/oscilloscope)       Certificate  CE / FCC/ Rohs        Advantage Comparing with ordinary panel pc, industrial panel pc has greater stable performance and adapts to different enviroment with defferent feature, e.g.: dust-rich enviroment(ppc with fanless feature); anti-water enviroment(fanless ppc with full IP65 feature); anti-vandal feature(ppc with shielding screen); sunlight readable(ppc with sunlight readable screen); anti-shock and anti-vibration(ppc with rugged shell); wide temperature(ppc with treated motherboard), anti-salty fog( ppc with treated motherboard)...   Application Industrial Panel PC are widely used in various field(testing/food processing/logistics/manufacturing/  tunneling/vehicle terminal...)and mainly used as central control system.      Testing   Food Processing   Logistics   Manufacturing   Tunneling   Vehicle Terminal     Automation       Geshem Brief     ...
