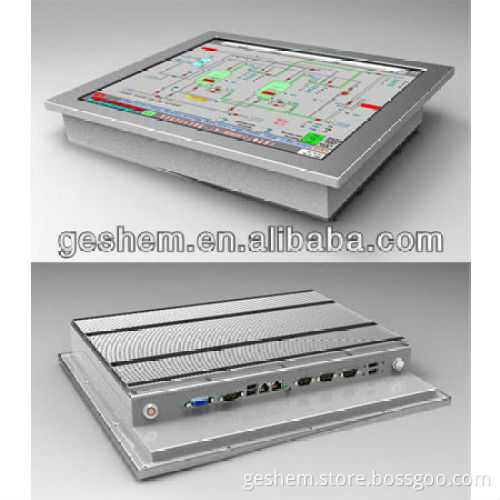

19inches Industrial Tablet PC

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 19' TFT;touch screen;fanless;onboard Intel Atom D525 1.8G; 2G memory(Max. to 4G); 4xUSB2.0; 4xCOM; 1xVGA;2xLAN

Model	PPC-GS1901T
Display Features	19' TFT/support VGA+LVDS; 1024x768; 300cd/m²; 400:1; resistive touch screen
System
Chipset	Intel Atom D525 + Intel®ICH8M
Memory	2G memory (DDRIII), up to 4GB
Hardware Monitoring	Monitoring voltage, temperature, CPU fan speed and etc.
Watchdog Timer	1~255 sec./min. timer system reset/interrupt, setup by software
Storage	1x320GB 2.5' HDD
Ethernet	Chipset 2xRTL8111DL 10/100/1000Mbps/2xRJ45
I/O Interface	4xUSB2.0; 4xCOM; 1xVGA; onboard HD Audio
Mechanical and Enviromental
Dimensions	400x320x60(LxWxH mm)
Weight	6,8kg/7.8kg
IP Level(front panel)	IP65(optional)
Reliability	MTBF ≥ 5000h; MTTR≤0.5h
Temp. and Humidity	Operating Temp.-10°c~50°c; Storage Temp. -20°c~60°c; Operating Humidity 10%~95%, non-condensing
Power	Power Supply DC Power Input; Power Comsumption Max.72W
Operating System	Linux/Windows 7/Windows XP
Test	Vibration: 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration, 11ms duration; Noise:≤60dB

....
