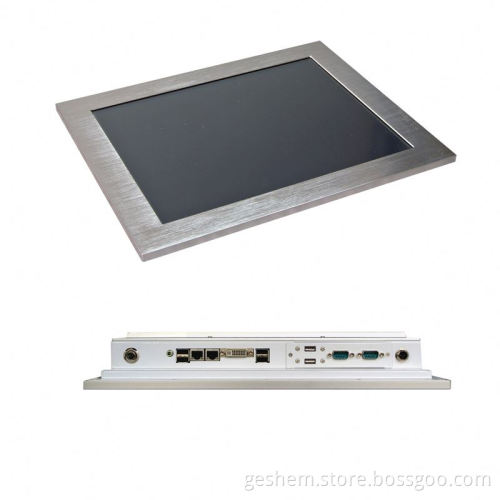

15inche Fanless PPC with Atom N2600 1.66G

Specifications 15inche Fanless PPC with Atom N2600 1.66G

Onboard Intel Atom N2600;

2G Max 4G RAM;

4xUSB2.0/3xCOM; 6xUSB2.0/2xCOM

...

15inche Fanless PPC with Atom N2600 1.66G   Products View             Specification

Model	PPC-GS1504T
Display Feature	15'TFT LCD/Support 1xDVI-I; Resolution 1024x768; Brightness 350cd/m²; Contrast ratio 400:1;  Resistive touch screen(optional)
Chipset	Intel Atom N2600 + NM10
Memory	2G DDRIII , up to 4GB
Hardware Monitor	monitoring voltage,temperature and CPU fan speed
Watchdog Timer	1-255 sec./min. timer system reset/interruption/ setup by software
Storage	8G Cfast(16G/32G Cfast optional,  SSD/HDD optional)
Ethernet	2xRJ45 RTL8111DL 10/100/1000Mbps
I/O Interface	4 or 6xUSB 2.0 ports, 3 or 2x serial ports(1xRS485 optional), 1xDVI-I(supports VGA), line-out
Dimensions	380x300x60mm(LxWxH)
Weight	5.3Kg/6.8Kg
IP Level	IP65 front panel (optional)
Reliability	MTBF≥5000H, MTTR≤0.5H
Operating Temp.	-10°c~50 °c
Storage Temp.	-20°c~60 °c
Operating Humidity	10%~95%,non-condensing
Power Supply	DC Power Input/120W(Max.)
Operating system	Linux/Win7/Win XP
Test	Vibration:5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
	Shock: 10g acceleration, 11ms duration; Noise: ≤ 60dB

      Installation   1.) Standard Vesa Bracket for Wallmount:      Vesa 100x100mm or 75x75mm 2.) Side Pothook Aide for Cutout Frame Mount       Packaging One Set/One Carton Carton Size : 520x450x200mm Net Weight :  5.3kg Gross Weight: 6.8kg Inner carton , outer carton and foam packaging are all customized according to products dimension which provide protection of cargo to great extend during shipment.   Accessories Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval   Warranty One year limited warranty   Testing Equipment Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/ network performance analyis system/oscilloscope)       Certificate CE / FCC/ Rohs       Advantage Comparing with ordinary panel pc, industrial panel pc has greater stable performance and adapts to different enviroment with defferent feature, e.g.: dust-rich enviroment(ppc with fanless feature); anti-water enviroment(fanless ppc with full IP65 feature); anti-vandal feature(ppc with shielding screen); sunlight readable(ppc with sunlight readable screen); anti-shock and anti-vibration(ppc with rugged shell); wide temperature(ppc with treated motherboard), anti-salty fog( ppc with treated motherboard)...   Application Industrial Panel PC are widely used in various field(testing/food processing/logistics/manufacturing/ tunneling/vehicle terminal...)and mainly used as central control system.     Testing   Food Processing   Logistics   Manufacturing   Tunneling   Vehicle Terminal   Automation       Geshem Brief     ...
