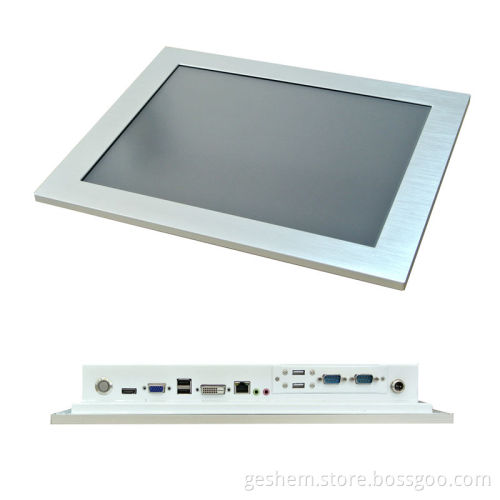

Touch Panel Computer

Specifications Touch Panel Computer

Q67+I3 2100T;RAM Max.to 8G;

4 or2xUSB2.0;2or3xCOM;1xVGA/HDMI/DIV-D;1xLAN;1xAudio;3G&WIFI(optional);

Products View           Specification

Model	PPC-GS1513T
Display Features	15'TFT LCD/Support VGA+LVDS; 1024x768/ 350 cd/m²; 400:1; 5-wire resistive touch screen (optional)
System
Chipset	Q67+I3 2100T
Memory	2G memory(DDRIII), up to 4GB
Hardware Monitoring	Monitoring voltage, temperature, CPU fan speed and etc.
Watchdog Timer	1~255 sec./min. timer system reset/interrupt, setup by software
Storage	1x320GB 2.5'HDD(500 optional)
Ethernet	chipset 1xRJ45 RTL8111DL 10/100/1000Mbps
I/O Interface	4 or 2x USB2.0; 2 or 3xCOM; 1xVGA/DVI-DI/HDMI; onboard HD Audio, MIC-in, Line-in and Speaker-out
Mechanical and Enviormental
Dimensions	380x300x65 (LxWxH mm)
Weight	6.2kg/8.2kg
IP Level(front panel)	IP65(optional)
Reliability	MTBF≥5000h; MTTR≤0.5h
Temp. and Humidity	Operating Temp. -10°c~50°c; Storage Temp. -20°c~60°c; Operating Humidity: 10%~95%, non-condensing
Power	Power Supply DC Power Input; Powr Comsumption: Max.120W
Operating System	Linux/Windows 7/Windows XP
Test	Vibration 5-17Hz/1.00mm ampllitude, 17-200Hz/1.0g acceleration; Shock: 10g acceleration, 11ms duration; Noise ≤ 60dB

            Installation   1.) Standard Vesa Bracket for Wallmount:      Vesa 100x100mm or 75x75mm  2.) Side Pothook Aide for Cutout Frame Mount                                                        Packaging One Set/One Carton Carton Size : 520x450x200mm Net Weight :  6.2kg Gross Weight: 8.2kg Inner carton , outer carton and foam packaging are all customized according to products dimension which provide protection of cargo to great extend during shipment.   Accessories  Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval   Warranty  One year limited warranty   Testing Equipment  Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/ network performance analyis system/oscilloscope)       Certificate  CE / FCC/ Rohs        Advantage Comparing with ordinary panel pc, industrial panel pc has greater stable performance and adapts to different enviroment with defferent feature, e.g.: dust-rich enviroment(ppc with fanless feature); anti-water enviroment(fanless ppc with full IP65 feature); anti-vandal feature(ppc with shielding screen); sunlight readable(ppc with sunlight readable screen); anti-shock and anti-vibration(ppc with rugged shell); wide temperature(ppc with treated motherboard), anti-salty fog( ppc with treated motherboard)...   Application Industrial Panel PC are widely used in various field(testing/food processing/logistics/manufacturing/  tunneling/vehicle terminal...)and mainly used as central control system.      Testing   Food Processing   Logistics   Manufacturing   Tunneling   Vehicle Terminal     Automation       Geshem Brief     ...
