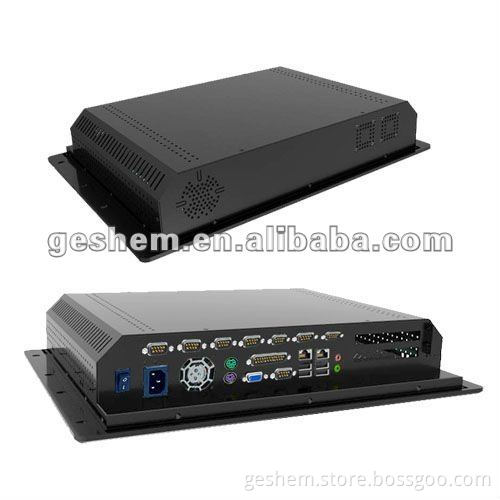

Industrial Touch Panel Computer with 2xPCI expansion

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 15'TFT touch screen; Onboard Intel N270; Max. 4G RAM;4xUSB2.0; 8xCOM;1xVGA;2xLAN;1xLPT;2xPCI

Model	PPC-1502TF
Display Features	15'TFT LCD/Support VGA+LVDS,1024x768,350cd/m²,400:1, resistive touch screen
System
Chipset	Intel N270+Intel®945GSE+ICH7M
Memory	Standard configuration: 2G memory(DDRII),up to 2GB
Hardware Monitoring	Monitoring voltage,temperature, CPU fan speed and etc.
Watchdog Timer	1-255sec/min, timer system reset/interrupt, setup by software
Storage	1x320GB, 2.5'HDD
Ethernet	2x10/100/1000MLAN, 2xRTL8111C PCI-E Gigabit/2xRJ45
I/O Interface	2xUSB2.0; 8xCOM; 2xPS/2 for keyboard/mouse; 1xVGA
Mechanical and Enviromental	Dimensions:482.6x335.5x85.2(LxWxHmm); Weight:6.5kg/7.5kg; IP Level(front panel): IP65(optional); Reliability: MTBF≥5000h; MTTR≤0.5h; Safety:GB4943; Operating Temp.: -10°c~50°c; Storage Temp.: -20°c~60°c; Operating Humidity: 10%~95%, non-condensing
Power	Power Supply: ATX Power Input; Power Consumption: 150W(Max.)
Operating System	Linux/Windows 7/Windows XP
Test
Vibration	5-17Hz/1.00mm amplitude; 17-200Hz/1.0g acceleration
Shock	10g acceleration, 11ms duration(3g for SSD)
EMC	GB9254-2008 Class A
Noise	≤ 60dB

...
