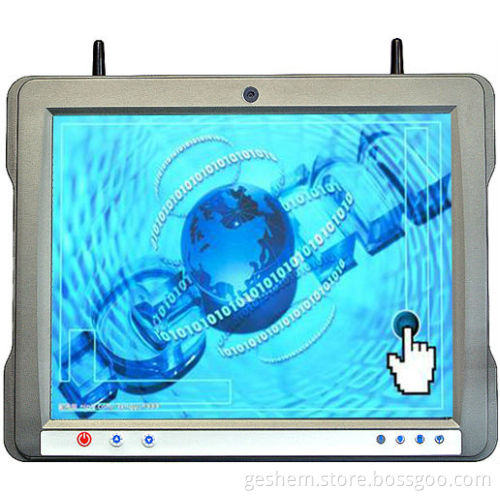

Vehicle-mount Panel PC with wifi

Specifications 12inch TFT,1024x768 , Sunlight readable

N2800 CPU ,2G RAM

CFast Max.128G; WIFI

Optional: 3G/GPS/Bluetooth/Vehicle Docking

Products View     Main Features Intel N2800 1.86G 12inch TFT; Sunlight Readable  Fanless Design WIFI  Bluetooth(Optional)  3G(Optional)  GPS(Optional)  Vehicle Docking(Optional) Battery Pack(Optional)     Specification

Model	PPC-GS1228TA
Display Feature	12inch TFT LCD Screen with resistive touch;1024x768;Sunlight Readable
Chipset	Intel N2800 1.86GHz Dual Core  + ICH10R
Memory	Onboard DDR3 2G
Storage	CFast:Max.128GB
Ethernet	2xRJ45 10/100/1000Mbps; WIFI
I/O Interface	4xUSB2.0;3xRS232(RS422/485 optional); 2xRJ45 1000M; Line in/out; Camera Front 1.3M,Back 3.0M; DC 9~36V DC Input
Dimensions	308x238x60mm(LxWxH)
Weight	3.3Kg/4.6Kg
Shock Protection	IEC 60068-2-27 50 G @ wall mount, half sine, 11 ms
Vibration Protection	IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.) 2 Grms @ 5 ~ 500 Hz
IP Level	IP64
Reliability	MTBF≥50000H, MTTR≤0.5H
Operating Temp.	-10°c~50 °c @ 5 ~ 85% RH
Storage Temp.	-20°c~60 °c
Operating Humidity	95% @40°C, non-condensing
Power Supply	DC 9~36V DC Input
Operating system	Linux/Win7/Win XP
Material	Magnalium, fanless design
Color	Calx

      Installation   1.) Standard Vesa Bracket for Wallmount:      Vesa 100x100mm or 75x75mm 2.) Side Pothook Aide for Cutout Frame Mount       Packaging One Set/One Carton Carton Size : 308x238x60mm(LxWxH) Net Weight :  3.3kg(not including internal battery) Gross Weight:  4.6kg(not including internal battery) Inner carton , outer carton and foam packaging are all customized according to products dimension which provide protection of cargo to great extend during shipment.   Accessories Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval   Warranty One year limited warranty   Testing Equipment Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/ network performance analyis system/oscilloscope)       Certificate CE / FCC/ Rohs       Advantage Comparing with ordinary panel pc, industrial panel pc has greater stable performance and adapts to different enviroment with defferent feature, e.g.: dust-rich enviroment(ppc with fanless feature); anti-water enviroment(fanless ppc with full IP65 feature); anti-vandal feature(ppc with shielding screen); sunlight readable(ppc with sunlight readable screen); anti-shock and anti-vibration(ppc with rugged shell); wide temperature(ppc with treated motherboard), anti-salty fog( ppc with treated motherboard)...   Application Industrial Panel PC are widely used in various field(testing/food processing/logistics/manufacturing/ tunneling/vehicle terminal...)and mainly used as central control system.     Testing   Food Processing   Logistics   Manufacturing   Tunneling   Vehicle Terminal   Automation       Geshem Brief       ....
