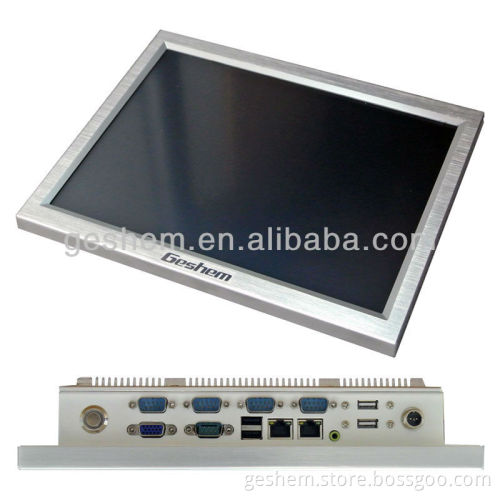

Industrial Touch Panel PC

Products View           Specification

Model	PPC-GS1201T
Display Features	12'' TFT/Support VGA+LVDS; 1024x768; 350cd/m²; 400:1; touch screen
System
Chipset	Intel Atom D525+Intel®ICH8M
Memory	2G Memory(DDRIII),up to 4GB
Hardware Monitoring	Monitoring Voltage, temperature, CPU fan speed and etc.
Watchdog Timer	1~255sec./min. timer system reset/interrupt, setup by software
Storage	1x320GB 2.5''HDD
Ethernet	2xRTL8111DL 10/100/1000Mbps/2xRJ45
I/O Interface	4xUSB2.0; 5xCOM; 1xPS/2(KB/MS); 1xVGA
Mechanical and Enviromental
Dimensions	380x300x60(LxWxH,mm)
IP Level(front panel)	IP65(optional)
Reliability	MTBF≥5000h; MTTR≤0.5h
Operating Temp.	-10°c~50°c
Storage Temp.	-20°c~60°c
Operating Humidity	10%~95%; non-condensing
Power	Power Supply: DC Power Input, Power Comsumpiton: Max. 120W

      Installation   1.) Standard Vesa Bracket for Wallmount:      Vesa 100x100mm or 75x75mm 2.) Side Pothook Aide for Cutout Frame Mount       Packaging One Set/One Carton Carton Size : 430x190x340mm Net Weight : 3.65kg Gross Weight: 5.36kg Inner carton , outer carton and foam packaging are all customized according to products dimension which provide protection of cargo to great extend during shipment.   Accessories Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval   Warranty One year limited warranty   Testing Equipment Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/ network performance analyis system/oscilloscope)       Certificate CE / FCC/ Rohs       Advantage Comparing with ordinary panel pc, industrial panel pc has greater stable performance and adapts to different enviroment with defferent feature, e.g.: dust-rich enviroment(ppc with fanless feature); anti-water enviroment(fanless ppc with full IP65 feature); anti-vandal feature(ppc with shielding screen); sunlight readable(ppc with sunlight readable screen); anti-shock and anti-vibration(ppc with rugged shell); wide temperature(ppc with treated motherboard), anti-salty fog( ppc with treated motherboard)...   Application Industrial Panel PC are widely used in various field(testing/food processing/logistics/manufacturing/ tunneling/vehicle terminal...)and mainly used as central control system.     Testing   Food Processing   Logistics   Manufacturing   Tunneling   Vehicle Terminal   Automation       Geshem Brief       ....
