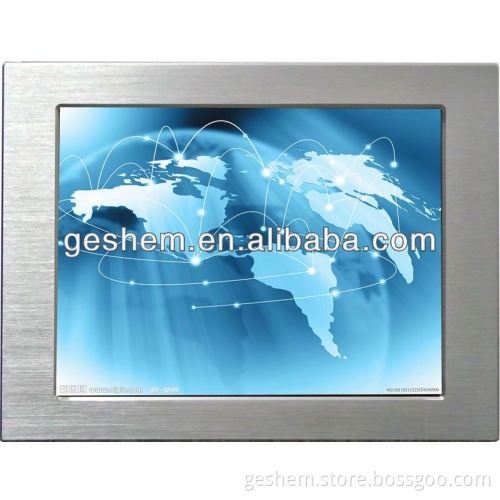

Human Machine Interface with touch screen

Specifications Human Machine Interface with touch screen

FANLESS Design

ATOM N2600,1.6G

2G Memory

4xUSB2.0,4xCOM,2xLAN,1xDVI-I

Human Machine Interface with touch screen   Products View           Specification

Model	PPC-GS1004T
Display Features	10″TFT LED Screen ; 1024x768; 350cd/m²;600:1;resistive touchscreen
System
Chipset	Intel Atom N2600 1.6G + ICH8
Memory	2G DDRII  MAX 4G
Watchdog Timer	Software Programmable 1~256sec./min. System reset
Storage	16GB/32GB CFAST; SSD/HDD optional
Ethernet	10/100/1000Mbps/2xRJ45, WIFI Optional
I/O Interface	2xUSB2.0;4xCOM(3xRS232,1xRS422/485); 2xRJ45 1000M; 1xDVI-I
Enviroment
Shock	IEC 60068-2-27 50 G @ wall mount, half sine, 11 ms
Vibration	IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.) 2 Grms @ 5 ~ 500 Hz
Reliability	MTBF≥30000h; MTTR≤0.5h
Operating Temp.	-20°c~60°c @ 5 ~ 85% RH. (with air flow)
Storage Temp.	-20°c~60°c
Operating Humidity	95% @40°C, non-condensing
Power	12V DC Power Input
O/S	Linux/ Windows 7/XP
Structure
Dimensions	260 x 200 x 60    (LxWxH mm)
Weight	2.5kg/4.0kg
Material	FANLESS Design ,Aluminium alloy front panel IP65(optional)
Color	Slivery/Black/white

      Installation   1.) Standard Vesa Bracket for Wallmount:      Vesa 100x100mm or 75x75mm  2.) Side Pothook Aide for Cutout Frame Mount                                                          Packaging One Set/One Carton Carton Size : 290x190x340mm Net Weight :  2.35kg Gross Weight: 3.5kg Inner carton , outer carton and foam packaging are all customized according to products dimension which provide protection of cargo to great extend during shipment.   Accessories  Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval   Warranty  One year limited warranty   Testing Equipment  Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/ network performance analyis system/oscilloscope)       Certificate  CE / FCC/ Rohs        Advantage Comparing with ordinary panel pc, industrial panel pc has greater stable performance and adapts to different enviroment with defferent feature, e.g.: dust-rich enviroment(ppc with fanless feature); anti-water enviroment(fanless ppc with full IP65 feature); anti-vandal feature(ppc with shielding screen); sunlight readable(ppc with sunlight readable screen); anti-shock and anti-vibration(ppc with rugged shell); wide temperature(ppc with treated motherboard), anti-salty fog( ppc with treated motherboard)...   Application Industrial Panel PC are widely used in various field(testing/food processing/logistics/manufacturing/  tunneling/vehicle terminal...)and mainly used as central control system.      Testing   Food Processing   Logistics   Manufacturing   Tunneling   Vehicle Terminal     Automation       Geshem Brief           ....
