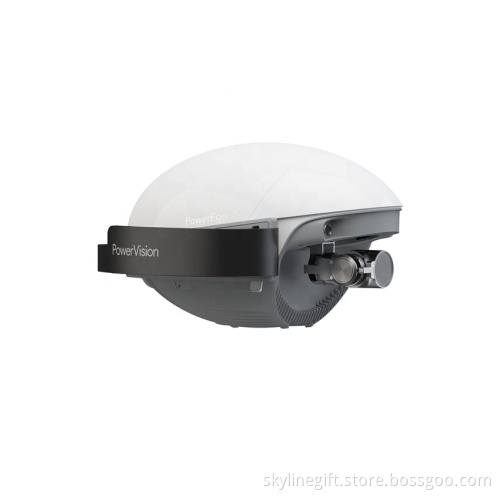

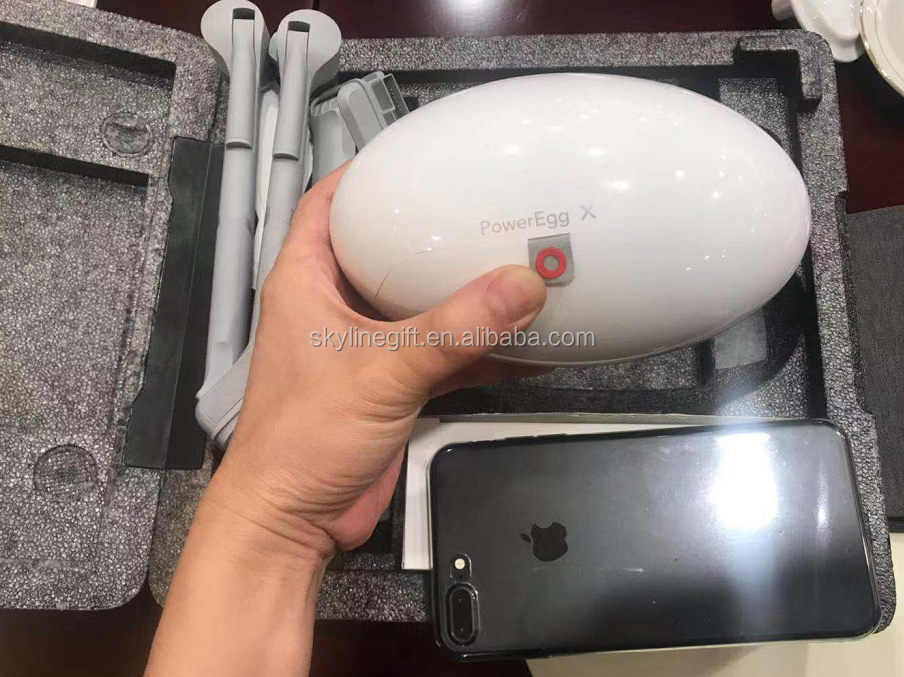

POWERVISON New Arrival PowerEgg X three-axis gimbal 1080P real-time image transmission control distance 6km AI camera mode

Tips:
1. If the buyer does not require specific courier/logistics company before our shipment, we will ship the goods accoring to the default shipping channel.

2. We can send the goods to buyer address but not including destination country’s customs clearance and taxes/duty service.

3.We don't accept goods return or refund if it's not product itself problem.

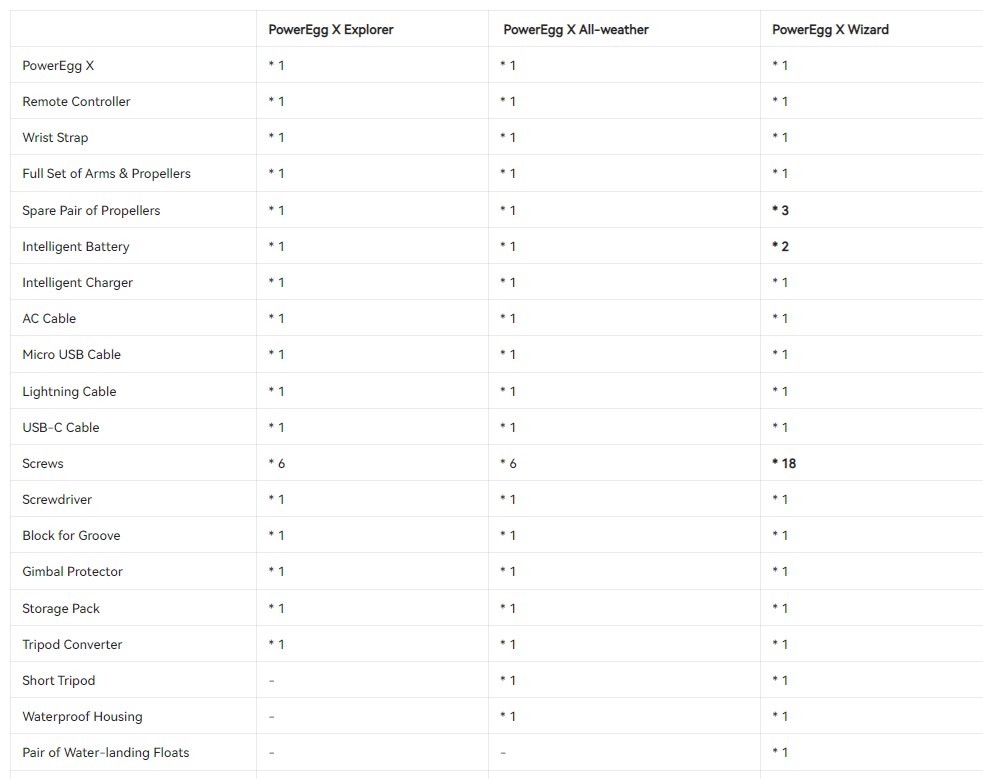

 2 Versions of this drone for your options as below

PowerEgg X Explore Version

PowerEgg X Wizard Version

Contact me freely if you need this drone and parts

Tel: +86 755 36887751

Cell phone: +86 18665315708

What'sapp: +86 18665315708

Wechat: +86 18665315708

Skype: rita_xian

 AI camera mode
Weight 520g

Size:165 × 100 × 100 mm

Operating hours: 4 Hours

Operating ambient temperature: 0 ° C to 40 ° C

Working frequency FCC / IC: 2412 ~ 2462MHz
CE: 2412 ~ 2472MHz
SRRC: 2412 ~ 2472MHz
MIC: 2412 ~ 2472MHz

Transmit power (AI camera mode) CE (EIRP): ≤18.2dBm FCC: ≤21dBm IC: ≤21dBm
MIC: ≤10mw / MHz SRRC (EIRP): ≤20dBm

Camera
Image sensor 1 / 2.8-inch CMOS; effective pixels over 12 million

Lens angle of view: 78.4 °
Equivalent focal length: 27mm
Aperture: f / 1.8
Fixed focus lens Focus distance: 1 m to ∞

ISO range video: 100-3200
Photos: 100 – 6400

Electronic shutter speed 8 – 1/8000 s

Maximum photo size 4000 × 3000

Photo shooting mode
Burst: 3/5/7
Auto bracketing (AEB): 3/5 shots @ 0.7EV steps
Time-lapse shooting (interval: 3/5/7/10/15/30/60 seconds)

Video size 4K: 3840 × 2160 24/25/30/48/50 / 60p
FHD: 1920 × 1080 24/25/30/48/50/60 / 120p
HD: 1280 × 720 24/25/30/48/50/60/120 / 240p

Maximum video bit rate 75 Mbps

Supports file system FAT32 (≤32 GB); exFAT (> 32 GB)

Picture format JPEG / RAW

Video format MP4 / MOV (H.265 video / H.264 / MPEG-4 AVC)

6G onboard memory

Support memory card type Micro SD card;
Micro SD card with a maximum capacity of 128GB and a transmission speed of Class10 or higher or UHS-3 rating

Remote control
Working frequency FCC / IC: 2412 ~ 2462MHz
CE: 2412 ~ 2472MHz
SRRC: 2412 ~ 2472MHz
MIC: 2412 ~ 2472MHz

Maximum signal effective distance FCC: 6km; CE: 3km; SRRC: 3km

Working ambient temperature: 0 ℃ – 40 ℃

Transmit power (EIRP) CE (EIRP): ≤18.3dBm
FCC: ≤27dBm
IC: ≤27dBm
MIC: ≤10mw / MHzSRRC (EIRP): ≤20dBm

Built-in battery 3500 mAh

Operating current / voltage 1700 mA @ 3.7 V (with USB connected to mobile phone)

Support mobile device interface types: Lighting, Micro USB, USB-C

Mobile device bracket equipment width range 65mm-84mm (6 inches and less)
Support device thickness: within 8.3mm

Gimbal
Controllable rotation range (in drone mode) Pitch operation: -90 ° to + 20 °.

Controllable rotation range (in AI camera mode) Tilt operation: -90 ° to + 20 °. Horizontal: -55 ° to +55 °

Charger
Input 100-240 V, 50/60 Hz

Output battery interface: 13.3 V = 3.76 A
USB-A interface: 5 V =2 A

5 V

Rated power 50 W

Intelligent battery
Energy 43.32Wh

Capacity 3800 mAh

Nominal voltage 11.4 V

Charging limit voltage 13.2V

Battery type LiPo 3S

Weight 235g

Charging ambient temperature: 10 ℃-45 ℃

Maximum charging power: 50W
