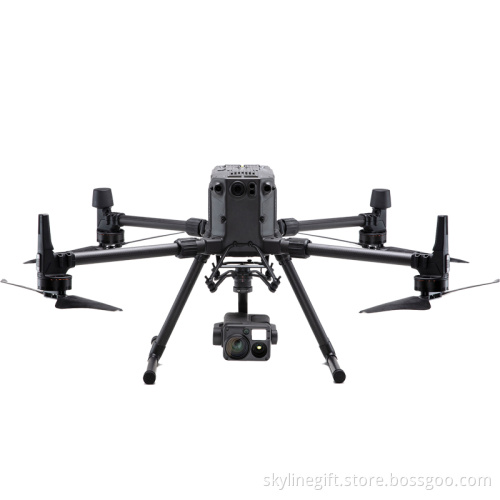

DJI Matrice 300 RTK Drone Industrial UAV IP45 Waterproof Max Payload 2.7KG M300 RTK with 15km FPV Distance 55 Mins Flying time

Aircraft

• Dimensions

  Unfolded, propellers excluded, 810×670×430 mm (L×W×H)
  Folded, propellers included, 430×420×430 mm (L×W×H)

• Diagonal Wheelbase: 895 mm



• Weight (with single downward gimbal)

  Approx. 3.6 kg (without batteries)
  Approx. 6.3 kg (with two TB60 batteries)

• Max Payload: 2.7kg

• Max Takeoff Weight: 9kg

• Operating Frequency

  2.4000-2.4835 GHz
  5.725-5.850 GHz

• EIRP

  2.4000-2.4835 GHz:
  29.5 dBm (FCC); 18.5dBm (CE)
  18.5 dBm (SRRC); 18.5dBm (MIC)

  5.725-5.850 GHz:
  28.5 dBm (FCC); 12.5dBm (CE)
  28.5 dBm (SRRC)

• Hovering Accuracy (P-mode with GPS)

  Vertical:
  ±0.1 m (Vision System enabled)
  ±0.5 m (GPS enabled)
  ±0.1 m (RTK enabled)

  Horizontal:
  ±0.3 m (Vision System enabled)
  ±1.5 m (GPS enabled)
  ±0.1 m (RTK enabled)

• RTK Positioning Accuracy

  When RTK enabled and fixed:
  1 cm+1 ppm (Horizontal)
  1.5 cm + 1 ppm (Vertical)

• Max Angular Velocity: Pitch: 300°/s, Yaw: 100°/s

• Max Pitch Angle

  30° (P-mode, Forward Vision System enabled: 25°)

• Max Ascent Speed

  S mode: 6 m/s
  P mode:5 m/s

• Max Descent Speed (vertical)

  S mode: 5 m/s
  P mode:3 m/s

• Max Descent Speed (tilt)

  S Mode: 7 m/s

• Max Speed

  S mode: 23 m/s
  P mode:17 m/s

• Service Ceiling Above Sea Level

  5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)

• Max Wind Resistance: 15m/s

• Max Flight Time: 55 min

• Supported DJI Gimbals

  Zenmuse XT2/XT S/Z30/H20/H20T

• Supported Gimbal Configurations

  Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals

• Ingress Protection Rating: IP45

• GNSS: GPS+GLONASS+BeiDou+Galileo

• Operating Temperature

  -20°C to 50°C (-4°F to 122° F)

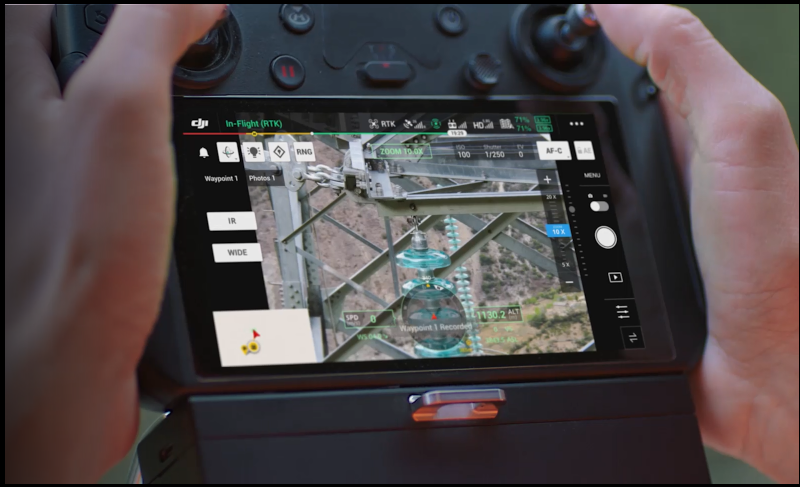

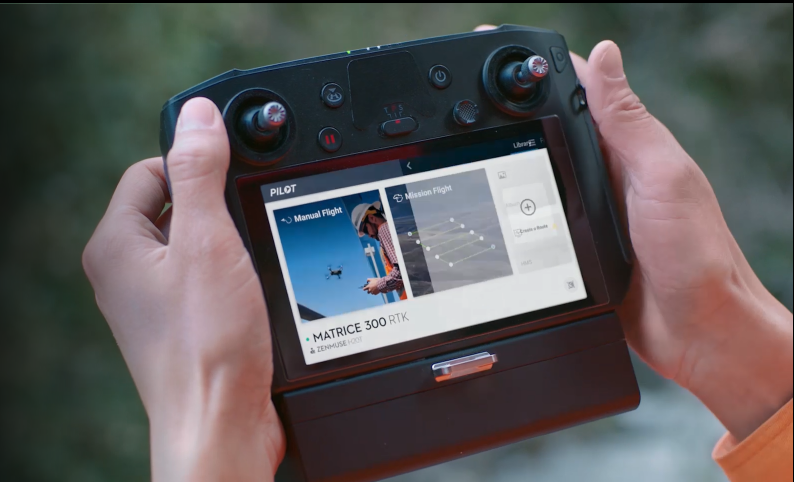

Remote Controller

• Operating Frequency

  2.4000-2.4835 GHz
  5.725-5.850 GHz

• Max Transmitting Distance (unobstructed, free of interference)

  NCC/FCC: 15 km
  CE/MIC: 8 km
  SRRC: 8 km

• EIRP

  2.4000-2.4835 GHz:
  29.5 dBm (FCC) 18.5dBm (CE)
  18.5 dBm (SRRC); 18.5dBm (MIC)

  5.725-5.850 GHz:
  28.5 dBm (FCC); 12.5dBm (CE)
  20.5 dBm (SRRC)

• External battery

  Name: WB37 Intelligent Battery
  Capacity: 4920 mAh
  Voltage: 7.6V
  Type: LiPo
  Energy: 37.39Wh
  Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C)

• Built-in battery

  Type: 18650 lithium ion battery (5000 mAh @ 7.2 V)
  Charging: Use a USB charger with specification of 12V / 2A
  Rated power: 17 W
  Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A)

• Battery Life

  Built-in battery: Approx. 2.5h
  Built-in battery+External battery: Approx. 4.5h

• USB Power Supply

  5 V / 1.5 A

• Operating Temperature

  -20°C to 40°C (-4 °F to 104 °F)

  Vision System

  Obstacle Sensing Range
  Forward/Backward/Left/Right: 0.7-40m
  Upward/Downward: 0.6-30m
  FOV
  Forward/Backward/Downward: 65° (H), 50° (V)
  Left/Right/Upward: 75°(H), 60°(V)
  Operating Environment
  Surfaces with clear patterns and adequate lighting (> 15 lux)
  Infrared ToF Sensing System
  Obstacle Sensing Range
  0.1-8m
  FOV
  30° (±15°)
  Operating Environment
  Large, diffuse and reflective obstacles (reflectivity >10%)
  Top and bottom auxiliary light
  Effective lighting distance:5m
  FPV Camera
  Resolution: 960p
  FOV: 145°
  Frame rate: 30 fps


  Intelligent Flight Battery
  Name: TB60
  Capacity: 5935 mAh
  Voltage: 52.8v
  Battery Type: LiPo 12S
  Energy: 274 Wh
  Net Weight: Approx. 1.35 kg
  Operating Temperature
  -4°F to 122°F (-20°C to 50°C)
  Ideal storage temperature
  71.6°F to 86°F (22°C to 30°C)
  Charging Temperature
  -4°F to 104°F (-20°C to 40°C)
  (When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
  Charging time
  Using BS60 Intelligent Battery Station:
  220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
  110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)

  BS60 Intelligent Battery Station
  Dimensions: 501*403*252mm
  Net Weight: 8.37kg
  Maximum Capacity
  TB60 Intelligent Flight Battery × 8
  WB37 Intelligent Battery × 4
  Input: 100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz
  Max. Input Power: 1070W
  Output Power
  100-120 V: 750 W
  220-240 V: 992 W
  Operating Temperature
  -4°F to 104°F (-20°C to 40°C)
