Matrice 350 RTK Drones E-Port Development Kit wholesale
-
$59.001-99 piece
-
$55.00100-4999 piece
-
$25.00≥5000 piece
- Min. Order:
- 1 piece
- Min. Order:
- 1 piece
- Port:
- Shenzhen Port / Hongkong Port
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Supply Ability: | 10000 Set/Sets per Month |
|---|---|
| Payment Type: | Western Union,T/T |
| Port: | Shenzhen Port / Hongkong Port |
Product Description
Product Description
Specification
Item Name | Matrice 350 RTK E-Port Development Kit |
Advantage | Convert the aircraft E-Port into multiple standard hardware ports. Convenient for connecting hardware equipment, SDK development, and debugging. |
In the box | E-Port Adapter Board × 1 Pin Header Protector × 1 E-Port Coaxial Cable (150 mm) × 1 XT30 to USB-C Power Cable (300 mm) × 1 XT30 to DC5.5 Power Cable (300 mm) × 1 |
Compatibility | Matrice 350 RTK Matrice 300 RTK Matrice 30/30T Mavic 3E/3T |
Package | Carton |
Condition | New Original Brand |
Take a Closer Look
Overview

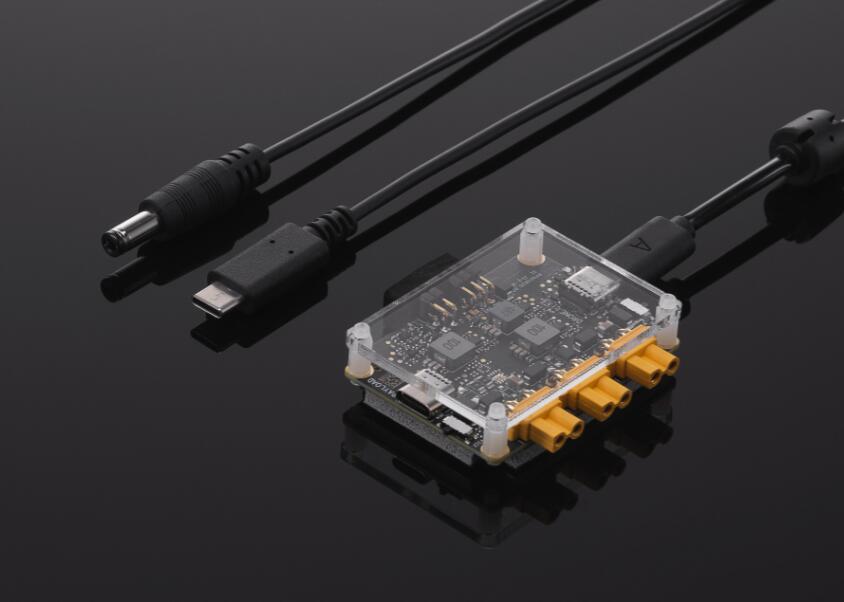

The development kit can convert the E-Port of the aircraft into multiple standard hardware ports like the XT30 Power Output Ports, USB 2.0 Port, and UART/PPS Signal Port, making it convenient for developers to connect hardware equipment and perform SDK development and debugging.
Tips
1. When using the adapter board, make sure to place it in an appropriate position to avoid short circuits caused by contact
between the adapter board and the aircraft arm.
2. If the adapter board is integrated into a payload product, make sure to design a heat dissipation system and a metal shielding cover.
3. If any sparks, smoke, strange smells, or other abnormalities are detected, disconnect the adapter board from the power source immediately.
4. When all three XT30 power ports are used, the total output power should be smaller than the max output power of the aircraft. Make sure to develop payloads within the output specifications.
In The Box

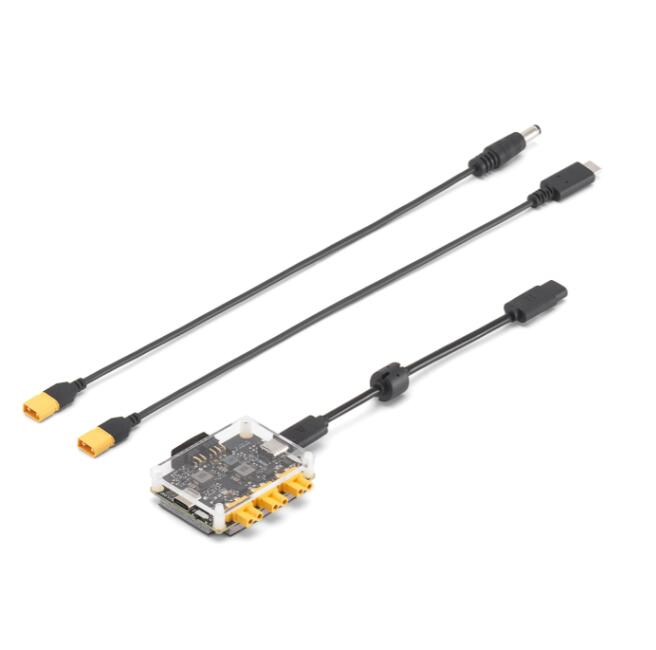

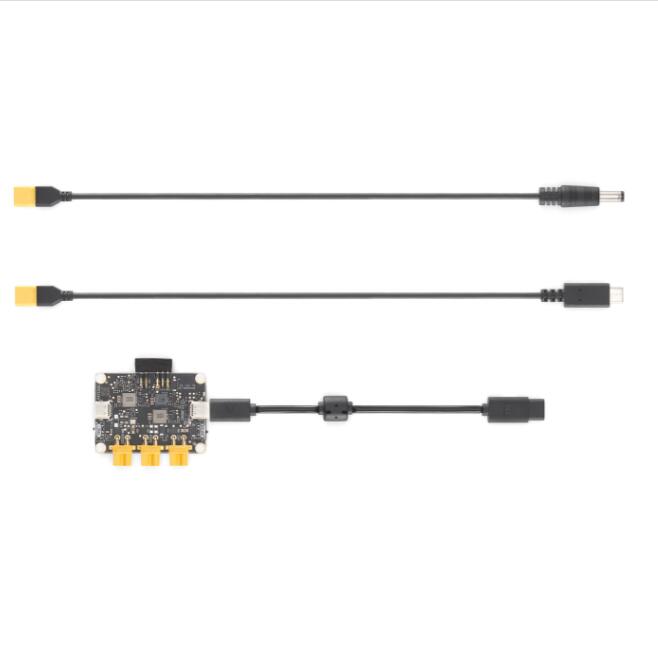

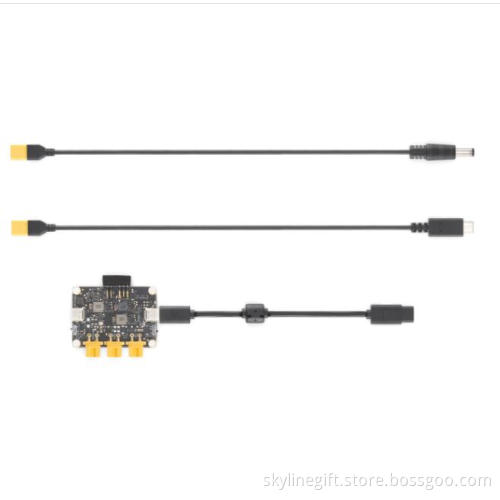

E-Port Adapter Board × 1
Pin Header Protector × 1
E-Port Coaxial Cable (150 mm) × 1
XT30 to USB-C Power Cable (300 mm) × 1
XT30 to DC5.5 Power Cable (300 mm) × 1
Specifications
Adapter Board Dimensions: 55×40×9 mm (L×W×H)
XT30 VCC Power Output:
DJI Mavic 3E/3T: 12-17.6 V/4 A
Matrice 30 Series: 19.2-26.1 V/4 A
Matrice 300 RTK: 24 V/4 A
Matrice 350 RTK: 24 V/4 A
XT30 12V Power Output: 12 V/2 A
XT30 5V Power Output: 5 V/2 A
Compatibility
Matrice 350 RTK
Matrice 300 RTK
Matrice 30/30T
Mavic 3E/3T
Overview
The development kit can convert the E-Port of the aircraft into multiple standard hardware ports like the XT30 Power Output Ports, USB 2.0 Port, and UART/PPS Signal Port, making it convenient for developers to connect hardware equipment and perform SDK development and debugging.
Tips
1. When using the adapter board, make sure to place it in an appropriate position to avoid short circuits caused by contact
between the adapter board and the aircraft arm.
2. If the adapter board is integrated into a payload product, make sure to design a heat dissipation system and a metal shielding cover.
3. If any sparks, smoke, strange smells, or other abnormalities are detected, disconnect the adapter board from the power source immediately.
4. When all three XT30 power ports are used, the total output power should be smaller than the max output power of the aircraft. Make sure to develop payloads within the output specifications.
In The Box
E-Port Adapter Board × 1
Pin Header Protector × 1
E-Port Coaxial Cable (150 mm) × 1
XT30 to USB-C Power Cable (300 mm) × 1
XT30 to DC5.5 Power Cable (300 mm) × 1
Specifications
Adapter Board Dimensions: 55×40×9 mm (L×W×H)
XT30 VCC Power Output:
DJI Mavic 3E/3T: 12-17.6 V/4 A
Matrice 30 Series: 19.2-26.1 V/4 A
Matrice 300 RTK: 24 V/4 A
Matrice 350 RTK: 24 V/4 A
XT30 12V Power Output: 12 V/2 A
XT30 5V Power Output: 5 V/2 A
Compatibility
Matrice 350 RTK
Matrice 300 RTK
Matrice 30/30T
Mavic 3E/3T
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Our company was founded in 2011, we sell Drones, Joys for more than 11 years. Our products had hot sold on AliExpress, Alibaba and other platforms. We have outstanding professional product knowledge coupled with a skillful technical base. Customers satisfaction and obvious pleasure is of great importance to us however we still strive to be innovative with our various new model. With well-equipped company facilities and excellent Quality Control throughout all stages of production, our goal is to guarantee total customer satisfaction.
FAQ
Q: What if it does not fly balance ?
A: When the drone is offset during flight, you can click on the Fine-tune button of reverse direction until the problem is solved.
Q: What if the drone can’t take off ?
A: Check the propeller to make sure it was installed correctly(diagonal propellers must be the same direction ).
Q:How many battery of this drone?
A:It depends on the version you choose.If you choose the version like 3batteries,it includes battery sperately and one battery in the drone.
