MAX 4N Autel Robotics EVO 4T Thermal Imaging Camera Mapper UAV Drone Night Defense Safety Version Altar PRO Autel EVO MAX 4N

MAX 4N Autel Robotics EVO 4T Thermal Imaging Camera Mapper UAV Drone Night Defense Safety Version Altar PRO Autel EVO MAX 4N

$11590.00

1-4 piece
$10990.00

5-49 piece
$9998.00

≥50 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,T/T

Product Description

MAX 4N Autel Robotics EVO 4T Thermal Imaging Camera Mapper UAV Drone Night Defense Safety Version Altar PRO Autel EVO MAX 4N

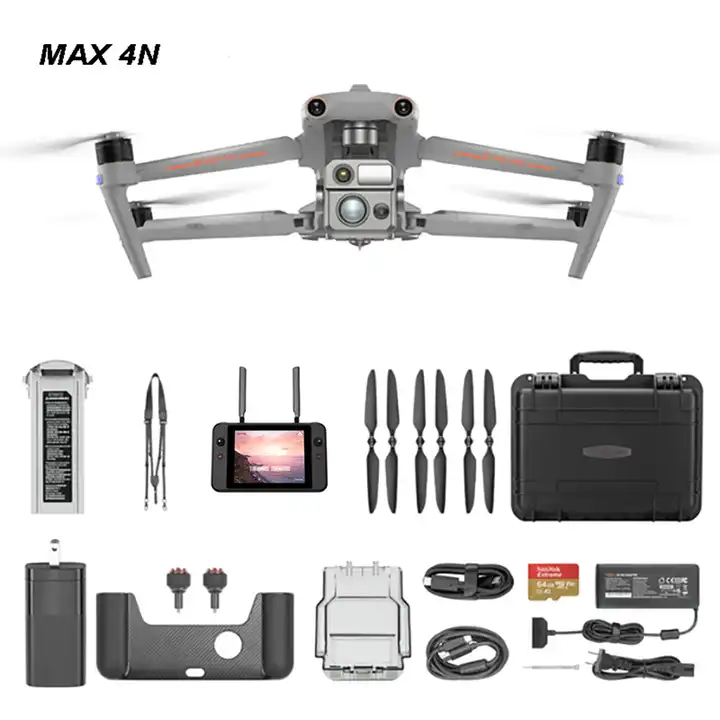

Packing List For Autel EVO Max 4N

1:Aircraft (Battery, propeller, gimbal, gimbal cover, 64G SD card included)*1
2:Battery Charger + Power Cable*1
3:Spare Propeller (pair)*1

4:screwdriver*1
5:Smart Controller V3(sticks included)*1
6:Smart Controller Lanyard*1

7:Smart Controller Cover*1

8:Smart Controller Spare Joystick (pair)*1
9:RC Charger*1

10.RC Charging Cable*1

11:Data Cable*1

12:Documentation

-Packing List*1
-Quick Start Guide*1

13: Rugged Case

MAX 4N Autel Robotics EVO 4T Thermal Imaging Camera Mapper UAV Drone Night Defense Safety Version Altar PRO Autel EVO MAX 4N

Contact:

MAX 4N Autel Robotics EVO 4T Thermal Imaging Camera Mapper UAV Drone Night Defense Safety Version Altar PRO Autel EVO MAX 4N

Aircraft
Weight	3.62 lbs (1641g, battery and gimbal included)
Dimensions	562651147 mm (unfolded, incl. propellers) 318400147 mm (unfolded, excl. propellers) 257145131 mm (folded, excl. propellers)
Diagonal Wheelbase	1.53 ft (466mm)
Max Ascent Speed	8m/s
Max Descent Speed	6m/s
Max Service Ceiling Above Sea Level	13,124ft (4000m)
Max Flight Time (windless)	42 mins
Max Hovering Time (windless)	38 mins
Max Wind Resistance	27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
IP Rating	IP43
Max Tilt Angle	35°
Max Angular Velocity	Pitch: 300°/s; Yaw: 120°/s
Operating Temperature	-4°F to 122°F (-20℃ - 50℃)
Wi-Fi Protocol	802.11a/b/g/n/ac/ax Support 2 x 2 MIMO Wi-Fi
Wi-Fi Transmitter Power (EIRP)	2.400 - 2.4835 GHz FCC:<30dBm; CE/SRRC/MIC:
Gimbal
Mechanical Range	Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100°
Controllable Range	-90° to 45°
Stable system	3-axis mechanical gimbal (pitch, tilt, roll)
Max Control Speed (pitch)	200º/s
Angular Vibration Range	<0.005°
Night version Camera
Sensor	Effective Pixels: 2.3M
Lens	Focal Length: 35mm (equivalent 41.4mm) FOV:52° Zoom Range: 1-8x, supports linkage zoom
Photo Format	JPG
Photo Resolution	1920×1200
Video Format	MP4
Video Resolution	20Mbps (1920×1200 P30)
HDR Video	Auto
Video Output	Super Sensitive Mode: 1920×1200 P30
Wide Angle Camera
Sensor	1/1.28 CMOS, Effective pixels: 50M
Lens	DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus
Thermal Camera
Thermal Imager	Uncooled VOx Microbolometer
Lens	DFOV: 64° Aperture: 13mm Focus: f/1.2
Video Resolution	640*512
Photo Size	640*512
Pixel Pitch	12 um
Temperature Measurement Method	Center measurement, pot measurement, rectangular measurement
Temperature Measurement Range	-4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)

Send your message to this supplier

* From:
* To:

Ms. Rita Xian
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Evo Max 4n , Evo Max 4t , Autel Drone
