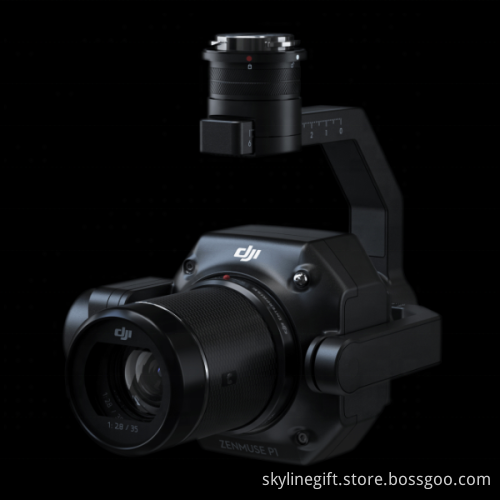

DJI ZENMUSE P1 Gimbal camera with 45MP full-frame sensor for M300 RTK Drone

DJI ZENMUSE P1 Gimbal camera with 45MP full-frame sensor for M300 RTK Drone

$6500.00 - $15999.00/piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	10 Piece/Pieces per Week
Payment Type:	Western Union,T/T,Alipay
Port:	shenzhen

Product Description

DJI ZENMUSE P1 Gimbal camera with 45MP full-frame sensor for M300 RTK Drone

Product Description

DJI ZENMUSE P1 Gimbal camera with 45MP full-frame sensor for M300 RTK Drone

Specs

General

Product Name

Zenmuse P1

Dimensions

198×166×129 mm

Weight

Approx. 787 g

Power

13 W

IP Rating

IP4X

Supported Aircraft

Matrice 300 RTK

Operating Temperature Range

-20° to 50° C (-4° to 122° F)

Storage Temperature Range

-20° to 60° C (-4° to 140° F)

Absolute Accuracy

Horizontal: 3 cm, Vertical: 5 cm *

* Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.

Camera

Sensor

Sensor size (Still): 35.9×24 mm (Full frame)

Sensor size (Max video recording area): 34×19 mm

Effective Pixels: 45MP

Pixel size: 4.4 μm

Supported Lenses

DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84°

DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5°

DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°

Supported SD Cards

SD: UHS-1 rating or above; Max capacity: 128 GB

Storage Files

Photo / GNSS Raw Observation Data/ Image Log File

Photo Size

3:2 (8192×5460)

Operation Modes

Capture, Record, Playback

Minimum photo interval

0.7 s

Shutter Speed

Mechanical Shutter Speed: 1/2000-1/8 s

Electronic Shutter Speed: 1/8000-8 s

Aperture Range

f/2.8-f/16

ISO Range

Photo: 100-25600

Video: 100-3200

Video

Video Format

MP4

Video Resolution

16:9 (3840×2160)

Frame Rate

60fps

Gimbal

Stabilized System

3-axis (tilt, roll, pan)

Angular Vibration Range

0.01°

Mount

Detachable DJI SKYPORT

Mechanical Range

Tilt: -125° to +40°; Roll: -55° to +55°; Pan: ±320°

Packaging & Shipping

Zenmuse P1 camera*1

FAQ

*What's the resolution of the photos taken by the P1?
The P1 takes photos with a resolution of 8192 * 5460, or approximately 45 megapixels.

*Which image/video formats are supported?
The P1 supports the following image/video formats:
Images: JPEG, JPEG+DNG;
Videos: MP4.

*What's the shortest continuous shooting interval of the camera?
The shortest continuous shooting interval of the P1 is 0.7 seconds.

*What's the mechanical shutter speed range of the P1?
1/2000s — 1/8s.

*What's the single pixel size of the P1?
The single pixel size of the P1 is 4.4μm.

*Which lenses does the P1 support?
The P1 supports 24mm, 35mm and 50mm lenses with DL mounts.

*Are there other lenses available for the P1?
No, currently the P1 supports only three industry-specific lenses. The lenses of the P1 are optimized for surveying and mapping scenarios, including optical parameter writing, lens performance recording, and reminders. Lenses with other DL mounts can take photos and videos manually when installed on the the Zenmuse P1 camera but cannot support surveying and mapping.

*Which drones support the the P1? On which gimbal port can it be installed?
Currently, only the The M300 RTK supports the P1. The P1 can be installed only on the No. 1 gimbal port while the The M300 RTK is in Single Gimble mode.

*Which position is recorded by the photos taken by the P1?
In photos taken by the P1, the exit pupil position at the center of the camera lens is recorded.
