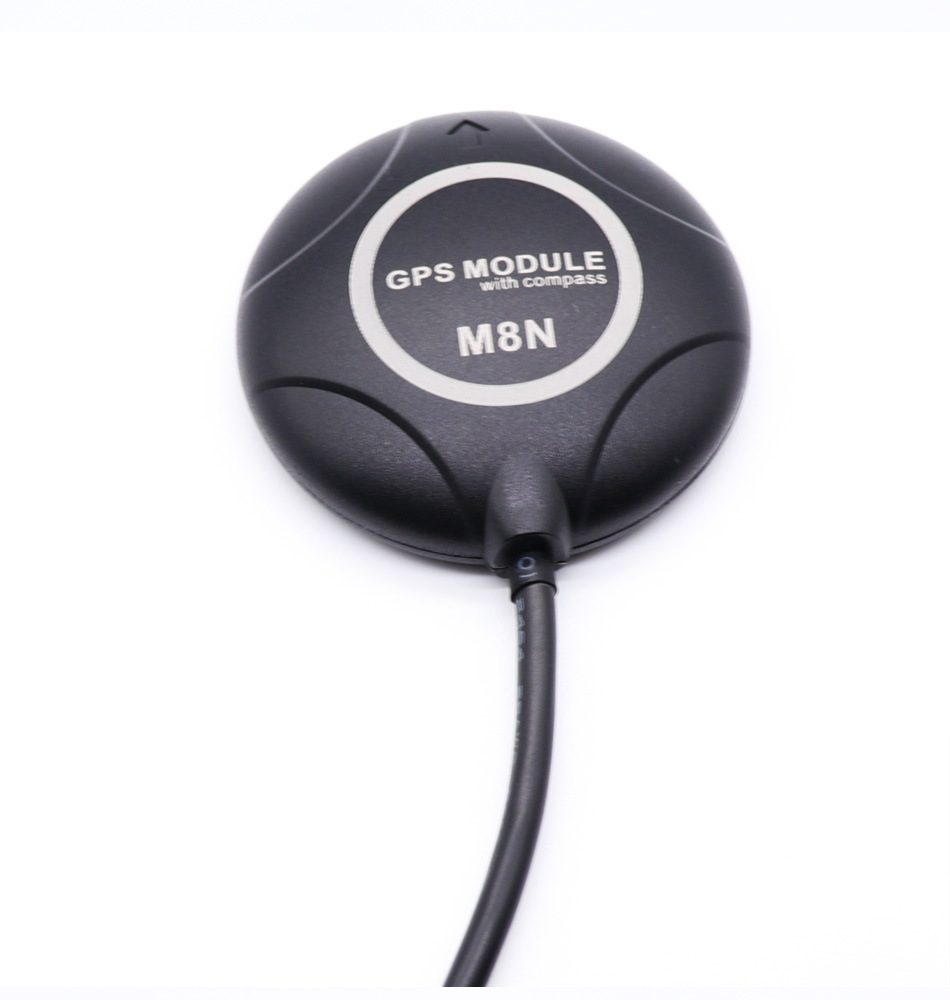

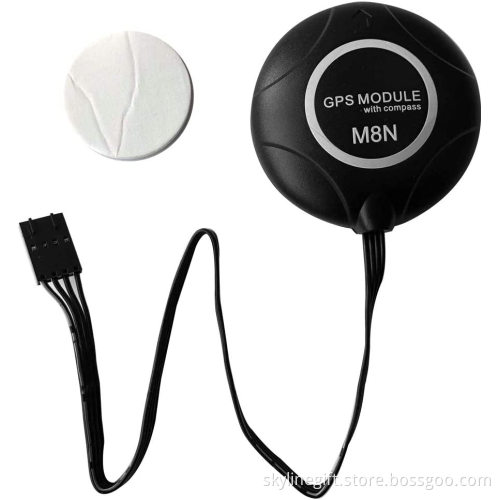

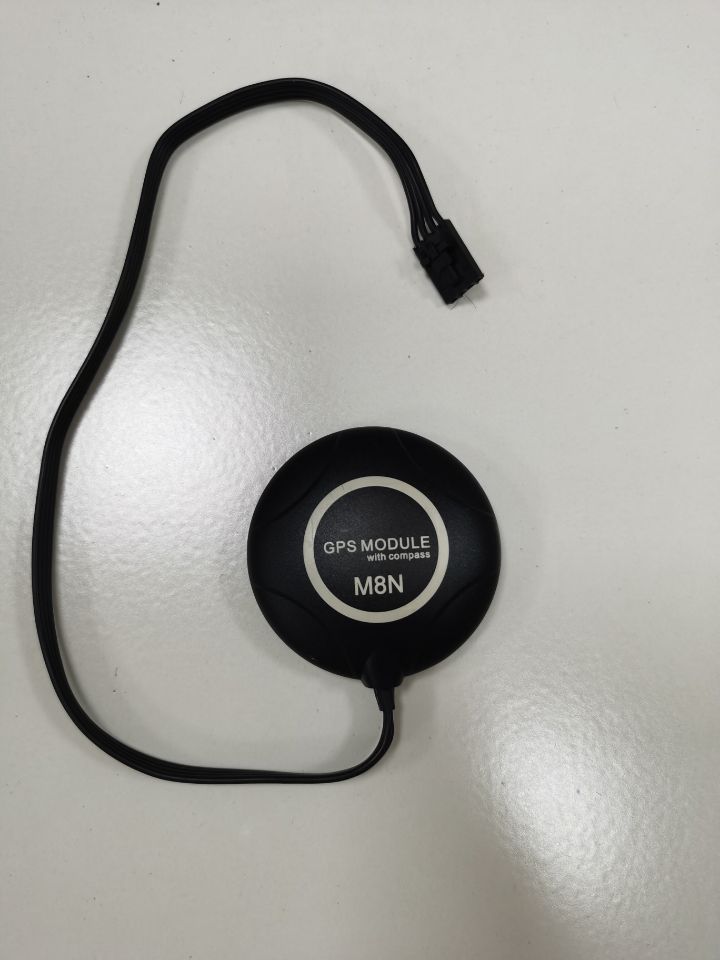

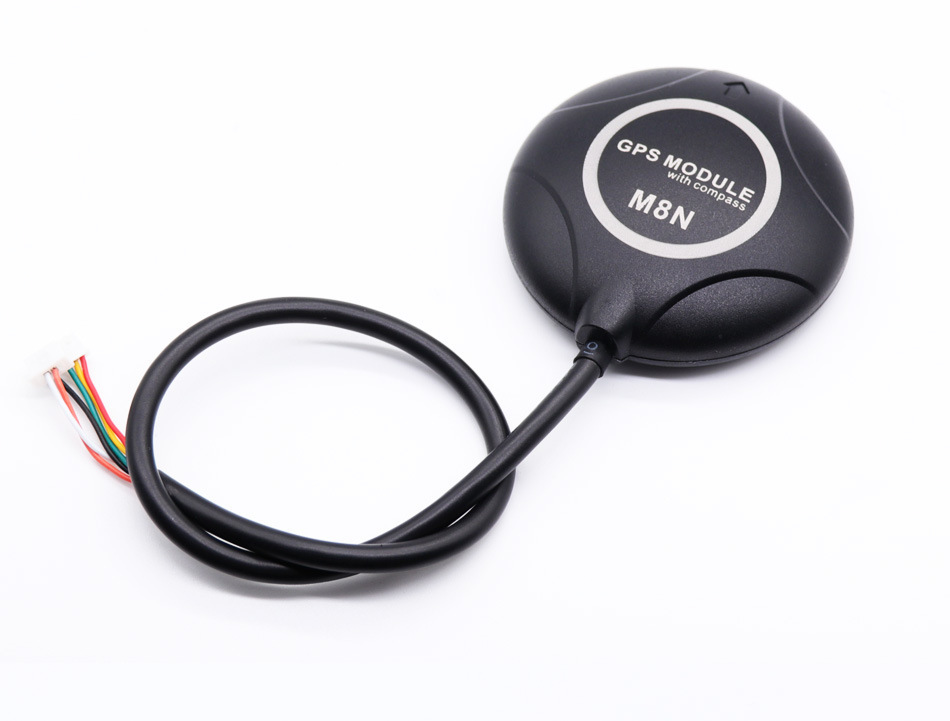

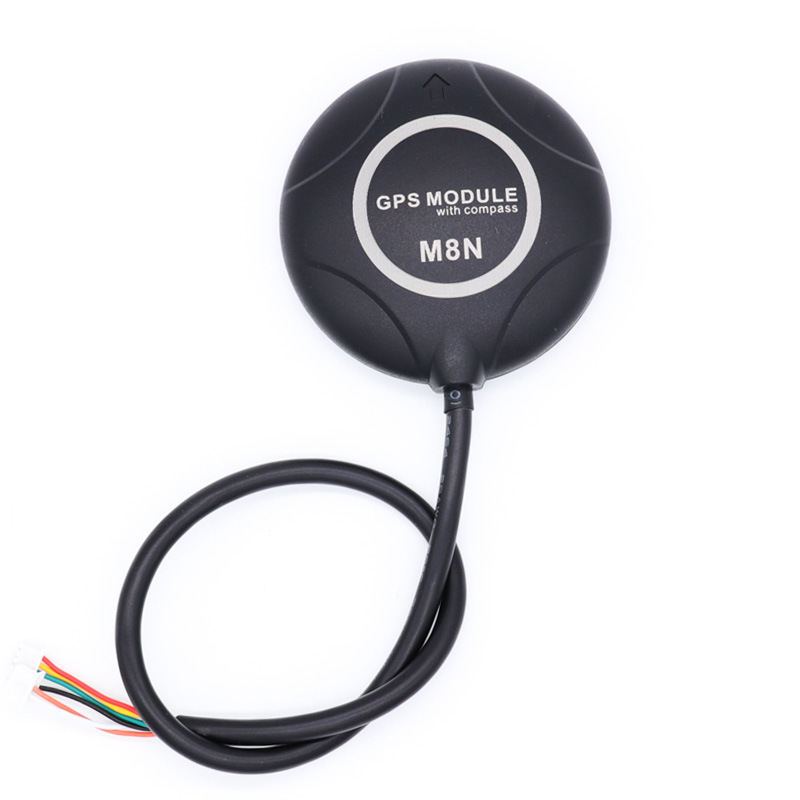

M8N GPS for DJI naza lite With Compass RC Quadcopter Parts

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,T/T

Product Description

Name:GPS For DJI naza lite	for naza lite	Hot starts:-156 dBm
Cold starts:-148 dBm	Reacquisition:1.5s	Aided starts:2s

M8N GPS Module:

GPS Chip parameters:

Receiver type 72-channel M8 engine

GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1

SBAS L1 C/A: WAAS, EGNOS, MSAS

Galileo-ready E1B/C (M8N)

Nav. update rate1 Single GNSS: up to 18 HZ

Concurrent GNSS: up to 10 Hz

Position accuracy2 2.0 m CEP

Acquisition2 Cold starts: 26 s

Aided starts: 2 s

Reacquisition: 1.5 s

Sensitivity2 Tracking & Nav: –167 dBm

Cold starts: –148 dBm

Hot starts: –156 dBm

Assistance AssistNow GNSS Online

AssistNow GNSS Offline (up to 35 days)3

AssistNow Autonomous (up to 6 days)

OMA SUPL & 3GPP compliant

Oscillator TCXO (M8N/Q),

Crystal (M8M)

RTC crystal Built-In

Noise figure On-chip LNA (M8M). Extra LNA for

lowest noise figure (M8N/Q)

Anti jamming Active CW detection and removal. Extra

onboard SAW band pass filter (M8N/Q)

Supported antennas Active and passive

Odometer Travelled distance

Data-logger For position, velocity, and time (M8N)

M8N GPS for DJI naza lite With Compass RC Quadcopter Parts
