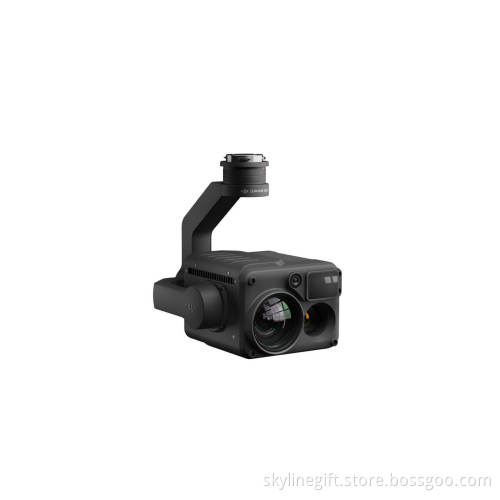

DJI ZENMUSE H20T Gimbal Camera with 20 MP Zoom Camera Radiometric Thermal Camera for M300 RTK Drone

DJI ZENMUSE H20T Gimbal Camera with 20 MP Zoom Camera Radiometric Thermal Camera for M300 RTK Drone

$6350.00 - $6800.00/piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	5 Piece/Pieces per Week
Payment Type:	Western Union,T/T,Alipay
Port:	shenzhen

Product Description

DJI ZENMUSE H20T Gimbal camera with 20 MP Zoom Camera
Radiometric Thermal Camera for M300 RTK Drone

Product Description

DJI ZENMUSE H20T Gimbal Camera with 20 MP Zoom Camera Radiometric Thermal Camera for M300 RTK Drone

SPECS:

General
Weight	Zenmuse H20: 678±5 g Zenmuse H20T: 828±5 g
Dimensions	Zenmuse H20: 150×114×151 mm Zenmuse H20T: 167×135×161 mm
Ingress Protection Rating	IP44
Operating Temperature	-20° to 50° C (Temperature Measurement is only available between -10° to 50° C)
Storage Temperature	-20° to 60° C
Supported Aircraft	Matrice 300 RTK
Laser Safety	Class 1M (IEC 60825-1:2014)
Gimbal
Angular Vibration Range	±0.01°
Mount	Detachable
Controllable Range	Pitch: -120° to +30° ;Yaw: ±320°
Mechanical Range	Pitch: -132.5° to +42.5° ;Yaw: ±330° ;Roll: -90° to +60°
Zoom Camera
Sensor	1/1.7" CMOS, 20 MP

Lens	DFOV: 66.6°-4°;Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm);Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene);Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)
Focus Mode	MF/AF-C/AF-S
Exposure Mode	Auto, Manual
Exposure Compensation	±3.0 (1/3 increments)
Metering Mode	Spot metering, Center-weighted metering
AE LOCK	Supported
Electronic Shutter Speed	1 ~ 1/8000 s
ISO Range	Video: 100 - 25600;Photo: 100 - 25600
Video Resolution	3840x2160@30fps, 1920x1080@30fps
Video Format	MP4
Video subtitles	Supported
Photo Size	5184 × 3888
Photo Format	JPEG
Wide Camera
Sensor	1/2.3" CMOS, 12 MP
Lens	DFOV: 82.9°; Focal length: 4.5 mm (equivalent: 24 mm);Aperture: f/2.8; Focus: 1 m to ∞
Exposure Mode	Auto
Exposure Compensation	±3.0 (1/3 increments)
Metering Mode	Spot metering, Center-weighted metering
AE LOCK	Supported
Shutter Speed	1 ~ 1/8000

ISO Range	Video: 100 - 25600 Photo: 100 - 25600
Video Resolution	1920×1080@30fps
Video Format	MP4
Video subtitles	Supported
Photo Size	4056 x 3040
Photo Format	JPEG
Thermal Camera (Zenmuse H20T)
Sensor	Uncooled VOx Microbolometer
Lens	DFOV: 40.6°;Focal length: 13.5 mm (equivalent: 58 mm);Aperture: f/1.0;Focus: 5 m to ∞
Digital Zoom	1x, 2x, 4x, 8x
Video Resolution	640×512 @ 30 Hz
Video Format	MP4
Image Resolution	640×512
Image Format	R-JPEG (16 bit)
Pixel Pitch	12 μm
Spectral Band	8-14 μm
Sensitivity (NETD)	≤50 mK @ f/1.0
Temperature Measurement Method	Spot Meter, Area Measurement

Scene Range	-40 °C to 150 °C (High Gain); -40 °C to 550 °C (Low Gain)
Temperature alert	Supported
FFC	Auto/ manual
Palette	White hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
Laser Rangefinder
Wave length	905 nm
Measurement range	3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)Measurement accuracy
± (0.2 m + D×0.15%)	D is the distance to a vertical surface
Features
Hybrid Optical Zoom	23×(DFOV:4°,EQV:556.2mm)
Max. Zoom	200×(DFOV:0.5°,EQV:4800mm)
One Click Capture	One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously
Point to Aim	Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest
High-Res Grid Photo	Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
Night Scene	Supported (zoom camera)
Timestamp	Including GPS, date, and time
Storage
Supported SD Card	MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)
Supported File Systems	FAT32 (≤ 32 GB), exFAT (> 32 GB)
Recommended Micro SD Cards	TOSHIBA EXCERIA PRO 32GB micro SD HC IIFAT32 (≤ 32 GB), exFAT (> 32 GB);SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I;TOSHIBA EXCERIA PRO 64GB micro SD XC II;SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I;SAMSUNG_EVO_128GB_micro SD 3 XC I;TOSHIBA EXCERIA M303E 32GB micro SD HC I;TOSHIBA EXCERIA M303E 64GB micro SD XC I;TOSHIBA EXCERIA M303E 64GB micro SD XC I;TOSHIBA EXCERIA M303 128GB micro SD XC I;SAMSUNG_EVO_64GB_micro SD 3 XC I

Overview
A quad-sensor solution that integrates a zoom camera, wide camera, a laser rangefinder, and a radiometric thermal camera, the H20T automates your missions with AI Spot-Check, High-Res Grid Photo, PinPoint, Smart Track, and accurate temperature measurement.

Highlights
20 MP Zoom Camera

12 MP Wide Camera

1200 m Laser Rangefinder

640×512 px Radiometric Thermal Camera

Packaging & Shipping

In The Box
Gimbal and Camera × 1

MicroSD Card (32GB) × 1

Storage Case × 1

Lens Cleaning Cloth × 1
