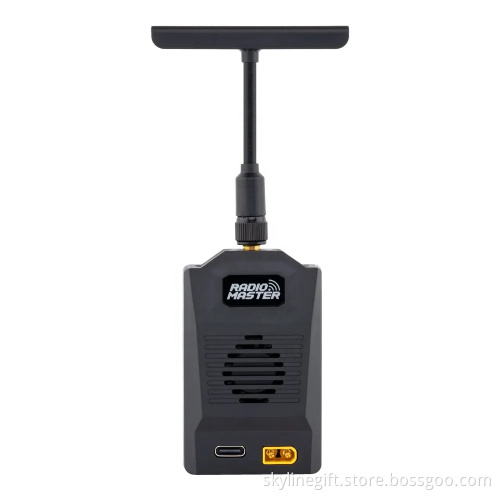

Radiomaster Ranger Nano 2.4Ghz 1W ExpressLRS Elrs High-Frequency Module RP1 RP2 Receiver For RadioMaster Zorro Remote Controller

Radiomaster Ranger Nano 2.4Ghz 1W ExpressLRS Elrs High-Frequency Module RP1 RP2 Receiver For RadioMaster Zorro Remote Controller

Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules. For more information on the Ranger series, please click here

Key Features
High efficiency cooling system
Wifi and Bluetooth support
Packet rates up to F-1000Hz
Up to 1Watt Power output
With the Nano connector, support radio.

Specification
Item: Ranger Nano Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes
XT30 Power supply voltage: DC 6V - 16.8V
Weight: 48g (with antenna) / 39g (without antenna)
Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)
