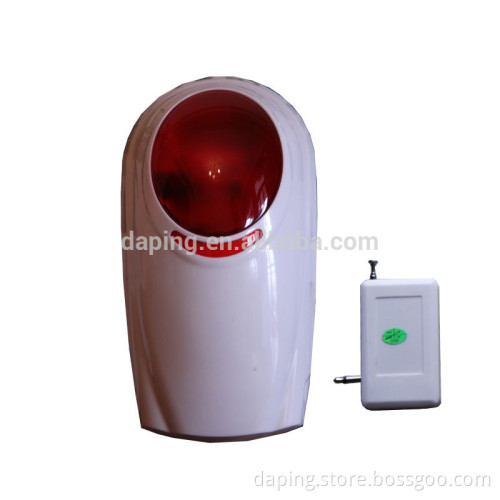

outdoor waterproof wireless siren with strobe light for Wireless GSM Auto Security Alarm System 433Mhz or 315Mhz











Specification:



1. Rated voltage: DC12V

2. Operating range: DC6-15V

3. Current work: 200MA (DC = 12V)

4. Standby current: 6MA

5. Operating temperature range: -20  +60 degree

6. Sound pressure range: 120DB

7. SIREN + / SIREN-trigger: flashing lights flash every 2 seconds at a red LED light, whistle and ring (with the duration of the signal to trigger the same)

8. 8. LED + / LED-trigger: a red LED flash every 3 seconds on average 1 (duration of the trigger signal with the same)

9. Tamper switch to trigger: flashing lights flash every 2 seconds at a red LED light, whistle and ring (3-minutes)

10. External power supply to be cut: flashing lights flash every 2 seconds,  red LED light, siren alarm (last3-minutes)

11. Battery back-up: 6V/600MA  fitted with battery back-up, the green LED lights on

12. Wireless models: A. Radio frequency: 433MHZ/315MHZ

B. Wireless distance: 1) open distance: 100 m

2)Indoor distance: 30-50 meters

13.Siren Size: 197 * 112 * 78MM





Power supply	DC12V 500mA
Power consumption	≤7mA
Alarm current	≤230mA
Emission frequency	433MHz/315MHz
Encoded mode	sc2262 IC / 4.7MΩ
Back-up battery	AAA 7.2V
Operating temperature	-20°C ~ +55°C
Humidity	40% ~ 80%

  Competitive Advantage:   * Professional experience and ability to accept and fulfill ODM/OEM orders. * Answer your enquiries, questions and emails in 24 hours. * Direct control on material, testing, quality, lead time ect. * Flexible Payment terms ranged at different quantity * One year warranty life for all detectors sold out from Lydian   Package Content:   1* wireless siren 1* adapter   (please note 315mhz or 433mhz when you place order. We`ll send you 433mhz if no requirements left.)
NOTE:Uaually,the wireless frequency of siren transimetter is oposite to the alarm system.
pls choose 433mhz siren if your alarm panel is in 315mhz;
if your alarm panel is in 433mhz,pls choose 315mhz wireless siren
