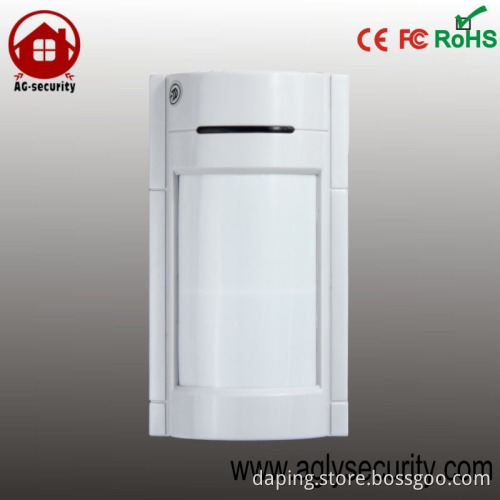

Pets immunity pir sensor infrared intruder detector for 25kgs animals

Specifications 1.Dual-sensors collecting signal

2.Pet immunity 35kg

3.SMT technology, high

4.EMI/RFI immunity

5.white light immunity

  Pets immunity pir sensor for  25kgs animals
  Features:   * Applying micro Controller.

* Double way dectector to collect signal, prevent any mistake of the signals.

* Prevent pets detected function.

* Full area auto temperature fullfill, super strong for avoiding mistake function.

* Pulse calculating control, convenient for different environment.

* Report police type with on or off options.

* LED ON & OFF options.

* Applying sticker technology, prevent EMI

    Technical Parameter:

Detecting Range	/angle 12m/110°
Working Voltage	DC9-16V
Operation Current	≤25mA
Operation Temperature	-10°C~+50°C
Mounting Type	wall mounted
Installation Height	2.2m
Pulse Count	1p or 2p optional
Pet Immunity	35KG
Relay Output	N.C./N.O. optional
Anti-tamper	Switch N.C.
Dimension(mm)	120*64*48.5
