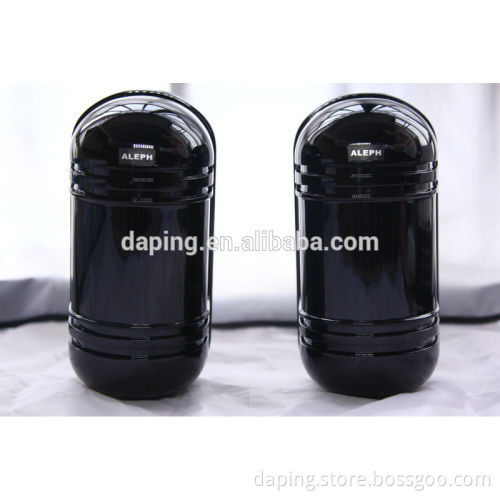

Wired/Wireless Photoelectric Dual Beams Detector Alarm for home safe
- Delivery Time:
- 1 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
2.LCD Displayer
3.Test and Hush Button
4.Household CO Alarm
high sensitivity infrared beam motion detector for outdoor or indoor DP-50 Description: 1.Adopt two aspheric surface lens, optical gathered, powerful,concentric. 2.Adopt unique base design, easy to install. 3.Light resistance reaches 50.00lux, built-in automatic adjustment light filtering system. avoid the influence from strong light or car light. 4.Totally-sealed rainproof, dustproof,etc integration structure design make it work in the bad environment properly. 5.Built-in Optical sight and particular conversion circuit design, easy to adjustment. 6.The beams intercept data cycle is adjustable, it can help the beams to be more flexible and with stronger adaptability. 7.The receiver with LED signal indicator.( Calibration more accurate.) 8.Horizontal/vertical Optical angle is easy to adjust and calibrate. 9. Step precision fine-tuning, so that calibration is more accurate 10.Photosensitive redundant reach up to 99%. 11.Lightning prevention circuit design details: 1)Built-in automatic adjustable strong light filtering system (up to 50, 000 LUX), Good performance against direct sunlight, completely against fluorescent and car light. 2)When faced with fog or inclement weather, the detector will automatically increase sensitivity (AGC circuit).
3)Unique optical design: The optical beams could penetrate through multilayer glass, strong resistance to external interference.
4)Integrative structure for waterproof, dustproof and mothproof
5)Adopted the large caliber non-sphere dual focus coaxial optic lens, and fresnel lens optical.
6)Strong function of RFI & EMI. technical parameters:
Model:DP-50 | Temperature:-25 Degrees Celsius~+55 Degrees Celsius |
Outdoor Aleart Distance:80m | Ralative Humidity:5%~95%RH(No condensation) |
Indoor Alert Distance:240m | Size:235*170*85mm |
Beams:2 beams | Tamper output :Contact output NC |
Detection Mode:2 beams simultaneously | Contact Rating:AC/DC30V,0.5Amax |
Lamp source :Infrared LED | Horizontal Fence Detector Adjust: 180Degree,(±90Degree) |
Sensor speed:50~700msec | Vertical Fence Detector Adjust:20 Degrees(±10 Degrees) |
Alert Output:Relay Contact Output NO or Nc | Other additional features: Light indication, OK indication, test terminal |
Contact Rating:AC/DC30V,0.5Amax | Case Material:ABS Resin |
Working Voltage:DC/12~18V | Weight:0.82kg/pair |
Working Current: more than 65mA | Gross Weight:0.95kg/Pair |
