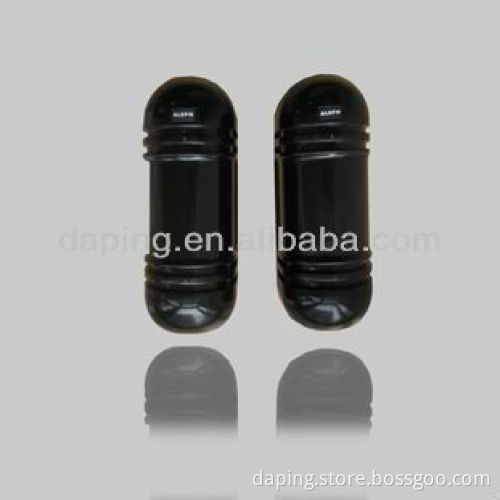

Wired Alarm ,Dual Beam Infrared Detector outdoor perimeter alarm

Specifications Wired Alarm System, Dual Beam Infrared Detector

Beams :2/3

Integrative structure for waterproof, dustproof and mothproof

Wired Alarm ,Dual Beam Infrared Detector Dual Beam Infrared Detector:
1. Anti strong light up to 50000LUX, built-in auto adjustment filtering system, avoid the interference strong light and car spotlight.
2. Unique optical design: The optical beams could penetrate through multilayer glass, strong resistance to external interference.
3. Integrative structure for waterproof, dustproof and mothproof
4. Strong function of RFI & EMI.
5. Using the multilevel LED, solve the trouble of interference
6. Detecting distance: Depending on different models ( please refer to the following form)
Welcome To Our English Websites Is https://www.alarm86.com

model			ABT-30	ABT-40	ABT-60	ABT-80	ABT-100
Detecting distance	outdoors		30m	40m	60m	80m	100m
	indoors		90m	120m	180m	240m	300m
The max distance			350m	460m	650m	900m	1100m
Beams number		2
Detecting way		Lights covered at the same time
Optical source		infrared LED
respond speed		50-700msec adjustable
Alarm output		Transmit point output 1c   contact capability: ACDC30V0.5AMax
power		DC10.5V~18V
Consumption current		65mAmax 65mAmax 65mAmax 70mAmax 70mAmax 85mAmax Operation temp. -25~55 Operation humidity   Dimension size   refer to the outer shape Anti-dismantle output transmit point 1b. contact capability: ACDC30V 0.5AMax Optical axis horizontal adjusting angle 180° (± 90° ) Optical axis vertical adjusting angle 20° ( ± 10° ) solution of bad weather like raining, fog, snowing and etc. Ultrasonic wave implement   Crust material ABS  resin tin metal weight 300g for receiver and300g for transmitter   Send your message to this supplier * From: * To: Ms. Vicky Zhu * Messages: Enter between 20 to 4,000 characters. Related Products RFID Tag GSM touch keypad home alarm system 433mhz 868mhz intelligent home gsm pstn alarm system with rechargeable motion sensor and wireless siren Wifi controlled smart switch with IR extender for home automation Android/IOS control wireless smart home automation Related Keywords Related Keywords dual beam infrared detector , infrared detector , dual beam pir sensor dual beam infrared detector , infrared detector , dual beam pir sensor You May Also Like You May Also Like RFID Tag GSM touch keypad home alarm system 433mhz 868mhz intelligent home gsm pstn alarm system with rechargeable motion sensor and wireless siren Wifi controlled smart switch with IR extender for home automation Android/IOS control wireless smart home automation IOS/Ipad/Android/Windows control smart home wifi remote controlled power light switch 220v Related Products Multi-Beam Infrared Fence Sensor security system for home safe Double beams 433mhz Solar power driveway passive infrared beam detector for home security alarm Wired/Wireless Photoelectric Dual Beams Detector Alarm for home safe Double beams solar powered wireless 100m active infrared beams perimeter protection detector Outdoor Solar dual beam detectors for our home alarm Product Categories New product(18) Home alarm system(157) PSTN alarm system(31) Gsm alarm system(32) WiFi &GSM alarm system(32) GSM & PSTN security alarm(30) Other(32) Smart Home(31) Smoke Alarms(145) Dual-voltage sensors(22) Wire Smoke Detector(23) Stand Alone Smoke Alarms(32) Optical (photo-electric) smoke detecto(14) Ionisation (ionization) smoke detector(11) Interconnected Smoke Alarms(11) Other(32) CO Carbon Monoxide Detector(32) 2 in 1 Alarm(23) Smoke & Co detector(5) Smoke & Heat Detector(6) Other(12) Gas Detector(32) Fire Alarm Control Panel(16) Cameras(83) DVR camera(29) CCTV camera(19) IP camera(31) Other(4) Alarm accessories(230) Magnetic Door/Window Contact(30) Infrared Beam Detector(19) Water Leak Detector(13) Emergency Buttons(29) remote control(29) wireless alarm keypad(16) Sirens(32) PIR motion detector(31) Other(31) All products(32) Ungrouped(1)
